Windows 10: 2.5G Ethernet Networking is Definitely Worthwhile

Just built a new PC that has a 2.5G Ethernet adapter built in. I wanted to do some testing to see if I would really benefit from switching over my other machines to 2.5G Ethernet especially now that cheap 2.5G switches have just become available.

I started by picking up a 2.5G USB-C adapter for $20 from Amazon. I connected the new computer to my laptop using that adapter and directly connected it to my desktop machine with no switch. I definitely saw some huge performance improvements. So, I took the dive. I picked up an 8 port 2.5G switch from TrendNet (TP-Link also has one and both companies also make 5 port 2.5 G switches). I upgraded my other machines to 2.5G Ethernet adapters for $23 each.

So here are the results:

About the best speed you can get over a gigabit link is 113MB/Sec even if you are copying data from an SSD on one system to an SSD on another system. With the 2.5G Ethernet, I'm getting a dead stable and constant 280MB/Sec so that's a huge improvement.

That part was not a particularly large surprise, but what did surprise me was copying from an SSD on one system to a spinning HDD on the other system. The HDD in my system is not even a particularly fast drive but I was was continually exceeding the 113MB that gigabit Ethernet can do. The speed was bouncing up and down a lot but I was seeing speeds of between 140 to 190MB/Sec. So even with a "slow" HDD, when transferring data between machines gigabit Ethernet is the bottleneck. I would have thought that the HDD would be the bottleneck but now I know that gigabit Ethernet cannot even keep up with a slow HDD.

Bottom line: If you transfer a lot of data over the network, even between HDDs and not SSDs, the upgrade to 2.5G is worth the while and has now become very cost effective.

Components I tested with:

Built on the motherboard of my ASUS MB: Intel 1225-V 2.5G Ethernet
PCIe Adapters added to other systems: Cudy 2.5Gbps PCI Express Network Adapter, Based op Realtek RTL8125 ($22.99 on Amazon)
CableCreation USB-C 3.1 2.5G Ethernet adapter ($19.99 on Amazon). Great for laptop our temp connections to system without a 2.5G Ethernet adapter installed.
TRENDnet 8 port 2.5G switch, model TEG-S380 ($179.99 on Amazon)

:)

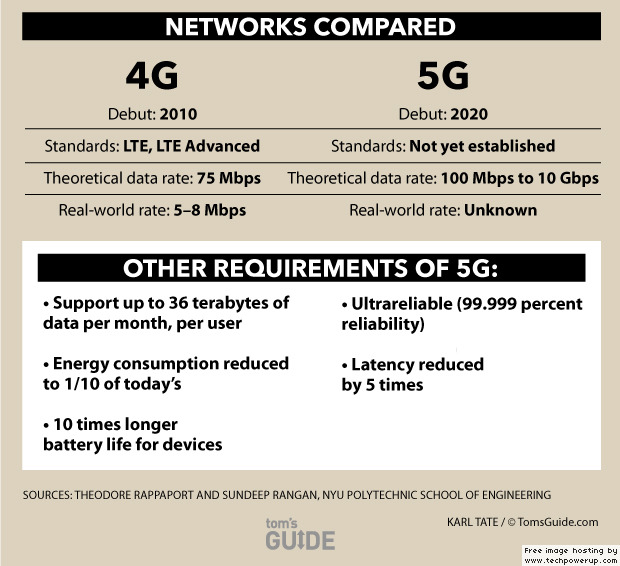

5G Networking: The Definitive Guide
