Windows 10: A disk volume not found by Explorer but recognized in Disk Management

Volume Z is not recognized in Explorer. It was recognized normally in the recent past, but not any more.

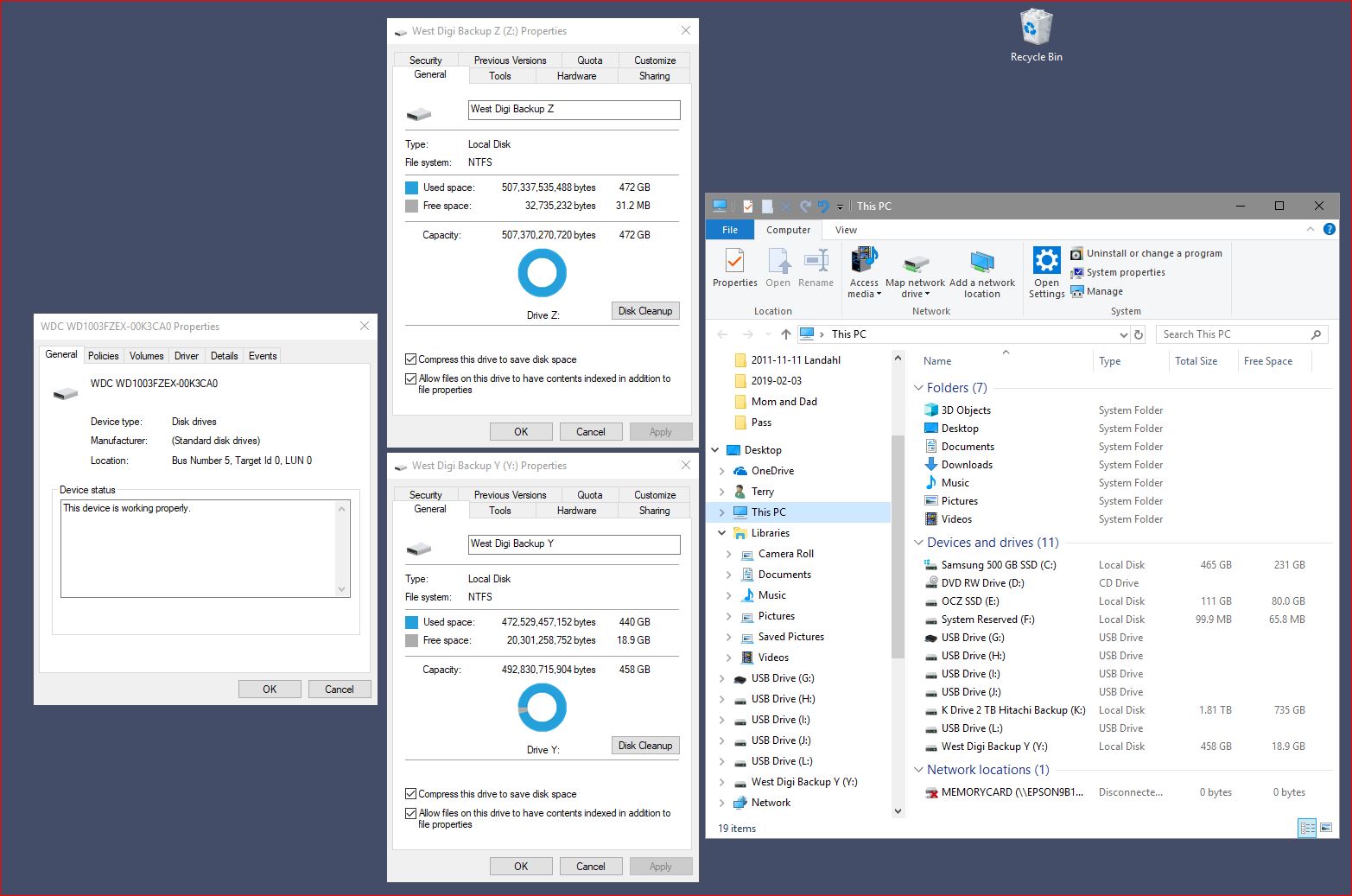

Y and Z are volumes in a Western Digital 1TB drive. If you look at the included Snips you can see the issue.


Thanks,

Terry





:)

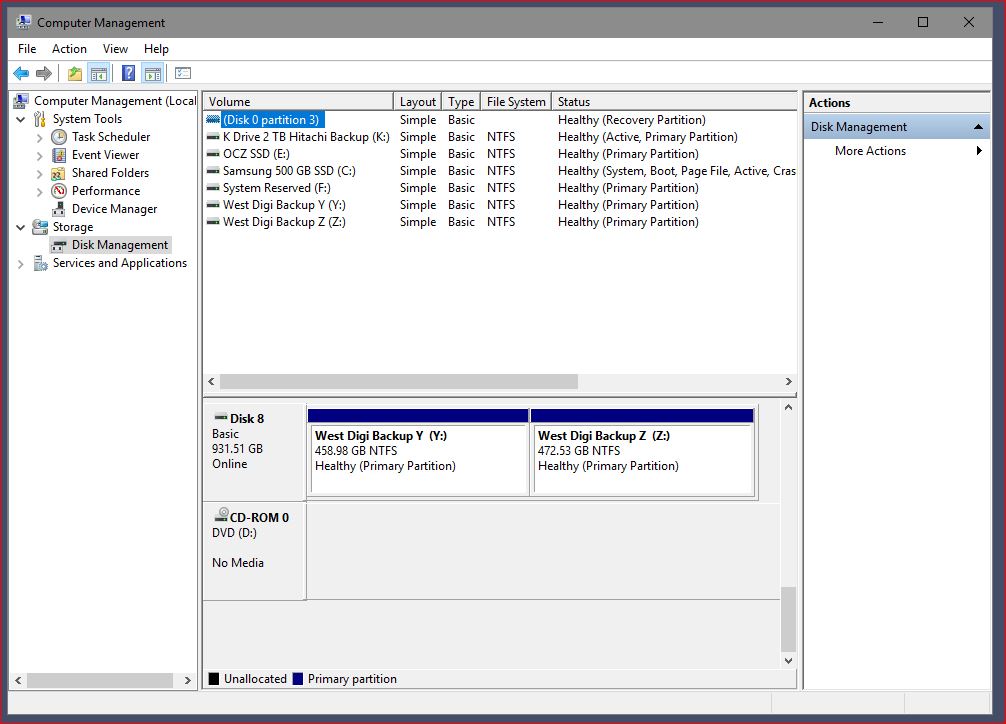

Disk Management

Hi Keith,

Thanks for providing the detail that was requested previously. Since the disk management screen that you saw is showing greyed out options, we suggest that you follow the steps below to change the partition type of your internal drive:

• Open Disk Management then right click the partition on the disk you want to covert and select Delete Volume.
• Once you complete the process you will see the whole disk shown as two separate unallocated spaces. Right-click the disk and select Convert to GPT disk.

After the conversion, you will be able to use the whole disk and then you can create new separate partitions.

We look forward to your response to our queries.



Disk management console view is not up-to-date

i dont know how to fix your disk management, but i can fix your partition problems...




open up Command Prompt with admin rights. (Right click, run as admin)


enter in
DISKPART
list disk

then find the Disk number for your Raid array... lets call it number 7 ( you can tell what disk is what by the total size)
type in

Select Disk 7
List Partition (will give you a list of all the partitions..)
Select Partition 1 (im assuming you only have 1 partition on Disk 7) repeat this step if you have more partitions.
ASSIGN


that should get the array up and running ready to use.


EDITED.

any problems, post back ^^


Still EDITING *Stick Out Tongue

side question, have you tried restarting the PC?



Extend Volume in disk managment not working

Hi,



Thank you for posting your query in Microsoft Community. Let me help you.

•
  Since when did the issue started appearing?

•
  Have you made any changes in settings prior to the issue?

•
  Do you receive any error code or error message on the screen?


I suggest you to follow the exact steps mentioned below and check if you are able to perform the action.

•
  Run Disk Management. Open Run Command (Windows button +R) a dialog box will open and type "diskmgmt.msc".

•
  In the Disk Management screen, just right-click on the partition that you want to shrink, and select “Extend Volume” from the menu

•
  Locate your system partition — that’s probably the C: partition. Right-click on it and select “Shrink Volume.” If you have multiple partitions on your hard drive, you could also choose to resize a different partition to free up
  space.


Check if it helps.



Please reply with the details and updated status of the issue. We will be happy to assist you further.
