Windows 10: A single partitioned HDD shows as 2 separate disks in Disk Management. How can I correct...

Dear Community,

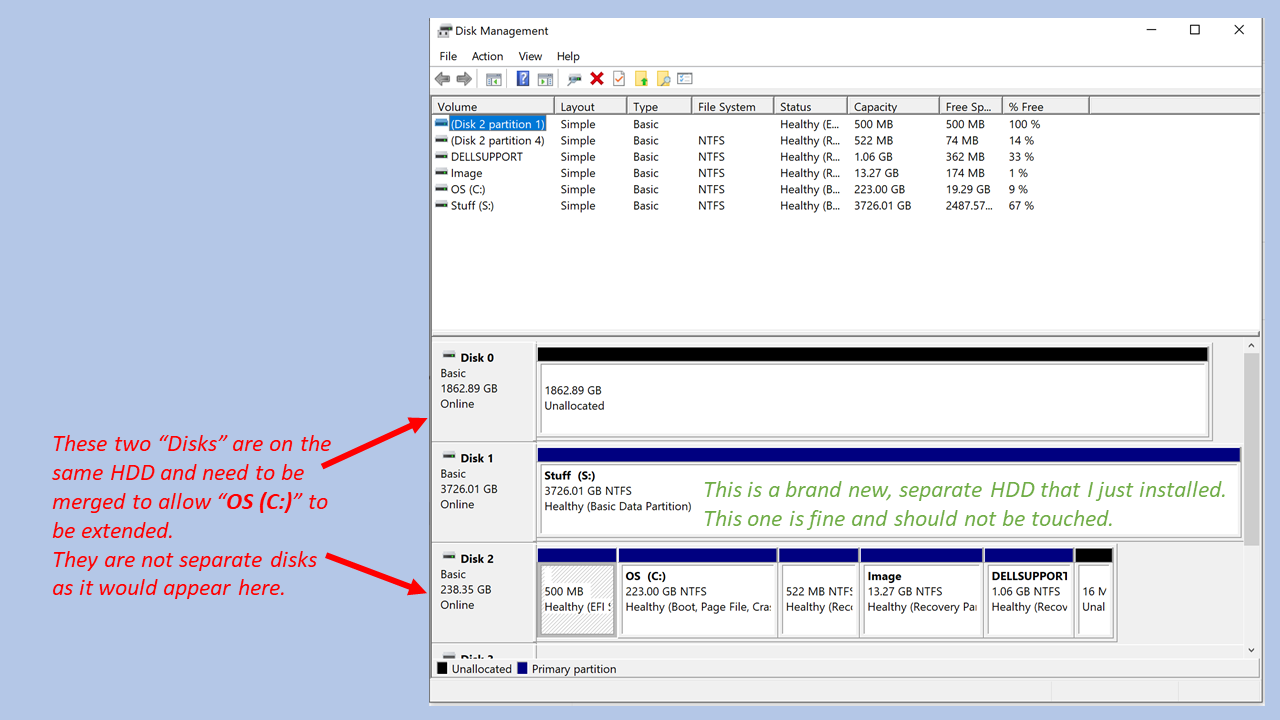

A single partitioned HDD in my PC shows as 2 separate disks in the Disk Management application. I don't think that it should. Referring to the lower half of my attached screenshot, the space shown as Disk 0 and Disk 2 are both on the same physical HDD.


C: drive has run out of space. I've moved content from what was D: drive Disk 0 and deleted that Volume so that I can extend C: drive. But the Disk Management application shows these as being on separate drives despite them actually being on the same HDD.


Windows 10 is installed on Disk 2 as C: drive. How do I change Disk 2 to be called Disk 0, then merge, and allocate the 1,862 GB unallocated space formerly known as D: drive to C: Drive? I'm happy to reinstall the OS if that's what it takes to fix this.


I'd be grateful for any help that the Microsoft Community can afford me. Thank you.


PS: Don't be distracted by S: drive; this is a brand new HDD that became the destination for all the content that I removed from the old D: drive. When I unplug it "Disk 2" takes its number as "Disk 1".





:)



Disk Management

Hi Keith,

Thanks for providing the detail that was requested previously. Since the disk management screen that you saw is showing greyed out options, we suggest that you follow the steps below to change the partition type of your internal drive:

• Open Disk Management then right click the partition on the disk you want to covert and select Delete Volume.
• Once you complete the process you will see the whole disk shown as two separate unallocated spaces. Right-click the disk and select Convert to GPT disk.

After the conversion, you will be able to use the whole disk and then you can create new separate partitions.

We look forward to your response to our queries.



Disk management console view is not up-to-date

i dont know how to fix your disk management, but i can fix your partition problems...




open up Command Prompt with admin rights. (Right click, run as admin)


enter in
DISKPART
list disk

then find the Disk number for your Raid array... lets call it number 7 ( you can tell what disk is what by the total size)
type in

Select Disk 7
List Partition (will give you a list of all the partitions..)
Select Partition 1 (im assuming you only have 1 partition on Disk 7) repeat this step if you have more partitions.
ASSIGN


that should get the array up and running ready to use.


EDITED.

any problems, post back ^^


Still EDITING *Stick Out Tongue

side question, have you tried restarting the PC?



W7 Hard drive partition issue

to get rid of that 100 meg windows partition that setup creates for you on a new install on a blank hdd:

- press shift+f10 when on the partition management screen in setup <-- this opens a command prompt
- diskpart <-- start the windows command line partition management tool
- list disk <--- list the installed hdds in this computer for the next step
- select disk 0 <- might have to replace 0 with the number of the correct disk
- clean <-- this will erase all data on the disk you selected one step up- dont use the wrong disk!
- create partition primary <- creates a primary partition taking up all space on the drive, adjust the command if necessary
- exit, exit to exit diskpart and the command prompt
- click refresh in partition manager and select your newly created partition and install to that
