Windows 10: Abnormal Shutdown during Hibernate

Dear all,I hope you may help me in this situation.I have a fairly recent Dell XPS 9500, i7-10750H CPU @ 2.60GHz, 16,0 GB, 4k touch display.I am on the Dev insider ring, and currently on the last 21634 release.I am pretty satisfied with the system even if I have to admit the last two/three releases slightly increased the system latencies, but it's another story but since a month I have issues with suspension solved and hibernation unsolved.If the computer has to hibernate during suspension, or if I trigger the hibernation manually, it always experiences an "Abnormal Shutdown".This is the

:)



What may cause Abnormal Shutdown during hibernate?

Everytime the lid is closed and the laptop hibernates, the hibernate ends with an abnormal shutdown, when the lid is open.

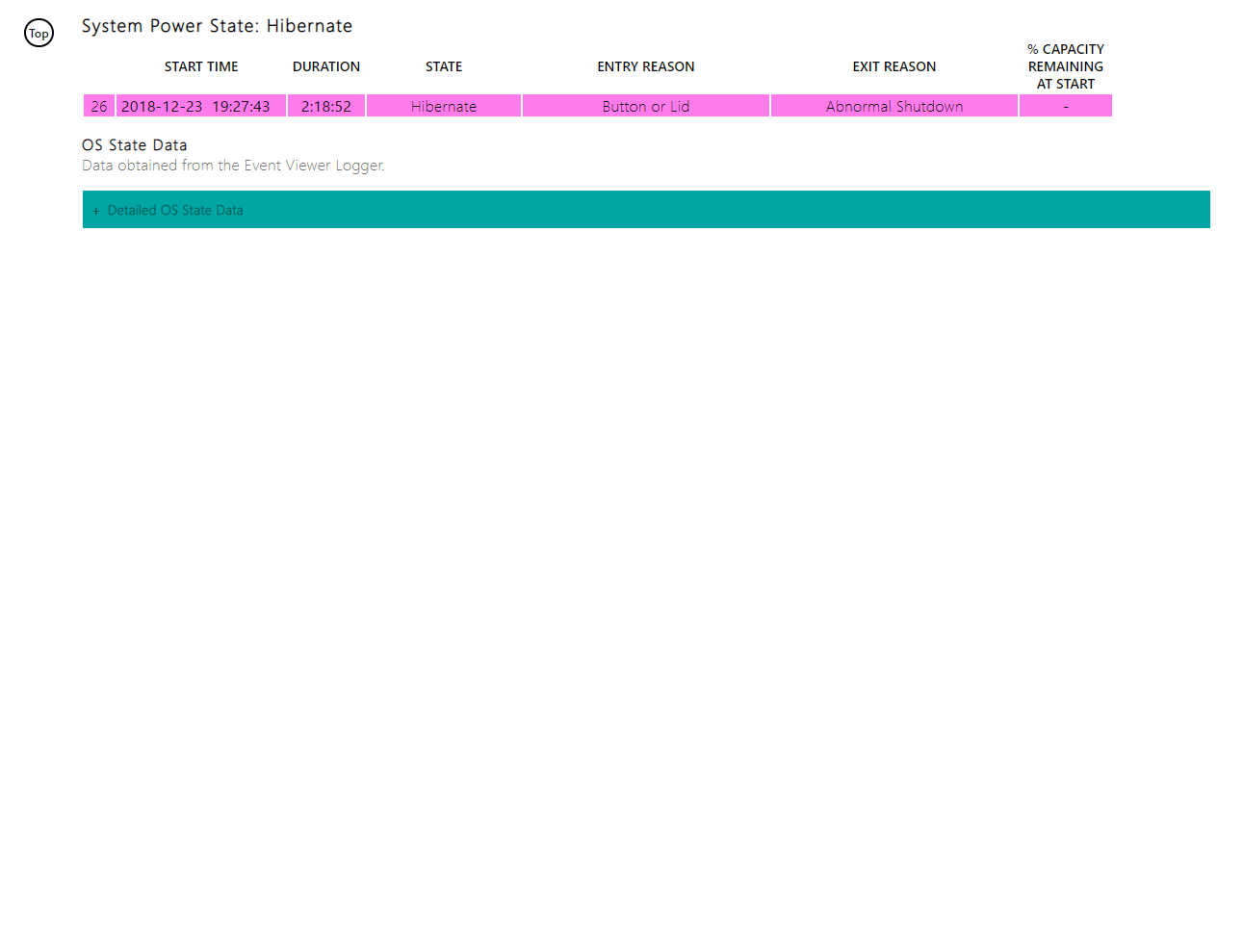

The figure is a part of the report generated by powercfg /sleepstudy.

It can be seen the exit reason is Abnormal Shutdown. and it occurs when the lid is open.

So i want to know what may cause abnormal shutdown when opening the lid.



Abnormal shutdowns with Fast Startup enabled

Thanks Sumit - No, as you say, it's an Intel: i5 (8th gen - 8250U) with Intel UHD 620 graphics, 8 GB RAM and an SSD. I'll have a try with Dell as you suggest. These abnormal shutdowns are definitely not random - they happen on almost all attempts at a
Fast Startup shutdown, though occasionally shutdown and subsequent startup do succeed. Oddly, full hibernate works correctly.



Desktop Shutdown and Standby/Hibernate Icons

I discovered some time ago a simple means of adding two desktop icons to cover Shutdown and Standby/Hibernate. I now use these icons all the time as it avoids using the Start procedure, which I never use at all unless I wish to Restart immediately after shutdown. Even then, I tend to use my desktop icons. Just close the browser, click the desktop icon and it is done.

On your desktop, right click the free space, then click new shortcut, you get a Wizard, copy/paste the command for the location type from one of the below commands (in this case, %windir%\System32\rundll32.exe powrprof.dll,SetSuspendState ). Then click Next. You are asked to give it a title - Standby, Hibernate or Shutdown, I suggest using "Standby/Hibernate", click Finish.

Shutdown: %windir%\System32\shutdown.exe -s
Reboot: %windir%\System32\shutdown.exe -r
Logoff: %windir%\System32\shutdown.exe -l
Standby: %windir%\System32\rundll32.exe powrprof.dll,SetSuspendState
Hibernate: %windir%\System32\rundll32.exe powrprof.dll,SetSuspendState Hibernate
I have listed Hibernate for reference only, as the Hibernate desktop icon does not work for systems reasons, Hibernate can only be achieved by manually using the Power Options properties panel.

Use CNTRL+C to copy and CNTRL+V to paste.

Hibernate is automatic if the Hibernate box is checked in the Power Options properties panel. If the box is not checked, then Standby is automatic. You have to select this box to give you the option you want.

Standby is more convenient if you are using the PC constantly, it is a quicker recovery, but has a power trickle. For long periods of absence, use Hibernate, it is much slower in recovering, but effectively shuts your computer down.

The Power options panel is found by Control Panel>Power Options>Hibernate.

The two desktop icons created can be changed by Right clicking the icon then Properties>Change icon>Browse>Windows 32>shell32dll>select icon>OK>Apply>OK
You now have two brand new icons on your desktop for Shutdown and Standby/Hibernate. It works a treat.

My icons are :-
