Windows 10: Adding a second SSD and making it the primary and boot drive

Unsure if this is the best place but I am trying to figure out how to best configure my storage for my Laptop. It has 2 NVMe Slots.

•
  Originally came with 500GB drive


•
  Added my own 1TB WD drive to empty NVME Slot


•
  Very little data on the original drive, most are in one drive except system and a few apps

  •
    I don't mind wiping everything and starting from scratch I have a boot image and drivers on USB but I would like to avoid if possible

•
  Cloned 500gb drive to 1 TB drive

  •
    Looks like everything is identical except the system is still running off original


  •
    Half of 1TB drive is unallocated

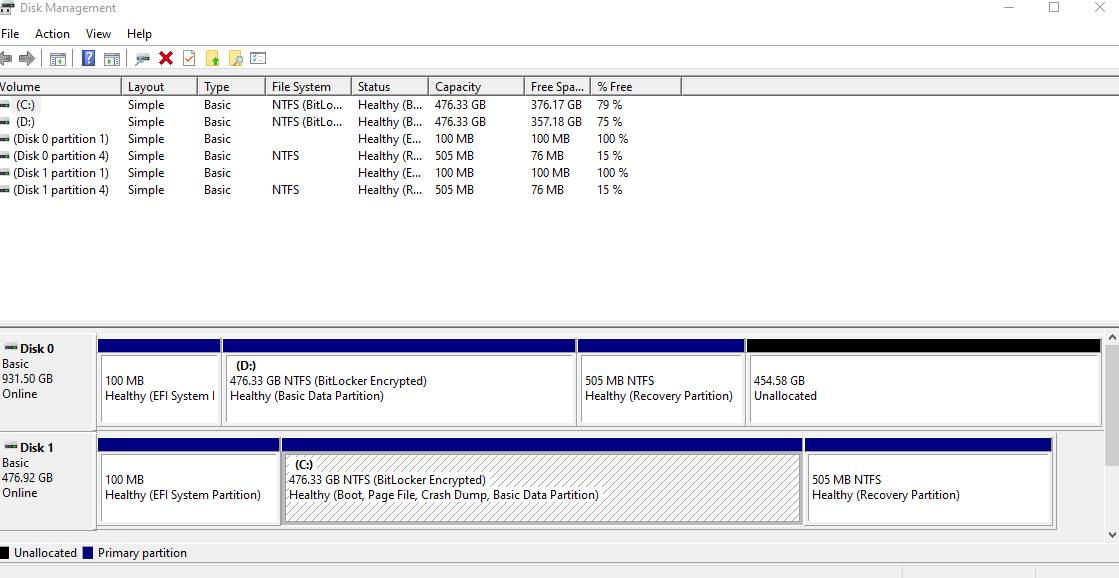

What I want is for everything to be on the new 1TB drive and have the laptop run off of that drive with the old drive empty and formatted for additional space if I run out on the new one. The issue I am running into is it tells me windows is still on the original drive and I can't format it. I tried going into bios and "I think" I changed settings to boot off the new drive but I ran into the same issue. In theory, since the new drive is cloned should I just be able to run off that one and wipe the old one? Thanks in advance, I imagine this is a lot easier than I am making it. Here is a picture of the current Disk management.



It would be great if outside of the neccesary recovery partitions I just had one large C drive on Disk 0 and then one D Drive on Disk 1.

:)



Z Book BSOD with Second SSD Drive

Hi all

I have an issue with an HP Z Book. It is a new Generation 6 device and came with a pre-installed second SSD drive.

All worked fine until I tried to put our corporate image onto the primary OS SSD.

Firstly, the new OS installed onto the secondary SSD rather than the primary.

So I disconnected/removed the secondary, recreated the partition on the primary and loaded our stock OS.

The machine now works absolutely fine, as long as I do not try to re-introduce the second SSD drive.

If I reinstall this, the machine boots up OK for a second or two and then BSOD's.

Can anyone suggest the reason for this issue - the BSOD message reported a kernel error.

Any ideas on steps to take to resolve this?

Thanks

Phil



Z Book BSOD with Second SSD Drive

An alternative to consider is to disconnect the boot SSD and boot with just the second SSD (as if you were going to install on the second SSD)

Go through the process described previously and look at the Custom install screen to see if there are any partitions still visible. Delete any found on the SSD, as this is the second drive. Cancel the screen and reconnect the primary SSD and try boot again.



Z Book BSOD with Second SSD Drive
