Windows 10: After Failed update, and the fix, I now have 3 version to choose at boot up!

I had an automatic update to Windows 10 which ran for hours and never finished.

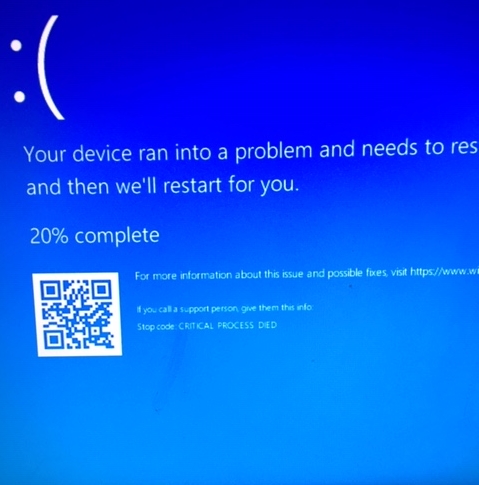

I tried restarting numerous times and always got the following screen,



I burned a dvd with windows media creation and booted successfully, ran diagnostics and after many tries, ended up loading new operating system after re-formatting the c drive.

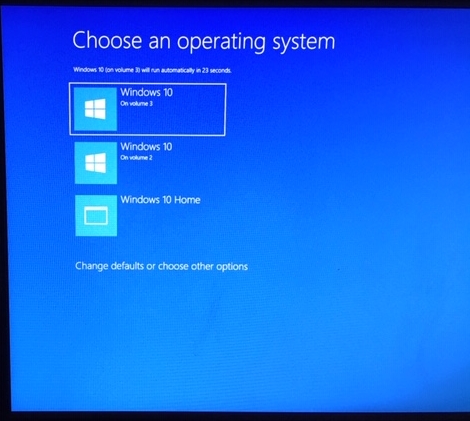

Now I have a working system but I get the following screen at every boot up:



The top selection is the only one that works, and works good.

The middle selection always results in first image above.

The lower selection results in a dark blue blank screen forever.

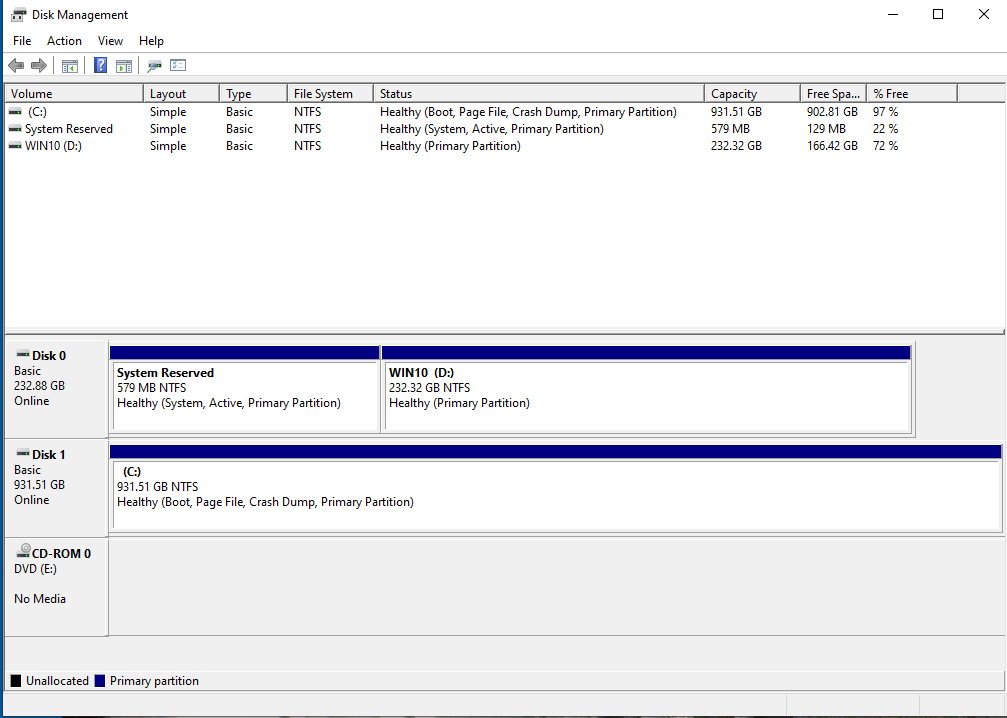

Question: How can I eliminate the above image from appearing and system always booting to the top selection. Maybe important info; Disk 0 is a ssd, disk 1 is a 1 TB traditional hard drive. Below is a image of disk Management for this unit



:)



KB4025339 Fails Install 0x80070564

Thanks
I am trying Eagle 51's suggestions now. Windows Update troubleshooter found a bunch of errors and fixed all but one.The update is trying to download KB4025339 again. I'll see what happens. At step one troubleshooter finishes with one error unresolved "Potential Windows Update Database Error Detected-Not Fixed". Windows update stalled at 0%.

At step 2 same troubleshooter error. The KB finished a new download failed to install.
Did step 3 KB has downloaded but fails to install.

If Eagle's suggestion doesn't work I'll try EdTittel's suggestion

Tried bothe Eagle & Ed 's suggestions - do not work. Anyone else?

I have noticed that the latest update for my nvidia drivers has failed to update. Wondering about that!



HD 5870 Bios flash failed

mp3 player is in FAT / FAT32 format ?

Set Boot up first to the drive with hiren bootcd 10.4
Done...

the options will pop out after loading the disc choose

boot cd

then the list (step by step)

Next...
Dos....
USB Drivers....
Load USB Drivers with no386.....

Ask you load cd drivers. NO
Ask you load SCSI drivers. NO
Ask you anything NO.
USB driver list comes out. 8 Don't choose anything else.

type
C:\ (that should be your mp3 player if you did it right)

atiflash -i
to list the adapters

atiflash -p -f 0 ???.bin

done.........



GPU-Z 0.8.7 crash on launch

W1zzard is asking you to test so that he can suggest next steps and be able to troubleshoot the issue you have.
If another version works, it would be one set of steps.
If several other versions also fail/crash, then it would be another.
