Windows 10: After Windows 11 update monitors connected through Thunderbolt 4 hub are not recognized by PC.

Roman_leromango · Oct 25, 2022

Hello, thank you in advance for the possible solutions.I am running Razer Blade 15 2021 with i9-11900H, which has 2 Thunderbolt 4 ports. I have Razer's Thunderbolt 4 dock connected to one of the ports. Then, 1 monitor, mouse & keyboard are connected to the dock. This setup worked on Windows 10, but doesn't seem to work on Windows 11 due to an unknown issue. Monitors are not recognized by Windows 11, while TB4 dock and other peripherals are. I have attempted to reinstall drivers and ensured that Thunderbolt Control Center recognizes the Razer's dock. When the monitor is plugged directly int

:)

jonemiles · Oct 25, 2022

Win. 11 Thunderbolt 4 Hub not detected. FIX ?

Hi,

UPDATE: RETURNED HUB

We just purchased the HP OMEN 45L, i9-12900K, DDR4, RTX-3090 graphics, Win. 11 (best of everything offered Jan. 2022)

Windows 11 doesn't recognize Anker Apex Thunderbolt 4 Hub. (Shouldn't this be backwards compatible?)

I've read about people needing to turn on Thunderbolt in BIOS and other settings.

Any help from those who have experience with this would be great.

Thank you

Jon

LDSchiedel · Oct 25, 2022

Win. 11 Thunderbolt 4 Hub not detected. FIX ?

I have the same problem with a 2022 Zephyrus M16 and a Plugable thunderbolt 4/usb 4 hub.

My laptop works fine with thunderbolt3 devices (seems to be built-in to the usb4 driver).

But when i go into the thunderbolt control app, the about page shows blank for the thunderbolt driver.

installing the latest intel thunderbolt driver fails with an error code that google implies means the driver is already installed (but seems to be referring to the usb4 driver).

yet the usb4/thunderbolt 4 hub acts like its not being approved/activated.

no devices plugged into it are recognized or even completely powered (thunderbolt ssd just blinks)

Brink · Oct 25, 2022

Intel introduces Thunderbolt 4 universal cable connectivity

What’s New: Today, Intel revealed new details about Thunderbolt™ 4, the next generation of its universal cable connectivity solution, delivering increased minimum performance requirements, expanded capabilities and USB4 specification compliance. For the first time, Thunderbolt 4 will offer docks with up to four Thunderbolt ports and universal cables up to 2 meters in length. Intel’s upcoming mobile PC processors, code-named “Tiger Lake,” will be the first to integrate Thunderbolt 4. Intel also announced the Thunderbolt 4 controller 8000 series, compatible with the hundreds of millions of Thunderbolt 3 PCs and accessories already available. Thunderbolt 4 developer kits and certification testing are now available.

In July 2020, Intel announces the Thunderbolt 4 controller 8000 series, which includes JHL8540 and JHL8340 host controllers for computer makers and JHL8440 device controller for accessory makers. Thunderbolt 4 developer kits and certification testing are available. (Credit: Intel Corporation)

“Thunderbolt provides consumers with a leading connectivity standard across a range of devices, helping to advance computing experiences and delivering on the promise of USB-C with simplicity, performance and reliability. The arrival of Thunderbolt 4 underscores how Intel is advancing the PC ecosystem toward truly universal connectivity solutions.”
–Jason Ziller, Intel general manager of the Client Connectivity Division
Why It Matters: Thunderbolt products deliver a consistent, industry-leading set of capabilities for connecting computers to data, video and power with the simplicity of just one USB Type-C port. Connect to powerful Thunderbolt docks, displays, fast storage or any USB accessory for a clutter-free workspace. To ensure a consistent best-in-class1 experience and ease of use across a wide range of product types and manufacturers, Intel works closely with its ecosystem of computer, accessory and cable partners to employ mandatory certification for all Thunderbolt products.

“We expect Thunderbolt 4 products to be an inflection point for accessory makers who depend on PCs and Macs to offer an industry-leading set of product capabilities for a consistent user experience. The advancements in Thunderbolt 4 will help Kensington redefine the modern workspace of the future,” said Ben Thacker, vice president and general manager at Kensington.

“The new capabilities and minimum requirements of Thunderbolt 4 will provide great experiences and increased productivity that our IT customers and end users require,” said Jerry Paradise, vice president, Commercial Portfolio, Lenovo PC & Smart Devices. “Lenovo is excited to work with Intel to expand our support of Thunderbolt with the introduction of Thunderbolt 4 PCs and the expanding portfolio of Thunderbolt accessories.”

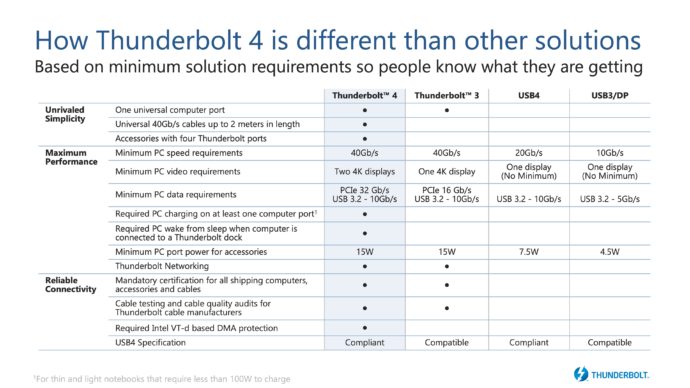

What It Delivers: Thunderbolt 4 builds on the innovation of Thunderbolt 3 for a truly universal cable connectivity experience. Thunderbolt 4 always delivers 40 Gbps speeds and data, video and power over a single connection. It is the most comprehensive Thunderbolt specification yet with compliance across the broadest set of industry-standard specifications – including USB4, DisplayPort and PCI Express (PCIe) – and is fully compatible with prior generations of Thunderbolt and USB products. Thunderbolt 4 certification requirements include:

Double the minimum video and data requirements of Thunderbolt 3.

Video: Support for two 4K displays or one 8K display.

Data: PCIe at 32 Gbps for storage speeds up to 3,000 MBps.

Support for docks with up to four Thunderbolt 4 ports.

PC charging on at least one computer port2.

Wake your computer from sleep by touching the keyboard or mouse when connected to a Thunderbolt dock.

Required Intel VT-d-based direct memory access (DMA) protection that helps prevent physical DMA attacks. (Read more in the Thunderbolt Security Brief.)

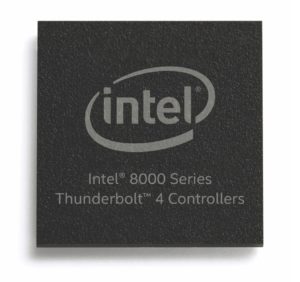

When It Is Available: Later this year, Intel expects to deliver the new Thunderbolt 4 controller 8000 series, including:

JHL8540 and JHL8340 host controllers for computer makers.

JHL8440 device controller for accessory makers.

The first computers and accessories with Thunderbolt 4 ports are also expected to be available this year, including laptops based on Intel’s innovation program code-named “Project Athena.”

More Context: Intel Takes Steps to Enable Thunderbolt 3 Everywhere, Releases Protocol | Thunderbolt 4 Press Deck | Thunderbolt Security Brief |
Click to expand...

Source: Introducing Thunderbolt 4: Universal Cable Connectivity for Everyone | Intel Newsroom
