Windows 10: Analysis and mitigation of L1 Terminal Fault (L1TF)

Brink · Aug 15, 2018

In January 2018, Microsoft released an advisory and security updates for a new class of hardware vulnerabilities involving speculative execution side channels (known as Spectre and Meltdown). In this blog post, we will provide a technical analysis of a new speculative execution side channel vulnerability known as L1 Terminal Fault (L1TF) which has been assigned CVE-2018-3615 (for SGX), CVE-2018-3620 (for operating systems and SMM), and CVE-2018-3646 (for virtualization). This vulnerability affects Intel Core processors and Intel Xeon processors.

This post is primarily geared toward security researchers and engineers who are interested in a technical analysis of L1TF and the mitigations that are relevant to it. If you are interested in more general guidance, please refer to Microsoft's security advisory for L1TF.

Please note that the information in this post is current as of the date of this post.

L1 Terminal Fault (L1TF) overview

We previously defined four categories of speculation primitives that can be used to create the conditions for speculative execution side channels. Each category provides a fundamental method for entering speculative execution along a non-architectural path, specifically: conditional branch misprediction, indirect branch misprediction, exception delivery or deferral, and memory access misprediction. L1TF belongs to the exception delivery or deferral category of speculation primitives (along with Meltdown and Lazy FP State Restore) as it deals with speculative (or out-of-order) execution related to logic that generates an architectural exception. In this post, we’ll provide a general summary of L1TF. For a more in-depth analysis, please refer to the advisory and whitepaper that Intel has published for this vulnerability.

L1TF arises due to a CPU optimization related to the handling of address translations when performing a page table walk. When translating a linear address, the CPU may encounter a terminal page fault which occurs when the paging structure entry for a virtual address is not present (Present bit is 0) or otherwise invalid. This will result in an exception, such as a page fault, or TSX transaction abort along the architectural path. However, before either of these occur, a CPU that is vulnerable to L1TF may initiate a read from the L1 data cache for the linear address being translated. For this speculative-only read, the page frame bits of the terminal (not present) page table entry are treated as a system physical address, even for guest page table entries. If the cache line for the physical address is present in the L1 data cache, then the data for that line may be forwarded on to dependent operations that may execute speculatively before retirement of the instruction that led to the terminal page fault. The behavior related to L1TF can occur for page table walks involving both conventional and extended page tables (the latter of which is used for virtualization).

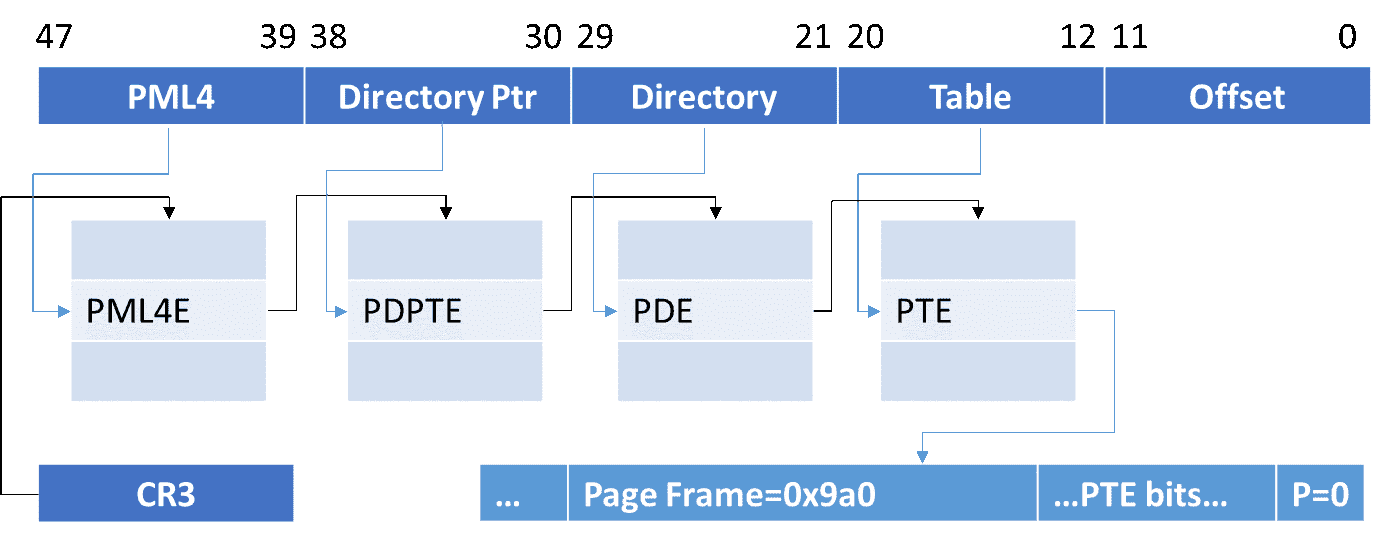

To illustrate how this might occur, it may help to consider the following simplified example. In this example, an attacker-controlled virtual machine (VM) has constructed a page table hierarchy within the VM with the goal of reading a desired system (host) physical address. The following diagram provides an example hierarchy for the virtual address 0x12345000 where the terminal page table entry is not present but contains a page frame of 0x9a0 as shown below:

After setting up this hierarchy, the VM could then attempt to read from system physical addresses within [0x9a0000, 0x9a1000) through an instruction sequence such as the following:

01: 4C0FB600 movzx r8,byte [rax] ; rax = 0x12345040
02: 49C1E00C shl r8,byte 0xc
03: 428B0402 mov eax,[rdx+r8] ; rdx = address of signal array

By executing these instructions within a TSX transaction or by handling the architectural page fault, the VM could attempt to induce a speculative load from the L1 data cache line associated with the system physical address 0x9a0040 (if present in the L1) and have the first byte of that cache line forwarded to an out-of-order load that uses this byte as an offset into a signal array. This would create the conditions for observing the byte value using a disclosure primitive such as FLUSH+RELOAD, thereby leading to the disclosure of information across a security boundary in the case where this system physical address has not been allocated to the VM.

While the scenario described above illustrates how L1TF can apply to inferring physical memory across a virtual machine boundary (where the VM has full control of the guest page tables), it is also possible for L1TF to be exploited in other scenarios. For example, a user mode application could attempt to use L1TF to read from physical addresses referred to by not present terminal page table entries within their own address space. In practice, it is common for operating systems to make use of the software bits in the not present page table entry format for storing metadata which could equate to valid physical page frames. This could allow a process to read physical memory not assigned to the process (or VM, in a virtualized scenario) or that is not intended to be accessible within the process (e.g. PAGE_NOACCESS memory on Windows)...
Click to expand...

Read more: https://blogs.technet.microsoft.com/...al-fault-l1tf/

:)
