Windows 10: Arm64 iso tried to boot on x64! I used Hyper v on a lenovo v15 82c5 with 1366x768(literally...

Discus and support Arm64 iso tried to boot on x64! I used Hyper v on a lenovo v15 82c5 with 1366x768(literally... in Windows 10 Ask Insider to solve the problem; When I tried to boot Windows 10 Iron build 20175 from... Discussion in 'Windows 10 Ask Insider' started by /u/NewHourSweaty4593, Sep 21, 2023.

  1. Arm64 iso tried to boot on x64! I used Hyper v on a lenovo v15 82c5 with 1366x768(literally...


    When I tried to boot Windows 10 Iron build 20175 from https://archive.org/details/10.0.20...6-amd-64fre-client-server-multisku-retail-en- and my name there is Web Chive. I accidentally downloaded the arm64 version without looking. After that I wanted to upgrade from an older build(19041.1) to that build when i booted up the vm it said CDBOOT: Cannot find bootmgr but I decided to continue. After that i wanted to install it manually and do clean install so i decide to put the missing files from a 2004 iso I created recently using MediaCreationTool.bat from https://github.com/AveYo/MediaCreationTool.bat and after that it showed boot logo and said winload.exe contains errors i tried booting on uefi but said that DVD did not have any boot-able disks. Until i realized that it was arm64 I downloaded the correct iso for that build and later on tried the next 2 builds 20180, 20185 and I have a 20185 vm as of writing this post.

    Other info of the system: Yes this laptop isn't high end and has a slow 1ghz cpu that can't run vmware which is unstably slow and virtualbox is slow and hyper v only is somewhat fast.)

    submitted by /u/NewHourSweaty4593
    [link] [comments]

    :)

    /u/NewHourSweaty4593, Sep 21, 2023
    #1
  2. ruiliu666 Win User

    Fail to use Hyper-v on arm64

    Hi, I have tried to load Ubuntu/CentOS x86 ISO, by Win x86_64 hyper-v, both of them work well on Win x86_64.

    But when I tried to load Ubuntu/CentOS arm64 ISO, by Win arm64 hyper-v, no one could be load correctly.

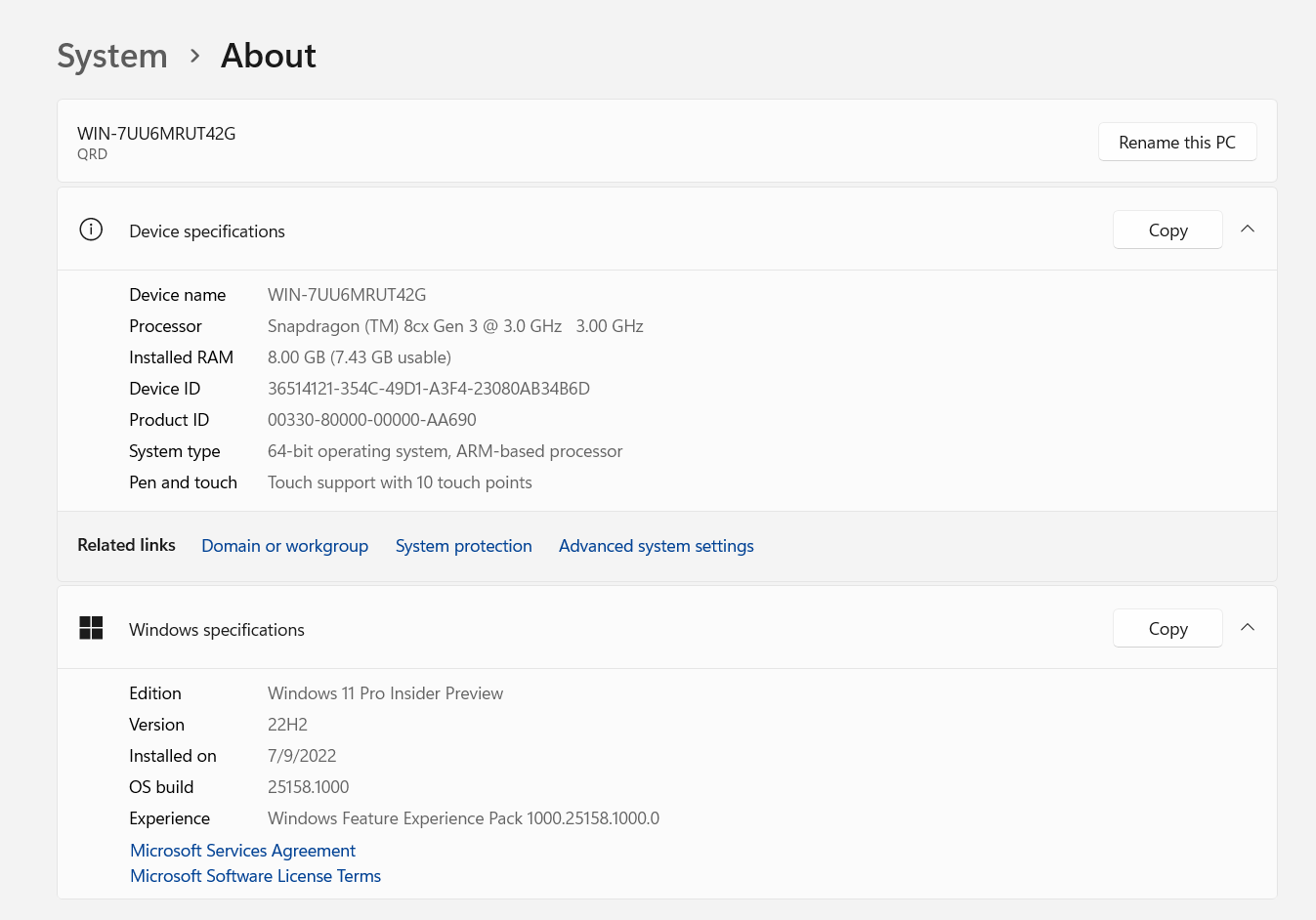

    My arm64 system:


    Arm64 iso tried to boot on x64! I used Hyper v on a lenovo v15 82c5 with 1366x768(literally... 8394dbde-f2cd-42f0-b219-882379b4cc76?upload=true.png

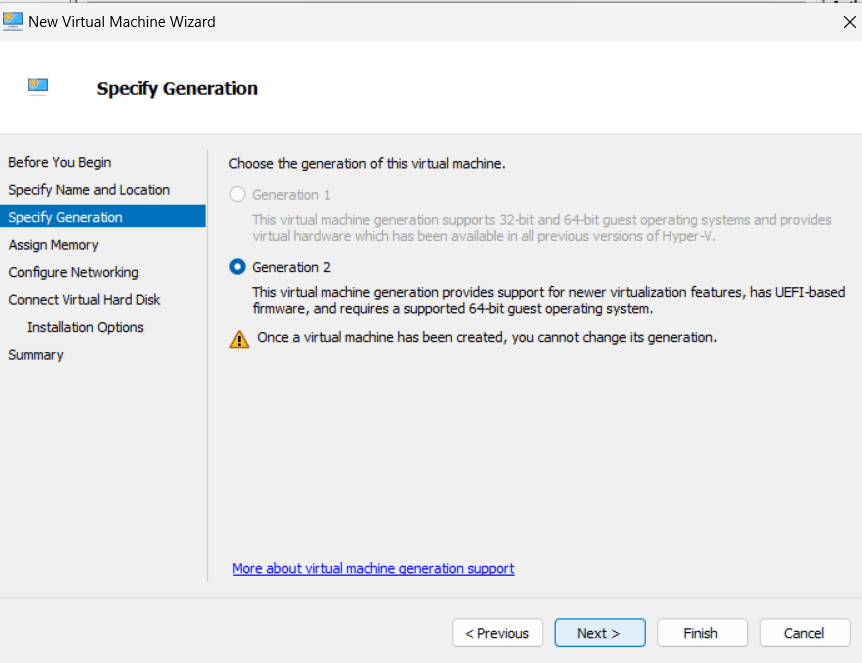

    When I created new hyper-v virtual machine, Generation1 is disabled and only Generation2 could be selected.(While on x86 hyper-v, I could choose Generation1)


    Arm64 iso tried to boot on x64! I used Hyper v on a lenovo v15 82c5 with 1366x768(literally... b5d406e5-07c2-4342-bf45-915d8711bb38?upload=true.png

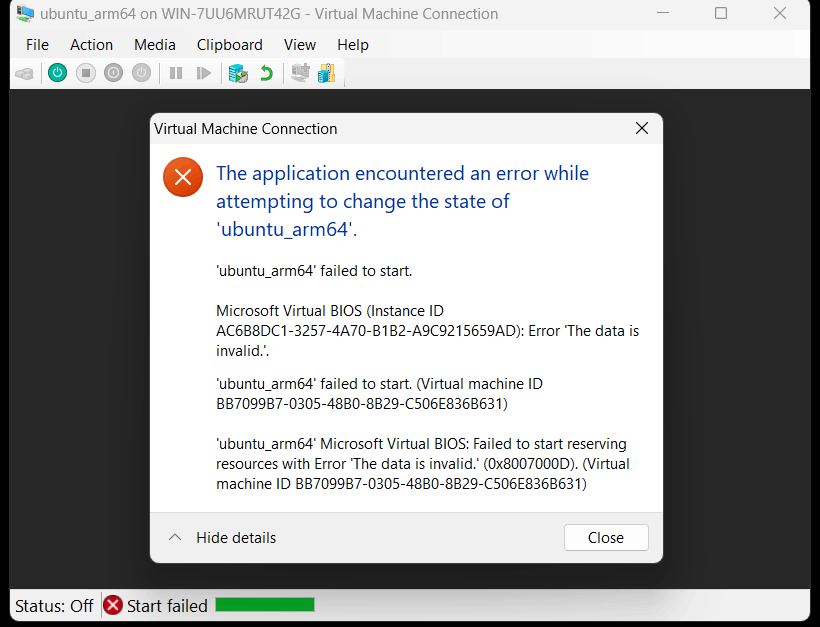

    When I tried to load https://cdimage.ubuntu.com/focal/daily-live/current/focal-desktop-arm64.iso ,it always popped up this error dialog.


    Arm64 iso tried to boot on x64! I used Hyper v on a lenovo v15 82c5 with 1366x768(literally... 063a8433-ef28-45c1-8cf3-7d81e2a51ed8?upload=true.png

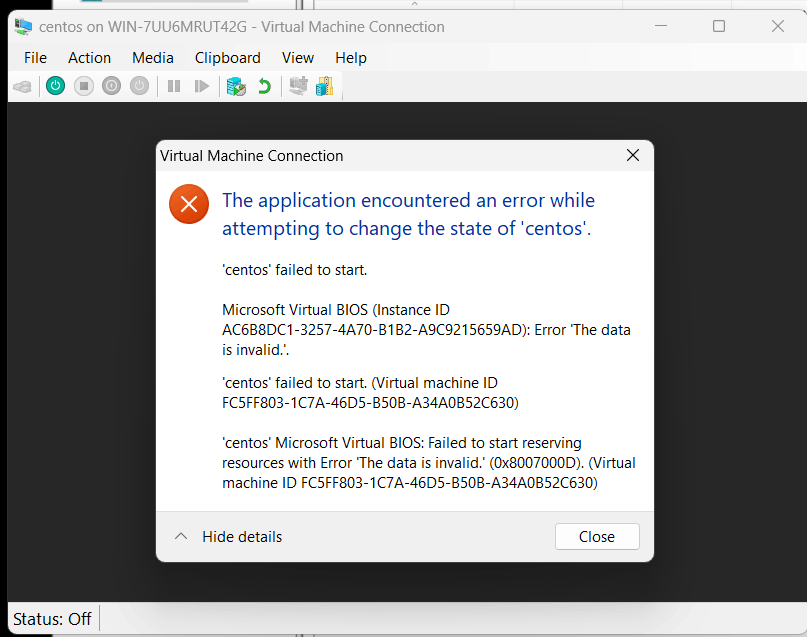

    When I tried to load centOS arm64 ISO from CentOS Mirrors List ,it always popped up this error dialog.


    Arm64 iso tried to boot on x64! I used Hyper v on a lenovo v15 82c5 with 1366x768(literally... 386b41c0-dcac-4327-be22-eb135b8480e7?upload=true.png


    1. Does hyper-v arm64 supports arm64 ISO now?

    2. If yes, how can I fix these error and load arm64 ISO succesfully?

    ruiliu666, Sep 21, 2023
    #2
  3. Hyper-V on win11/arm64

    I have a Thinkpad x13s, ARM64 inside, 32 GiB, running win11. Hyper-V installed, WSL runs fine.

    However, I have not been able to install ANY operating system in Hyper-V.

    E.g., I downloaded the latest Ubuntu-22.04/server/ARM64, created a VM, and attached the ISO as a DVD. VM boots, I get the GRUB prompt, choose "install..." - then it hangs, saying:

    EFI stub: ERROR: FIRMWARE BUG: kernel image not aligned on 64k boundary

    Any ideas?

    Eugene.Bogorad, Sep 21, 2023
    #3
  4. Brink Win User

    Arm64 iso tried to boot on x64! I used Hyper v on a lenovo v15 82c5 with 1366x768(literally...

    Windows 10 Insider build 20152 now available as ARM64 VHDX for Hyper-V

    With Windows 10 on ARM Insider Preview builds, you can create 64-bit ARM (ARM64) VMs in Hyper-V on Windows 10 ARM-based PCs. Creating ARM64 VMs is not supported on x64 hardware.

    Pre-requisites for creating ARM64 VMs:

    • A Windows 10 ARM-based PC with a Microsoft SQ1, Qualcomm Snapdragon 8cx, or Qualcomm Snapdragon 850 processor
    • Windows 10 Pro or Enterprise, build 19559 or newer
    • Hyper-V enabled (instructions)


    Source and download: https://www.microsoft.com/en-us/soft...erpreviewARM64

    Brink, Sep 21, 2023
    #4
