Windows 10: Battery Full Charge Capacity reporting error - More than double Design capacity

I dont use my new 3 months old Thinkpad often but it is now reporting the Full Charge Capacity as being more than double the Design Capacity which is surely as error. Full Charge is 121.21Wh while Design Capacity is 50.5Wh. Sorry just cant seem to upload the pic. I would like to rectify this without doing a battery calibration battery guage reset - which most say is bad for the battery.Is this a Windows error or battery hardware error or Thinkpad software error?Anyway I can reset/reload any software to reset the measurement to an accurate state? Thank you for your help!

:)



Windows 10 battery report - Full charge capacity exceeds design capacity

I've replaced the battery twice on a Sony Vaio SVS15 with an aftermarket brand and have run into an odd result in Windows 10 battery report.

This shows up and slowly increases(full charge capacity) after following each of the battery manufacturer's recommendation to discharge the battery completely to allow software estimates' re calibration. On initial install, the capacities match.

With the first aftermarket battery:

After fully charging to 100%, then unplugging the charger, the battery will reflect 96% within about a minute. It then seems to discharge much faster than the estimates given by Windows. At the 10% mark, the system shuts down unexpectedly, completely drained.

Second aftermarket battery:

Intermittently, it shows 96% and not charging - I can unplug the charger and back in to bring it to 100%. Upon reaching 10% remaining (10 minutes remaining estimate), it'll run for another couple minutes, then lose power.

Are there other ways to re-calibrate a system to properly report battery life, or could these simply be two faulty batteries?



Laptop is charging to design capacity, not full charge capacity

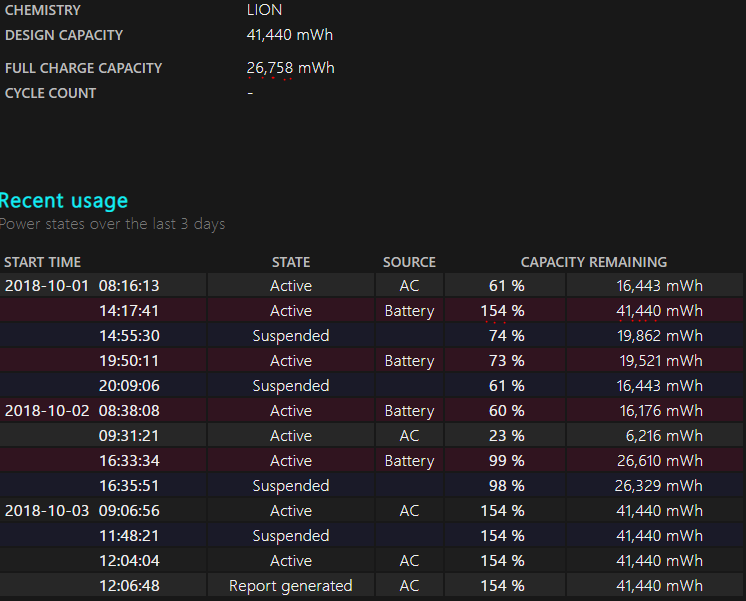

I have a laptop (Dell Inspiron 3541) with Windows 10. After running powercfg /batteryreport in PowerShell, I got a battery report (at %userprofile%\battery-report.html). However, the results didn't seem right. Here's a screenshot.





As shown by the battery report, my design capacity is 41,440 mWh, but the full charge capacity is 26,758 mWh (about 65% battery health). However, it also shows that it is charging to design capacity (154%), not full charge capacity.

Some other weird parts of the battery report:




My battery has never drained 80% in 40 minutes. 80% in 140 minutes is a much better estimate.




Over 60 years turned on and on AC in a week? I was running Linux a lot that week, but 60+ years is impossible.

Is this normal (for a Windows battery report)?



Windows 10 battery percentage of design or full charge capacity?

Is the battery indicator in Windows 10 a percentage of the design capacity or the current full charge capacity of the battery ?

ie. if my battery capacity dropped from say, 60mWh to 30mWh from wear, would the indicator show 50% or 100% when the battery is fully charged at its current capacity of 30mWh ?

EDIT: to describe my case, I have an XPS 13 9350 whose battery has a design capacity of 56mWh. over the past few weeks, the battery percentage in windows stops at 55 with "plugged in not charging". running

shows that the current full charge capacity is about 41mWh, meaning at 55% I'm getting about 20mWh on a "full" charge. the surprising thing is Dell Command Power Manager shows my battery to be in excellent health.
