Windows 10: BSOD Hard Disk 3

Sometimes I have gotten this error as soon as I enter my Windows password at startup, but that's the only time it happens, during use I can use the PC for days and it doesn't happen, can anyone help me? Link with Minidump: Minidump

:)



No drive found on my internal hard disk on Dell Latitude E5430.

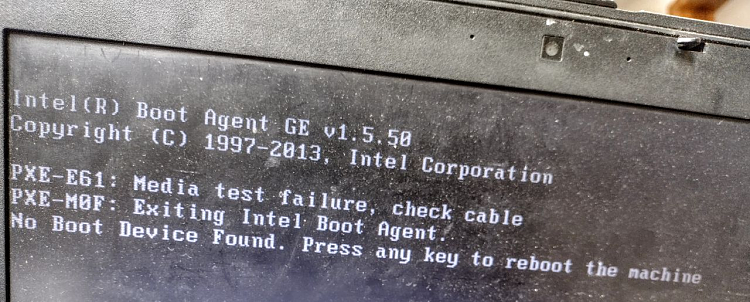

Hello,My laptop (Dell Latitude E5430) was working perfectly till yesterday. But yesterday night, it restarted on its own and ever since, it's stuck at this screen:

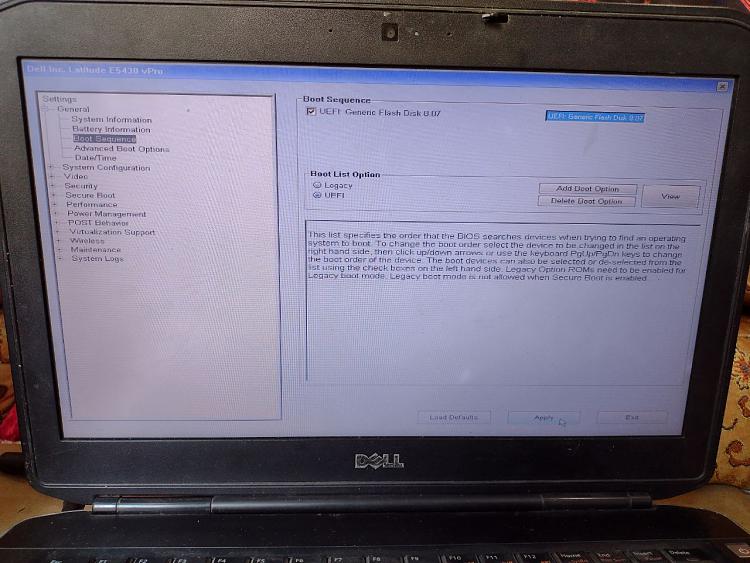

Also, inside the BIOS, no UEFI bootable hard disk drive is being listed.



The UEFI flash disk option shown above is that of my bootable pen drive with Windows 10 installation copy.I googled this issue a bit and the results were as follows:

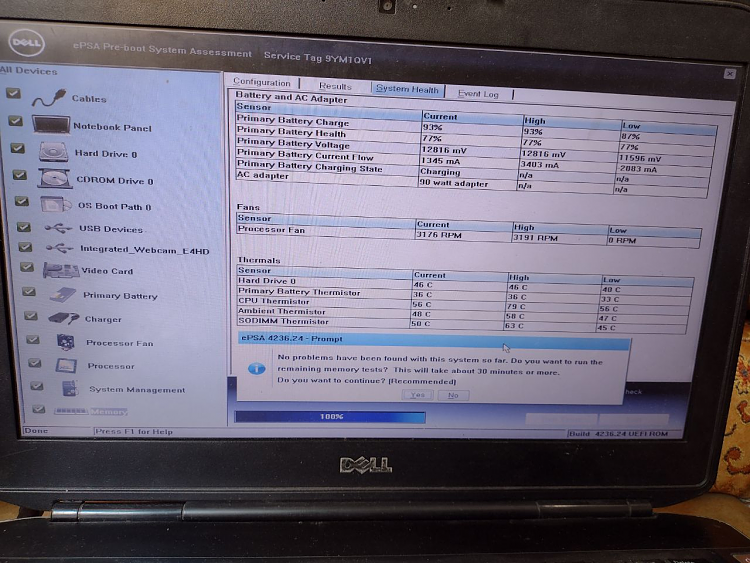

1. one thread suggested that I should run Dell's internal diagnostics to see if there anything wrong with hard disk. I did that but every component, including the hard disk one, passed these internal test.


2. a second thread suggested that I should try to remove and reseat the hard disk. I did that following Dell's user manual.

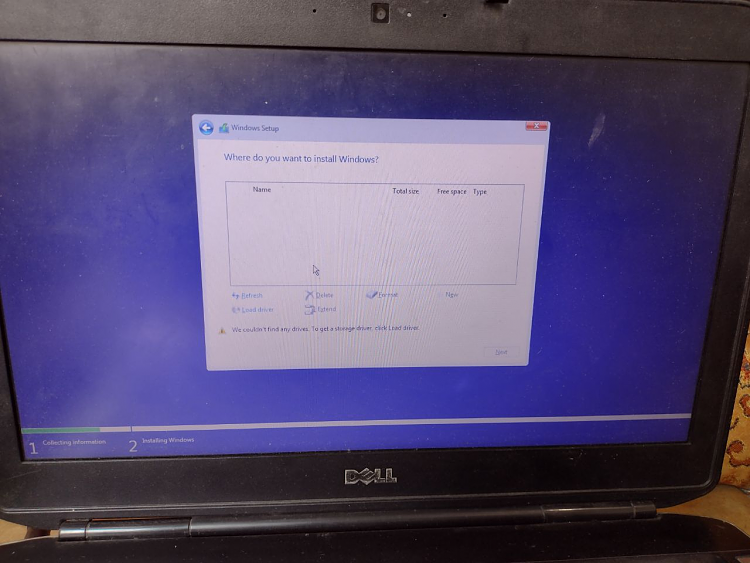

3. another thread suggested that I should reinstall my windows 10 afresh. But when I try to do so, the windows installation wizard doesn't list any drive in the hard disk. It's as if it doesn't detect hard disk at all.



In a nutshell, while the hard disk is being detected, but none of its drives is. However, the hard disk consisted of 3 drives:

1. C: with the windows' and applications' installations,
2. D: with all of my data,
3. E: which was recovery drive.

Any troubleshooting suggestions?I'm sorry I am not able to help you guys with any logs and stuff because I don't know how to get them when I can't get my Windows to boot. I'm not even sure if this is the correct section where I should be posting this thread.. I'm just so confused right now. *cry

A few weeks ago, I had upgraded (not fresh installation) from windows 10 version 1607 to 20H2. The version 1607 installation was a clean one (from scratch, after formatting the hard disk and creating new partitions).



External Hard disk contents are not visible.

Hi Pranoti,

For us to narrow down your concern with your external hard disk, we would like to know the following:

• Were there any changes made on your computer prior to the issue (e.g., updates, software installation)?
• To make sure that we have not missed on anything, what troubleshooting steps have you done so far?
• Do you hear any clicking sound when connecting your hard disk?

In the meantime, we suggest that you update all your device driver.

We look forward to your response.



Hard disk partition not showing up.

Hi Muhammad,



Thank you for writing to Microsoft Community Forums.



This can happen if the Hard-disk drivers are not up-to date. I would suggest you to update the hard disk drivers first. To update the drivers, please follow the steps mentioned below:

1. Open Device manager.

2. Then Expand “Disk drives”.

3. Then Right click on the Hard-disk listed under this category.

4. Then click on Update drivers.

5. Alternatively you can also try to update the drivers from manufacturer’s website.


Once the hard-disk drivers are updated, you will need to allocate the last partition (it is not allocated according to the screenshot) and you will be able to view the partition.



Also note that sometimes the hard disk partitions/drives might be hidden in This PC or My Computer window due to a Registry key. If a DWORD with the name NoViewOnDrive or NoDrives is present under following key in Registry Editor:

HKEY_CURRENT_USER\Software\Microsoft\Windows\Current Version\Policies\Explorer

Delete the DWORD and your drives will become visible in My Computer window.



Hope this helps.
