Windows 10: BSOD when connecting an Xbox Controller through a Thunderbolt 3 dock

Good day.


As the title suggests, I'm having issues while connecting an XBOX Cotroller to my PC using a TB3 dock. I get a BSOD and the computer restarts. I'm running over Windows 10 v 20H2 OS Build 19042.746


I have a few Minidump files, but I'm not sure how to share them. I inspected them with WinDbg and see this:


WDF_VIOLATION 10d

The Kernel-Mode Driver Framework was notified that Windows detected an error

in a framework-based driver. In general, the dump file will yield additional

information about the driver that caused this bug check.

Arguments:

Arg1: 0000000000000007, A driver attempted to delete a framework object incorrectly

by calling WdfObjectDereference to delete a handle instead

of calling WdfObjectDelete.

Arg2: 0000527ae00229b8, Reserved.

Arg3: ffffad851ffdd640, Reserved.

Arg4: ffffad851fe8ade0, Reserved.


Debugging Details:

------------------


*** WARNING: Unable to verify timestamp for win32k.sys


KEY_VALUES_STRING: 1



Key : Analysis.CPU.Sec

Value: 3


Key : Analysis.DebugAnalysisProvider.CPP

Value: Create: 8007007e on QUANTUMW


Key : Analysis.DebugData

Value: CreateObject


Key : Analysis.DebugModel

Value: CreateObject


Key : Analysis.Elapsed.Sec

Value: 5


Key : Analysis.Memory.CommitPeak.Mb

Value: 88


Key : Analysis.System

Value: CreateObject


BUGCHECK_CODE: 10d

BUGCHECK_P1: 7

BUGCHECK_P2: 527ae00229b8

BUGCHECK_P3: ffffad851ffdd640

BUGCHECK_P4: ffffad851fe8ade0

BLACKBOXBSD: 1 !blackboxbsd

BLACKBOXNTFS: 1 !blackboxntfs

BLACKBOXPNP: 1 !blackboxpnp

BLACKBOXWINLOGON: 1

CUSTOMER_CRASH_COUNT: 1

PROCESS_NAME: System

LOCK_ADDRESS: fffff8054be44bc0 -- !locks fffff8054be44bc0

Resource @ nt!PiEngineLock 0xfffff8054be44bc0 Exclusively owned

Contention Count = 14

Threads: ffffad851f60b2c0-01<*>

1 total locks

PNP_TRIAGE_DATA:

Lock address : 0xfffff8054be44bc0

Thread Count : 1

Thread address: 0xffffad851f60b2c0

Thread wait : 0x899


Thanks in advance

:)



thunderbolt 3 to displayport adapter

Hi John,



Thank you for writing to Microsoft Community Forums.



I understand that inconvenience you are facing when the things may not work as expected.

1. What is the make and model of the computer?




When the Thunderbolt 3 is used with certain eighth generation Intel processor-based Windows 10 systems, there is a possibility that the two USB 3.0 ports on the back of the dock (closest to the Ethernet port)
may not be recognized properly by the operating system.





However, I would suggest you to follow the steps mentioned below and let us know if that helps.

1. Disconnect the pluggable Thunderbolt 3 dock from the system and remove its power cable to turn off completely.

2. Uninstall the Intel ‘Thunderbolt Software’ present on your system via the Control Panel ->
   Programs and Features and restart the device once.

3. Download and install the latest version of the Intel Thunderbolt Software published by your system manufacturer. If you are unable to obtain this download from your system manufacturer, you can download a version directly from Intel
   here -> https://downloadcenter.intel.com/do...-Driver-for-Intel-NUC-Kit-NUC8i7HNK-NUC8i7HVK

4. Restart the system once again.

5. Reconnect the power cable to the pluggable Thunderbolt 3 dock, and then reconnect the Thunderbolt 3 cable from the dock to your system.

6. You should be prompted to authenticate/approve the dock. Follow the onscreen prompts for the completion of the process and check the status of the issue.


If the issue still persists I suggest you to get in touch with the
Thunderbolt support for the further assistance.





Hope it helps.



Muralidhar

Microsoft Community Moderator

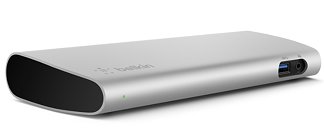

Belkin Introduces Thunderbolt 3 Express Dock HD
