Windows 10: C# ETW / Microsoft-Windows-Winsock-AFD Events not complete

when you run:
logman start -ets HackingSeriesSession -o hss.etl -p Microsoft-Windows-Winsock-AFD

wait 10 seconds, then:
logman stop -ets HackingSeriesSessiontracerpt.exe hss.etl -o evidence.txt

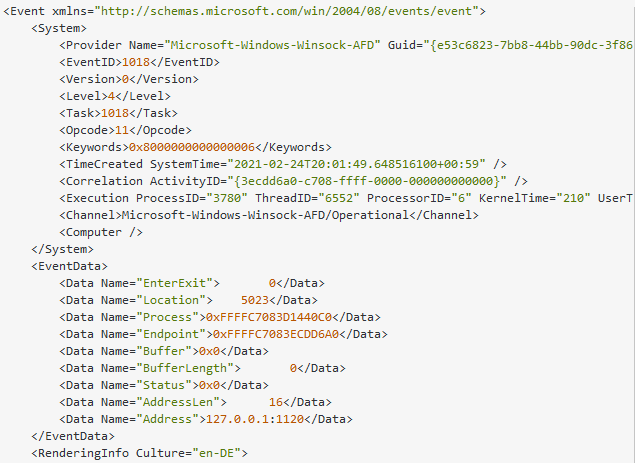

you get:





which is quite Ok, but now i would like to use the same AFD thingy in C# with MS EventTraceProvider Code. Found some examles online and only switched this line:

var restarted = session.EnableProvider"Microsoft-Demos-SimpleMonitor";

with this:

var restarted = session.EnableProvider"Microsoft-Windows-Winsock-AFD";

but the result in the console output only holds a few values:



GOT Event Delay=2,0sec: <Event MSec= "939,9642" PID="13932" PName=

"" TID="16040" ActivityID="36e4cdc0c708ffff0000000000000000"

EventName="AfdSend/Connected" ProviderName="Microsoft-Windows-Winsock-AFD"

FormattedMessage="send: 0: Process 0xffffc708408350c0,

Endpoint 0xffffc70849f8d010, Buffer Count 1, Buffer 0xffffc7084ab8aba0,

Length 63, Seq 3.000, Status 0 " EnterExit="0" Location="3.000"

Process="0xffffc708408350c0" Endpoint="0xffffc70849f8d010" BufferCount="1" Buffer="0xffffc7084ab8aba0" BufferLength="63" Status="0"/>




here is the complete code from the microsoft example

using Microsoft.Diagnostics.Tracing;using Microsoft.Diagnostics.Tracing.Session;using System;using System.Collections.Generic;using System.Diagnostics;using System.IO;using TraceEventSamples.Producer;/* README FIRST */// This program is a simple demo that demonstrates both the EventSource to generate ETL events as // well as using the ETWTraceEventSource class to read the resulting ETW events in real time. //// The basic flow of the program is// * Create a 'real time' TraceEventSession. This lets you control what events you wish to collect// * Connect a ETWTraceEventSource for the session using the 'Source' property. A TraceEventSource // represents the stream of events coming from the session. // * Connect a TraceEventParser to the source. Parsers know how to interpret events from particular // ETW providers. In this case we care about EVentSource events and the DynamicTraceEventParser// is the parser that cares about it. // * Attach callbacks to the Parser for the events you are interested in. We use the 'All' C# event // for this. // * Enable the ETW providers of interest in this case Microsoft-Demos-SimpleMonitor // * Kick off EventGenerator to generate some Microsoft-Demos-SimpleMonitor events normally in another process. // * Call the ETWTraceEventSource.Process method, which waits for events and sends them to the callbacks. // * At this point callbacks get called when the events come in. // // After 'Process' is called, it will return if// * ETWTraceEventSource.StopProcessing is called.// * The TraceEventSession.Dispose is called. namespace TraceEventSamples{ /// <summary> /// The main program is the 'listener' that listens and processes the events that come from ANY /// process that is generating Microsoft-Demos-SimpleMonitor events. /// </summary> internal class SimpleEventSourceMonitor { private static TextWriter Out = Console.Out; /// <summary> /// This is a demo of using TraceEvent to activate a 'real time' provider that is listening to /// the MyEventSource above. Normally this event source would be in a different process, but /// it also works if this process generate the events and I do that here for simplicity. /// </summary> public static int Main { Out.WriteLine"******************** SimpleEventSourceMonitor DEMO ********************"; Out.WriteLine"This program generates processes and displays EventSource events"; Out.WriteLine"using the ETW REAL TIME pipeline. thus no files are created"; Out.WriteLine; // Today you have to be Admin to turn on ETW events anyone can write ETW events. if !TraceEventSession.IsElevated ?? false { Out.WriteLine"To turn on ETW events you need to be Administrator, please run from an Admin process."; Debugger.Break; return -1; } // To listen to ETW events you need a session, which allows you to control which events will be produced // Note that it is the session and not the source that buffers events, and by default sessions will buffer // 64MB of events before dropping events. Thus even if you don't immediately connect up the source and // read the events you should not lose them. // // As mentioned below, sessions can outlive the process that created them. Thus you may need a way of // naming the session so that you can 'reconnect' to it from another process. This is what the name // is for. It can be anything, but it should be descriptive and unique. If you expect multiple versions // of your program to run simultaneously, you need to generate unique names e.g. add a process ID suffix // however this is dangerous because you can leave data collection on if the program ends unexpectedly. var sessionName = "SimpleMontitorSession"; Out.WriteLine"Creating a '{0}' session", sessionName; Out.WriteLine"Use 'logman query -ets' to see active sessions."; Out.WriteLine"Use 'logman stop {0} -ets' to manually stop orphans.", sessionName; using var session = new TraceEventSessionsessionName { /* BY DEFAULT ETW SESSIONS SURVIVE THE DEATH OF THE PROESS THAT CREATES THEM! */ // Unlike most other resources on the system, ETW session live beyond the lifetime of the // process that created them. This is very useful in some scenarios, but also creates the // very real possibility of leaving 'orphan' sessions running. // // To help avoid this by default TraceEventSession sets 'StopOnDispose' so that it will stop // the ETW session if the TraceEventSession dies. Thus executions that 'clean up' the TraceEventSession // will clean up the ETW session. This covers many cases including throwing exceptions // // However if the process is killed manually including control C this cleanup will not happen. // Thus best practices include // // * Add a Control C handler that calls session.Dispose so it gets cleaned up in this common case // * use the same session name say your program name run-to-run so you don't create many orphans. // // By default TraceEventSessions are in 'create' mode where it assumes you want to create a new session. // In this mode if a session already exists, it is stopped and the new one is created. // // Here we install the Control C handler. It is OK if Dispose is called more than once. Console.CancelKeyPress += delegate object sender, ConsoleCancelEventArgs e { session.Dispose; }; // To demonstrate non-trivial event manipulation, we calculate the time delta between 'MyFirstEvent and 'MySecondEvent' // firstEventTimeMSec remembers all the 'MyFirstEvent' arrival times indexed by their ID var firstEventTimeMSec = new Dictionary<int, double>; /*****************************************************************************************************/ // Hook up events. To do this we first need a 'Parser. which knows how to part the events of a particular Event Provider. // In this case we get a DynamicTraceEventSource, which knows how to parse any EventSource provider. This parser // is so common, that TraceEventSource has a shortcut property called 'Dynamic' that fetches this parser. // For debugging, and demo purposes, hook up a callback for every event that 'Dynamic' knows about this is not EVERY // event only those known about by DynamiceTraceEventParser. However the 'UnhandledEvents' handler below will catch // the other ones. session.Source.Dynamic.All += delegate TraceEvent data { // ETW buffers events and only delivers them after buffering up for some amount of time. Thus // there is a small delay of about 2-4 seconds between the timestamp on the event which is very // accurate, and the time we actually get the event. We measure that delay here. var delay = DateTime.Now - data.TimeStamp.TotalSeconds; Out.WriteLine"GOT Event Delay={0:f1}sec: {1} ", delay, data.ToString; }; // Add logic on what to do when we get "MyFirstEvent" session.Source.Dynamic.AddCallbackForProviderEvent"Microsoft-Demos-SimpleMonitor", "MyFirstEvent", delegate TraceEvent data { // On First Events, simply remember the ID and time of the event firstEventTimeMSec[intdata.PayloadByName"MyId"] = data.TimeStampRelativeMSec; }; // Add logic on what to do when we get "MySecondEvent" session.Source.Dynamic.AddCallbackForProviderEvent"Microsoft-Demos-SimpleMonitor", "MySecondEvent", delegate TraceEvent data { // On Second Events, if the ID matches, compute the delta and display it. var myID = intdata.PayloadByName"MyId"; double firstEventTime; if firstEventTimeMSec.TryGetValuemyID, out firstEventTime { firstEventTimeMSec.RemovemyID; // We are done with the ID after matching it, so remove it from the table. Out.WriteLine" >>> Time Delta from first Event = {0:f3} MSec", data.TimeStampRelativeMSec - firstEventTime; } else { Out.WriteLine" >>> WARNING, Found a 'SecondEvent' without a corresponding 'FirstEvent'"; } }; // Add logic on what to do when we get "Stop" session.Source.Dynamic.AddCallbackForProviderEvent"Microsoft-Demos-SimpleMonitor", "MyStopEvent", delegate TraceEvent data { Out.WriteLine" >>> Got a stop message"; // Stop processing after we we see the 'Stop' event, this will 'Process to return. It is OK to call Dispose twice session.Source.Dispose; };#if DEBUG // The callback above will only be called for events the parser recognizes in the case of DynamicTraceEventParser, EventSources // It is sometimes useful to see the other events that are not otherwise being handled. The source knows about these and you // can ask the source to send them to you like this. session.Source.UnhandledEvents += delegate TraceEvent data { if intdata.ID != 0xFFFE // The EventSource manifest events show up as unhanded, filter them out. Out.WriteLine"GOT UNHANDLED EVENT: " + data.Dump; };#endif // At this point we have created a TraceEventSession, hooked it up to a TraceEventSource, and hooked the // TraceEventSource to a TraceEventParser you can do several of these, and then hooked up callbacks // up to the TraceEventParser again you can have several. However we have NOT actually told any // provider EventSources to actually send any events to our TraceEventSession. // We do that now. // Enable my provider, you can call many of these on the same session to get events from other providers. // Because this EventSource did not define any keywords, I can only turn on all events or none. //var restarted = session.EnableProvider"Microsoft-Demos-SimpleMonitor"; var restarted = session.EnableProvider"Microsoft-Windows-Winsock-AFD"; if restarted // Generally you don't bother with this warning, but for the demo we do. { Out.WriteLine"The session {0} was already active, it has been restarted.", sessionName; } // Start another thread that Causes MyEventSource to create some events // Normally this code as well as the EventSource itself would be in a different process. //EventGenerator.CreateEvents; Out.WriteLine"**** Start listening for events from the Microsoft-Demos-SimpleMonitor provider."; // go into a loop processing events can calling the callbacks. Because this is live data not from a file // processing never completes by itself, but only because someone called 'source.Dispose'. session.Source.Process; Out.WriteLine; Out.WriteLine"Stopping the collection of events."; } return 0; } }}

:)
