Windows 10: Can I boot and run Windows 10 from SSD connected to USB port that was internally connected...

Discus and support Can I boot and run Windows 10 from SSD connected to USB port that was internally connected... in Windows 10 Gaming to solve the problem; Hello,my laptop Lenovo T570 was delivered with pre-installed Windows 10 on NVMe SSD device.However due to this hardware failure NVMe interface adapter... Discussion in 'Windows 10 Gaming' started by cmonty14, Jun 16, 2024.

  1. CMONTY14
    cmonty14 Win User

    Can I boot and run Windows 10 from SSD connected to USB port that was internally connected...


    Hello,my laptop Lenovo T570 was delivered with pre-installed Windows 10 on NVMe SSD device.However due to this hardware failure NVMe interface adapter on mainboard is broken I cannot find this device in BIOS anymore and as a result Windows is unavailable.My idea is now to put the NVMe SSD device into an external case and connect this to a USB 3 port.However, Windows 10 is not booting in this setup, instead I'm caught in the boot-repair-loop.I have verified with sfc and chkdsk that this NVMe SSD device is working correctly, and I can boot Windows 10 w/o problems when putting this NVMe SSD

    :)

    cmonty14, Jun 16, 2024
    #1
  2. BREE
    Bree Win User

    Is an external SSD connected to the USB port (much) slower than an int

    You are limited by two things, the speed of your USB port and the speed of the SSD. For a SATA SSD and a USB3 port there's little difference.

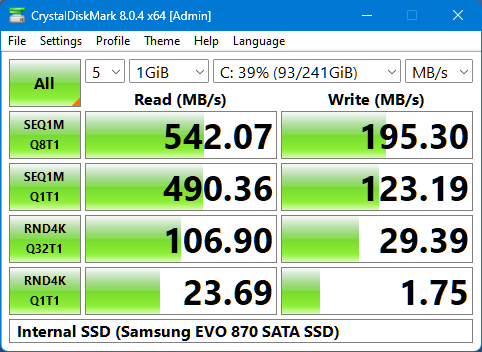

    Can I boot and run Windows 10 from SSD connected to USB port that was internally connected... 379333d1668683466t-external-ssd-connected-usb-port-much-slower-than-int-ssd-speed-internal-sata.png

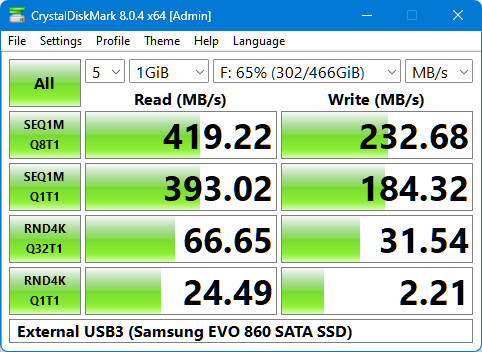

    Can I boot and run Windows 10 from SSD connected to USB port that was internally connected... 379334d1668683466t-external-ssd-connected-usb-port-much-slower-than-int-ssd-speed-usb3.png

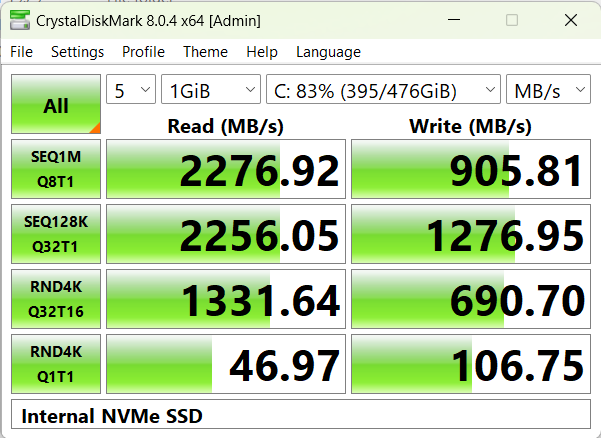

    For an NVMe SSD it will be much faster as an internal drive and limited to USB3 speeds as an external drive.
    Can I boot and run Windows 10 from SSD connected to USB port that was internally connected... 336d1668684361t-external-ssd-connected-usb-port-much-slower-than-int-ssd-speed-internal-nvme-ssd.png

    Bree, Jun 16, 2024
    #2
  3. MISTERED
    MisterEd Win User
    Is an external SSD connected to the USB port (much) slower than an int

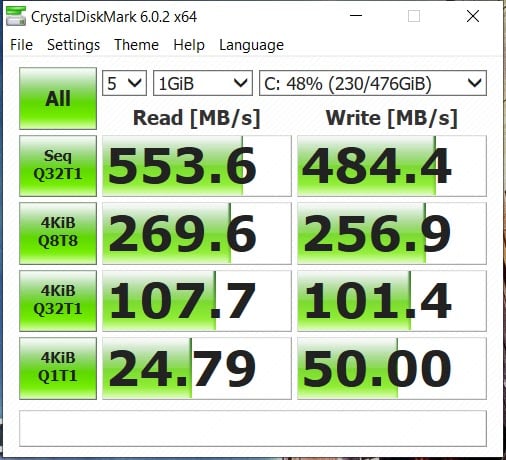

    Adata SU800 M.2 SATA 512GB SATA/Internal
    Can I boot and run Windows 10 from SSD connected to USB port that was internally connected... 379351d1668704164t-external-ssd-connected-usb-port-much-slower-than-int-ps0610.jpg

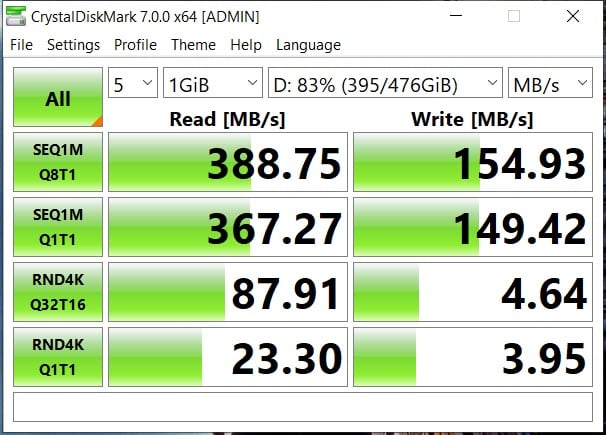

    SATA/USB 3.0 (5 Gbps)
    Can I boot and run Windows 10 from SSD connected to USB port that was internally connected... 379352d1668704178t-external-ssd-connected-usb-port-much-slower-than-int-ps1155.jpg

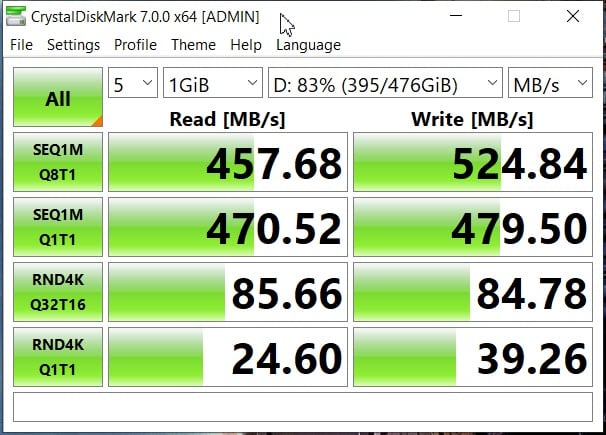

    SATA/USB 3.1 (10 Gbps)
    Can I boot and run Windows 10 from SSD connected to USB port that was internally connected... 379353d1668704194t-external-ssd-connected-usb-port-much-slower-than-int-ps1156.jpg

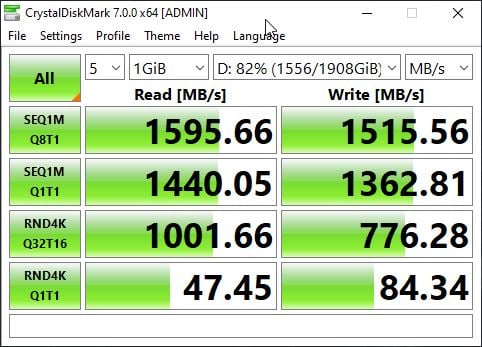

    Intel 660p M.2 NVME 2GB NVME/Internal
    Can I boot and run Windows 10 from SSD connected to USB port that was internally connected... ssd-connected-usb-port-much-slower-than-int-2021-03-30-23_55_41-crystaldiskmark-7.0.0-x64-admin-.jpg

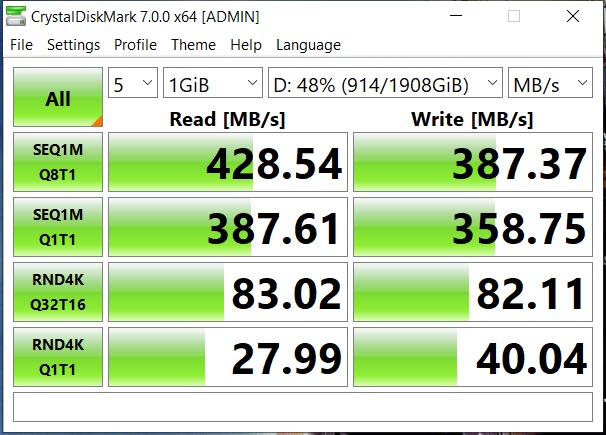

    NVME/USB 3.0 (5 Gbps)
    Can I boot and run Windows 10 from SSD connected to USB port that was internally connected... 379355d1668704400t-external-ssd-connected-usb-port-much-slower-than-int-ps1174.jpg

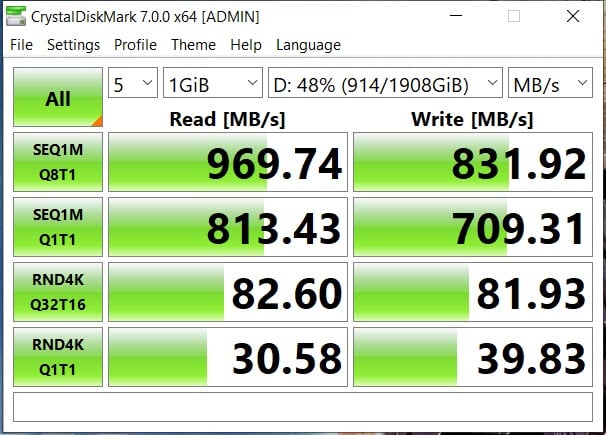

    NVME/USB 3.1 (10 Gbps)
    Can I boot and run Windows 10 from SSD connected to USB port that was internally connected... 379356d1668704416t-external-ssd-connected-usb-port-much-slower-than-int-ps1175.jpg

    MisterEd, Jun 16, 2024
    #3
  4. SPOILO
    Spoilo Win User

    Can I boot and run Windows 10 from SSD connected to USB port that was internally connected...

    Is an external SSD connected to the USB port (much) slower than an int

    Is an external SSD connected to the USB port (much) slower than an internal SSD?

    Spoilo, Jun 16, 2024
    #4
