Windows 10: Can't enable Windows Recovery Environment

hi

OS: Windows 10 Pro 64-bit

Without WinRE I can't repair my system from the hard drive if something happens at boot, or if I need to reset my system.

This is what happens when I type reagentc /info:



And



It shows that WinRE is disabled.


Please advice me regarding this issue





Regards

:)



Missing Recovery Environment

Hi Alan,

Here is a link containing several useful suggestions to help you recover Windows 10. Since the error message that you got tells you to insert your Windows installation or recovery media. We suggest the perform the steps listed under
Use a recovery drive to restore or reset your PC or you can also follow the steps under
Use installation media to restore or reset your PC. Please see the link below for more details:

Recovery options in Windows 10.

Regards.



How does Windows boot to advanced recovery option e.g. command prompt?

- that gives me a 454 'Unexpected error' This tells me that the BCD is partially corrupted.

The commands: shutdown.exe /r /o /f /t 00
or: %SystemRoot%\System32\Cmd.exe /c reagentc /boottore&shutdown /r /f /t 00
should boot into Recovery if everything is configured correctly.
FYI, If Windows is configured correctly:

1. If Reagentc is disabled, you still can get into Recovery but with limited options.
2. If Reagentc is enabled, you'll get all options.
3. If you boot Windows using Recovery USB stick, You'll get into Recovery with couple of options missing.

Here's my suggestion if you want to try:
OPTION 1: Will save the trouble of re-install Windows.

1. Download the image of my first 3 partitions (450MB Recovery, 100 MB EFI partition, and 16MB unformatted primary)
   EFI_Boot-00-00.7z - Google Drive
2. Run Macrium and restore the image from step 1, overwriting your existing 1st three partitions, leaving C alone.
3. Delete the 490MB Recovery partition.
4. From Macrium, run fix boot problems.
5. Reboot. Open Admin command prompt then run Reagentc /info to make sure that it is enabled. If not, enable it.
   if failed to enable, reboot and try again.

OPTION 2: Assuming you've already had Windows backup with Macrium.

1. Wipe out the first 5 parttiions. (450MB, 100MB, 16MB, C Drive, 480MB)
2. Fresh install Windows 10
3. Restore C drive from backup image, run fix boot problems
4. repeat step 5 from OPTION 1 above.



Unable to enable BitLocker due to mis-configured (?) Windows Recovery Environment

tl;dr: I failed to enable BitLocker on my tablet's system drive for the first time and now I see an error each time I restart Windows or try to enable BitLocker again. Windows claims that this is due to not configured Windows Recovery Environment and I don't know, what to do next.

I have a Windows 10 Pro-based tablet with TPM available and wated to enable BitLocker encryption on drive C: (system drive and the only one in fact, of that matters).

I enabled it for the first time and I went through few steps of its wizard. First, Windows checked, if my hardware allows to use BitLocker. This step passed without problems. Next, I saw a screen in which Windows claimed, that it is moving Windows Recovery Environment to some other (hidden) partition. Reasons for such move remains unknown to me.

In third screen or step I saw I question, where to I want to store encryption key and three options:

• save it to Microsoft account,

• store it on USB,

• print it.


This is a tablet with only microUSB port. I didn't have microUSB-based pendrive or microUSB OTG cable when enabling BitLocker for the first time. And I have my Windows 10 with only single local account. Thus, non of above options was available for me and Next button was disabled.

I've clicked X, seen some error message and shut down my tablet.

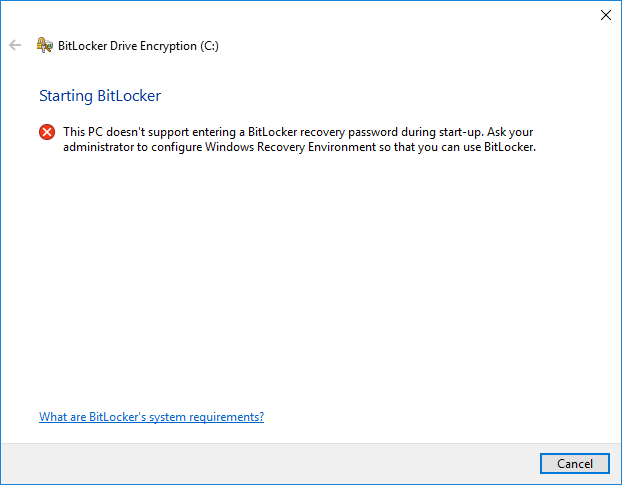

When I started it again next day I saw following error during Windows start-up:





Now, I can see it with every Windows 10 restart. This is really weird for me, because -- as I wrote above -- BitLocker configuration was not finished and thus neither BitLocker is enabled nor encryption key is put to TPM.

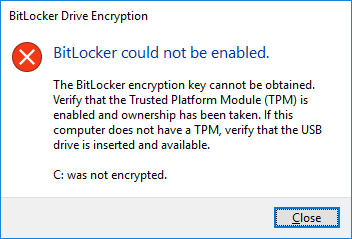

Each time I try to re-enable BitLocker for C: drive I see following error:





I don't understand, how it is possible that Windows managed to move Windows Recovery Environment from C: drive to a hidden partition, but isn't able to move it back?

Anyway, can anyone shed some light and explain me, what should I do now or how to proceed from this point? How to move back Windows Recovery Environment manually? How to get rid of that startup error message? And the most important -- how to enable BitLocker and encrypt my system drive on my tablet?
