Windows 10: Can't remove Hyper-V Virtual Hard Drive partition

I have used Hyper-V on this computer before and have since disabled it. I have a "PortableBaseLayer" Virtual Hard Drive partition that I can not find out how to remove. I went in to Program Data> Microsoft > Windows > Hyper-V and deleted the contents of this folder but the partition remains and I can not remove it. I can also not find anything in the Hyper-V application on this when I activate it and browse through it again.

:)



Can't remove Hyper-V Virtual Hard Drive partition

Hi Robert,

Thank you for writing to Microsoft Community Forums.

I understand that you are facing an issue when you are trying to remove the Hyper-V Virtual Hard Drive partition. This partition is just a virtual partition that is created by using the space within your physical hard disk, so that
it can be used within Hyper-V. Since you are no longer using Hyper-V and you wish to remove the Virtual Hard Drive partition, I would suggest you to follow the steps below and check if it is helpful to you.

Steps to remove the Virtual Hard Drive partition using Disk Management:

1. Press the Windows key and
   R key, this will open the Run dialogue box for you.

2. Type diskmgmt.msc and press
   Enter, this will open the Disk Management Window for you.

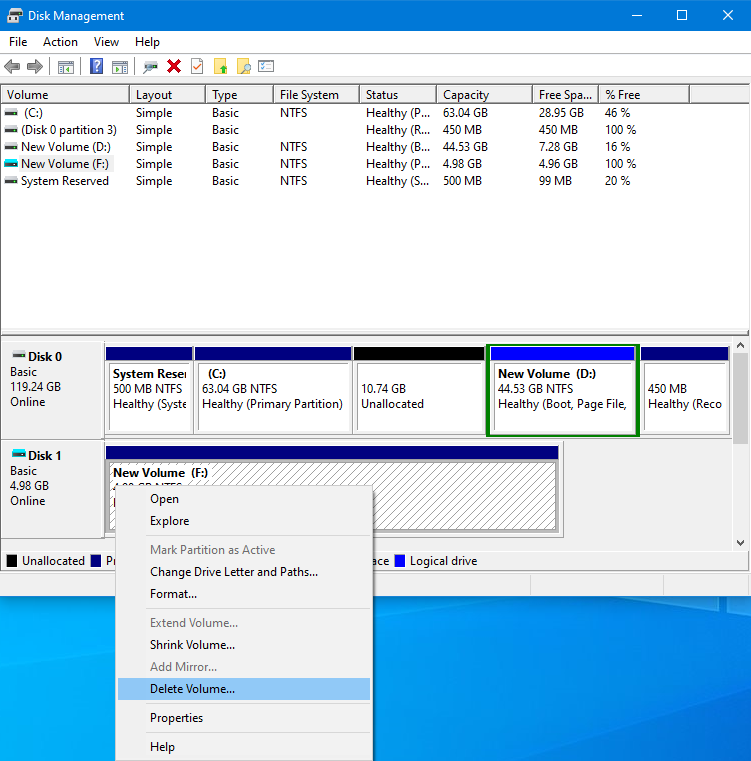

3. Your Virtual Hard Drive will be indicated by a ‘blue’ drive beside the
   Disk n (n is the disk number to which the VHD is associated), select the allocated
   Volume, right-click and select Delete Volume. You can check the picture below for your reference.




4. You will receive a prompt, click on
   Yes. This will delete the volume allocated to the Virtual Hard Drive and the space allocated will now be turned into an
   Unallocated space.

5. To detach the Virtual Hard Drive completely,
   right-click on the Disk and select Detach VHD.

6. You will receive a prompt, you may click on the check box to
   Delete the virtual hard disk after removing the disk. Click on
   OK.


This will remove the Hyper-V Virtual Hard Drive partition from your system.

If the issue still persists, I would suggest you to post your query in IT Pro

TechNet forums, where we have support professionals who are well equipped with the knowledge on the issues with Hyper-V and Virtual Hard Drive to assist you with your query.

Regards,

Aaron Summith

Microsoft Community - Moderator



Can't remove Hyper-V Virtual Hard Drive partition

I have used Hyper-V on this computer before and have since disabled it. I have a "PortableBaseLayer" Virtual Hard Drive partition that I can not find out how to remove. I went in to Program Data> Microsoft > Windows > Hyper-V and deleted the contents
of this folder but the partition remains and I can not remove it. I can also not find anything in the Hyper-V application on this when I activate it and browse through it again.



Importing Virtual PC -> Hyper V

Thank you. I followed the instructions below, and when I go to hit the action menu to install Integration services, of course, there is no such option under the Action Menu. The instructions seem so simple but I'm still missing something...

Step 4: Install or upgrade integration services

Hyper-V includes a software package for supported guest operating systems that improves integration between the physical computer and the virtual machine. This package is referred to as integration services. To learn more, see Integration
Services.

This step can't be automated or done within a Windows PowerShell session.

To install integration services

•
  Open Hyper-V Manager. From the Server Manager Tools menu, click Hyper-V Manager.

•
  Connect to the virtual machine. Right-click the name of the virtual machine and click Connect.

•
  From the Action menu of Virtual Machine Connection, click Insert Integration Services Setup Disk. This action loads the setup disk in the virtual DVD drive. Depending on the guest operating system installed, you may
  need to start the installation manually.

•
  After the installation finishes, all integration services are available for use.
