Windows 10: Connected HDD’s Partitions Are Weird

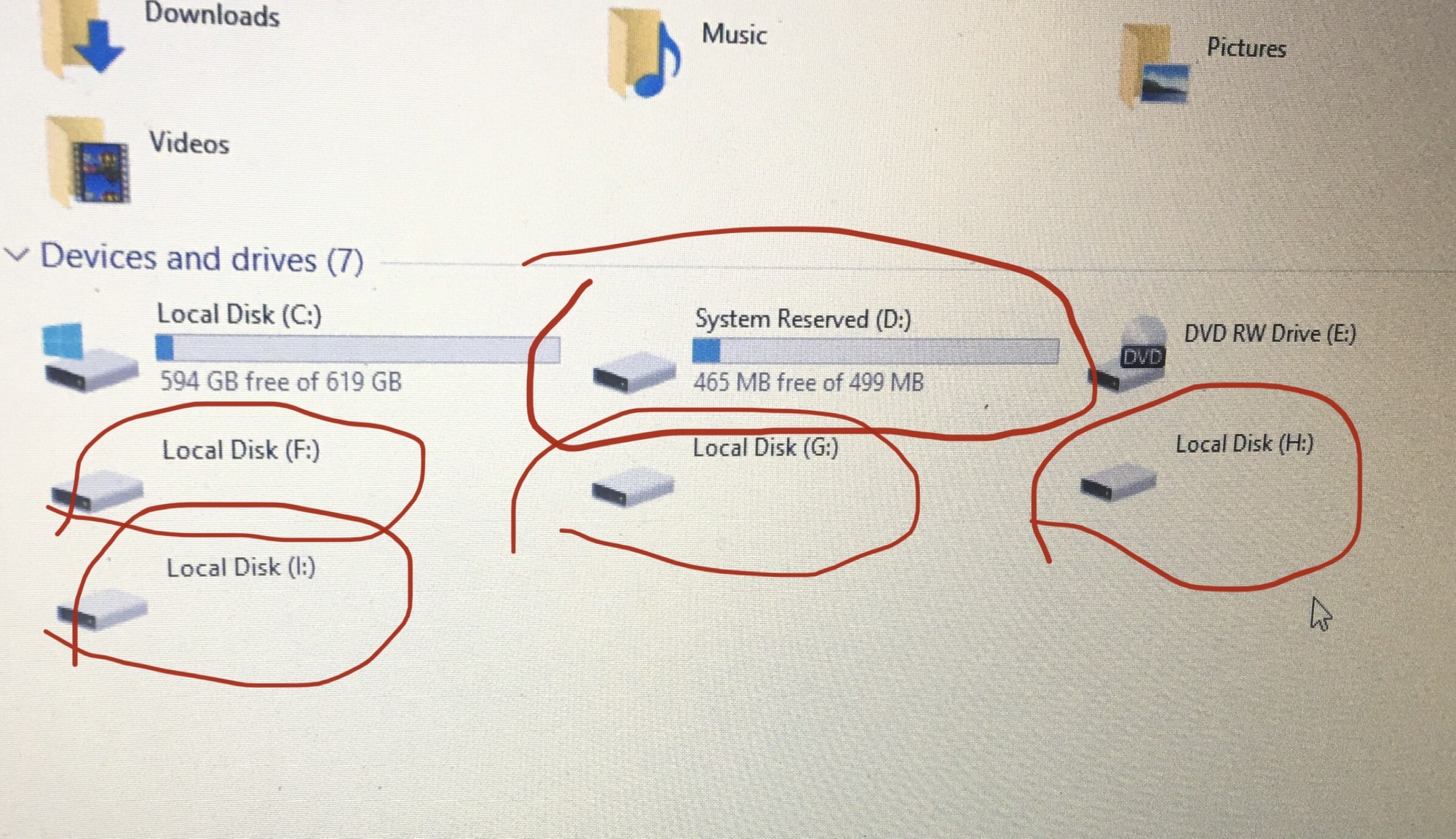

Hello there. After some problems with my previous Windows that faced some problems and ran into a blue screen that caused a lot of problems for my HDD that made it unusable, I decided to connect my laptop’s internal HDD to another computer. Sadly I see partitions like this and I can see the System Reserved thing as well. Any fixes you’ve got in mind?



:)



W7 Hard drive partition issue

to get rid of that 100 meg windows partition that setup creates for you on a new install on a blank hdd:

- press shift+f10 when on the partition management screen in setup <-- this opens a command prompt
- diskpart <-- start the windows command line partition management tool
- list disk <--- list the installed hdds in this computer for the next step
- select disk 0 <- might have to replace 0 with the number of the correct disk
- clean <-- this will erase all data on the disk you selected one step up- dont use the wrong disk!
- create partition primary <- creates a primary partition taking up all space on the drive, adjust the command if necessary
- exit, exit to exit diskpart and the command prompt
- click refresh in partition manager and select your newly created partition and install to that



Unresponsive HDD Partition.

I somehow managed to format the partition & its now unallocated space. Now, I cant create a new partition neither I can allocated that free space to other Partition. Can you suggest a way to repair that space in HDD?

-Thanks



Lost Partitions on HDD with HDD regenerator

Hey! thanks for the response!, i tried running Sea Tools and i have interesting results,

SMART Test - PASS

But the most interesting part is that, i have a "mount" program in Sea tools, so when i mount sda2, sda3,sda4
then when i go to /mnt/sda2, /mnt/sda3 and /mnt/sda4, i can see all of my data there!! all the files, all the folders, just as they were..

I can even read the contents of text files (using cat command).. so it seems my data + paritions are there but then why am i facing this terrible issue ? *Sad(






also regarding backups, i am sorry i have none *Sad, actually this 2tb hdd was itself my storehouse.. rip (i hope not)

Mount tool:





So DISKPART can show all my partitions and volumes properly
and in Seatools , i can mount all partitions and List and read all my files and folders without any issues..
so what should be my next step :/ i don't wanna mess this up
