Windows 10: Creating More Space on SSD

Hi everyone,

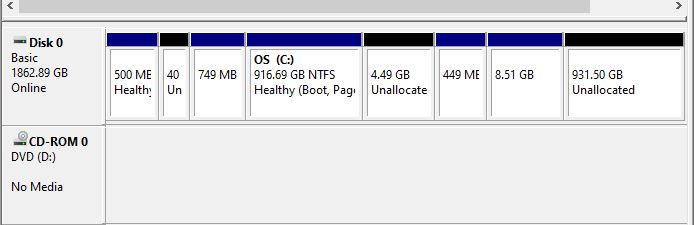

I recently cloned my 1TB HHD to a new 2TB SSD and now my new SSD is showing full for Drive C. I have another 1TB unallocated, How do I combine these two to get the true 2TB storage??? See attached from Computer Management

:)



Moving Unallocated Disk Space to End of Disk

Was commenting on the pic in post #21. Not suggesting anything. It just looked like the step you were doing was incomplete.



SSD storage keeps filling up on its own

Hi Ash,

There's a possibility that the files are just hidden. As an initial troubleshooting, we suggest following the steps below on how to display hidden files that's eating space of your SSD:

• On the Search bar, type folder, and then select
  Show hidden files and folders from the search results.
• Under Advanced settings, select Show hidden files, folders, and drives,
  and then select OK.

Keep us in the loop with the result.



Saving free space on SSD (Regarding multiple obligatory partitions on main drive)

Gerry Here just copy-paste some irrelevant response.

Well, **I've figured it out**. Here my solution (I Take no responsibility from any damage that might arise from this process, and I do not guarantee it to work for u.)

We'll assume u have 2 disks; SSD and HDD.

Also NOTE: I Work in a GPT-Disk partitioning scheme, I don't know if it's applicable on dos-style MBR partitioning.

General-methodology wich we are going to work with (or TL;DR).

• Delete all partitions on all drive
• Install Windows on the HDD Drive
• Install Windows on the SSD Drive (yes, twice!)
• Repartition the HDD to free up and reallocate as we wish (The only parition that HAVE to be there is the EUFI System (Fat) )
• After freeing up HDD space, move user folder to the HDD
• PROFIT

And in more detail:

THIS GUIDE ASSUME THIS IS A FRESH PC - THAT U DO NOT HAVE ANYTHING U NEED ON EITHER DISKS.

* - Asterisk, not a real step, just additional information

• Boot into windows 10 installation
• Clear ALL partitions on BOTH drives
• Let windows install itself onto the HDD, We'll call this installation win-hdd
  • There is no need to actually boot into this OS.
• Boot into windows 10 installation
• Let windows install itself onto the SSD. We'll call this installation win-ssd
  • *What would happen now, Is that windows detects the recovery and eufi partitions and does not need to create such additional partitions on your ssd. It would only create a 16MB windows reserved partition.
  • *Your boot partition would be hdd/eufi; But since windows detect it's own bootloader it would allow you to duel-boot between win-hdd and win-ssd(default)
• Optional: During windows-ssd first run wizard switch to audit mode (CTRL+SHIFT+F3)
  • *We would use audit mode to:
    • * Optional1: Repartition hdd
    • * Optional2: Change "Users" folder to the hdd.
    • * If u do not want to move Users folder, u can do 6.2 After win-ssd fully boots instead
  • Repartition hdd & move Users folder:
    • Using a 3rd party tool such as "MiniTool Partition Wizard" you can do the fallowing *as you wish*:
      • Delete win-hdd partition
      • Delete recovery-hdd partition
      • Delete windows reserved (16 mb) partition.
      • You can also later move the EUFI to the start of the hdd disk, if needed
      • Create new partition (free to use) on hdd.
      • Make sure to properly assign drive letters to all drive as u wish
      • Fallow
        this guide to relocate the User folder (Starting from Step 2)
• Boot into windows-ssd; If u do not know which one (int the OS selection screen) It's safe to assume that the automatically-selected one is the win-ssd.
• If u have not performed 6.2 Yet, this is the time to do that now.

GLHF.
