Windows 10: Credential guard not running

Lord_StarPaul86 · Oct 1, 2023

After the newest update Credential guard disappeared from Windows Defender. Registry shows it`s turned on but it`s not present in the Core Isolation tab. System info doesn`t show it as a running service.

:)

Brink · Oct 1, 2023

Credential Guard lab companion

If you have heard about Credential Guard in Windows Server 2016 (and in Windows 10), but do not have an environment to try it out, here is a lab environment we built for you to play.

Lab access

The link will lead you to a sign up page, after that, you will see the following labs listed for Windows Server 2016:

Windows Server 2016 labs

There are 3 exercises in the “Implementing Breach Resistance Security in Windows Server 2016”:

Credential Guard

Remote Credential Guard

Device Guard

This blogpost will walk you through the Credential Guard lab details.

After click on the link of Breach Resistance lab, you be required to sign in and then you can launch the lab:

Sign-in

Launch page

It takes a few minutes to create the VMs, and once it has done, you will see the following machines prepared:

Initialize

DC: domain controller, which is not used for this exercise.

SRV01 and SRV02: both are Windows Server 2016, and used for the lab exercise.

Lab exercise – Explained

The steps are listed in the Content section:

Content

This lab is structured to cover the following in sequence:

Understand how attackers can use the hash in memory to gain access to domain controllers

Configure Credential Guard

Verify the hash in memory is protected using Credential Guard

You can follow the steps listed under the content section to complete the lab, the intent of the blog, is to break the procedures into groups, to help you understand the exercise better.

Prep the hash

Lsass.exe is the process which handles user logon, it stores the user credential information in its memory. The memory is cleared when the machine starts up. In this lab environment, all the virtual machines start at the time lab launches, when you logon to the machine, you will only have the logon user credential information in memory. In order to demonstrate an attacker gaining user access using other account’s hash, the first part of the lab is to simulate a server which has been running for a while, different users had remotely or locally connected to it, therefore, lsass memory stored many different user credential information.
This is accomplished by step 1-8.

Retrieving credential hash

Mimikatz is a popular tool for retrieving lsass memory information. The tool has been copied to the lab machines, step 9-13 walk you through the process of dumping lsass memory using Mimikatz.

Pass the Hash

Pass the hash is a hacking technique that allows an attacker to authenticate by using the underlying NTLM, instead of specifying the user password. In step 14 to 24, you will extract LabAdmin hash from lsass using Mimikatz, and use the hash to open a PowerShell console, and perform a couple of operations using the LabAdmin privilege:

Add a user to the domain admin group

Open remote PowerShell connection to a domain controller

Both operations could not be performed by the logon user. But using the hash of the LabAdmin, an attacker will be able to do it using the information retrieve from Lsass memory.

Configure and verify Credential Guard

Step 25 to 36 illustrate the steps to configure credential guard, then verify its status using msinfo32.exe and PowerShell.

Step 37 to 43 goes further to use Mimikatz to show the hash in Lsass is now encrypted using Credential Guard.

More info

The exercise illustrated the benefit of Credential Guard in Windows Server 2016 as well as Windows 10. For more information, you can find here.
Click to expand...

Source: Credential Guard lab companion Datacenter and Private Cloud Security Blog

See also:

Enable or Disable Credential Guard in Windows 10 Windows 10 Security System Tutorials

Verify if Credential Guard is Enabled or Disabled in Windows 10 Windows 10 Security System Tutorials

LucyW - MSFT · Oct 1, 2023

Updated BIOS, and Credential Guard MAY not be running anymore

Hi Avi_Dor

Glad to be able to receive your detailed clarification on the issue.

From what you have shared, I understand that multiple computers of yours have experienced Credential Guard not working properly after the BIOS update.

You mentioned that LsaIso.exe is still running normally, which is not directly related to whether Credential Guard is enabled or not, and whether LsaIso.exe is running or not is not the basis of whether Credential Guard is enabled or not.

You also mentioned that Credential Guard is no longer running in System Information, does this mean that System Information - Virtualization-based Security is turned off?

Did you try to turn on Credential Guard after you realized it was no longer running? There are three ways to turn on Credential Guard: intune, group policy, and registry.

Please check the link for the detailed steps:Configure Credential Guard - Windows Security | Microsoft Learn

We look forward to your reply.

Best Regards,

LucyW-MSFT | Microsoft Community Support Specialist

Alex Rourke · Oct 1, 2023

Credential Guard Shows as Not Running

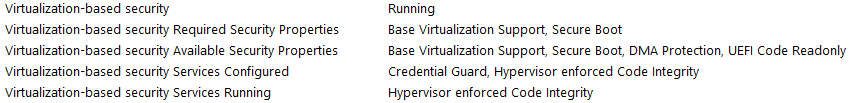

In our domain, our computers are set up to have Credential Guard enabled with UEFI lock. This has been working without issue. I noticed on one computer (running Windows 11 22H2, latest build) that Credential Guard shows as not running in in System Information:

Trying to determine why Credential Guard isn't running, I looked at the event logs only to find that they report it started without issue, after reboot, Wininit Event ID 13 appears with the following message: "Credential Guard was started and will protect LSA credentials."

This computer was running credential guard before without issue, I don't know what changed and why it claims to not be running anymore. Other computers in our environment that are identically configured (hardware and software) are running Credential Guard without issue. There are no Credential Guard related events at any time that imply it has failed to start. Only this event 13 showing it is started and running.

Any idea what is going on here? Is there a way for me to confirm the status of Credential Guard given the conflicting information shown above?
