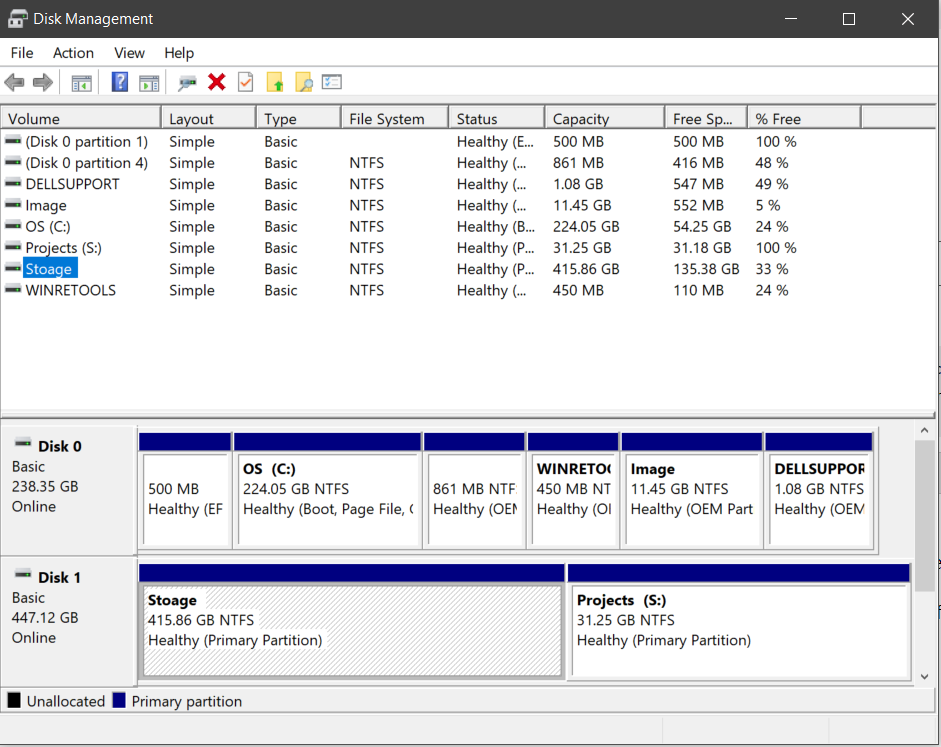

Windows 10: Disk partition not showing up in File Explorer, yet shows up in Disk Management.

Hi there,

Today I have created a new partition on my disk so that I could store specific files on it in order to keep things clean.
Somehow after creating it, immediately after formatting the new partition to NTFS the newly created one showed up in file explorer as it should be, but the one from which this space has been allocated has disappeared.

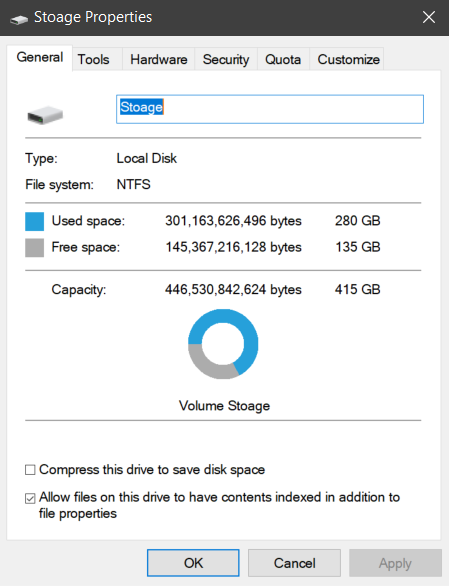

I tried checking for errors via the error checking tool provided in the proprieties of the disks, but the tool won't even start for this drive.

Got a lot of files on that drive so formatting it isn't an option.

I would appreciate your help.
Thank you for your time.

:)



Disk showing in Disk Management, But not DiskPart

Hello!

So, today I was doing a friend a favor, he had an old 1TB hard drive with important photos on it. He said he would appreciate it if I could move the photos to a different hard drive.

So, I hooked it up to my self-built PC (with a SATA port) and it didn't show up in file explorer.

So, I checked Disk Management to see if it would show up there, and it did. I later realized why it didn't show up in file explorer (Because it didn't have a drive letter). In Disk Management, I right clicked the primary partition only to find that it wouldn't
let me assign a drive letter.

I remembered there was another way to assign drive letters, with DiskPart. So I typed this into Command Prompt:

diskpart > list volume

In DiskPart, It showed the drive's EFI system partition (partition 1) but not the (Healthy) Primary Partition (partition 2).

Also in DiskPart, I could type "list disk" and it would show me the 1TB drive, if I then typed "list partition" it would show me the different partitions, but wouldn't let me assign a drive letter to them.

In summary, Disk Management showed the partition, but wouldn't assign a drive letter. DiskPart showed the partition 1, but not the primary partition.

My objective is to show the photos located on the 1TB drive's 2nd partition without erasing it.

I would be happy to add pictures if necessary.

Thanks!



Disk management console view is not up-to-date

i dont know how to fix your disk management, but i can fix your partition problems...




open up Command Prompt with admin rights. (Right click, run as admin)


enter in
DISKPART
list disk

then find the Disk number for your Raid array... lets call it number 7 ( you can tell what disk is what by the total size)
type in

Select Disk 7
List Partition (will give you a list of all the partitions..)
Select Partition 1 (im assuming you only have 1 partition on Disk 7) repeat this step if you have more partitions.
ASSIGN


that should get the array up and running ready to use.


EDITED.

any problems, post back ^^


Still EDITING *Stick Out Tongue

side question, have you tried restarting the PC?



Help! Data partition not showing under my computer

This is happening on a windows 2000 server. Our second partition of the system, for data is not showing under my computer. Here are the properties of it in disk management:





Now under logical drives its listed as F and shows free space available.

Suggestions on how to fix this?
