Windows 10: Event ID 512 StorDiag Get Storage Firmware Information

Hello all,


Does anyone know why this error is reported in the event viewer.

I am interested in fixing this problem.

- <Event xmlns="http://schemas.microsoft.com/win/2004/08/events/event">
- <System>
<Provider Name="Microsoft-Windows-StorDiag" Guid="{f5d05b38-80a6-4653-825d-c414e4ab3c68}" />
<EventID>512</EventID>
<Version>1</Version>
<Level>2</Level>
<Task>200</Task>
<Opcode>101</Opcode>
<Keywords>0x800000000000040</Keywords>
<TimeCreated SystemTime="2021-03-19T20:51:48.342862200Z" />
<EventRecordID>44</EventRecordID>
<Correlation />
<Execution ProcessID="4" ThreadID="224" />
<Channel>Microsoft-Windows-Storage-ClassPnP/Operational</Channel>
<Computer>DESKTOP-P4N2BH3</Computer>
<Security UserID="S-1-5-18" />
</System>
- <EventData>
<Data Name="DeviceGUID">{a12a8df7-153b-1a51-550f-3829347eee6b}</Data>
<Data Name="Status">0xc000000d</Data>
<Data Name="InputBufferLength">16</Data>
<Data Name="OutputBufferLength">56</Data>
<Data Name="DeviceNumber">1</Data>
<Data Name="PortDriverCodeSet">7</Data>
<Data Name="FirmwareGetInfoSupport">0</Data>
<Data Name="QueryFlag">0</Data>
</EventData>
</Event>



Thank you

:)



Event ID 504 and 507 from StorDiag with Windows 10

On a system that sfc, chkdsk is not showing any errors and was clean built last week.

Looking into the event viewer looking at the logs in Microsoft-Windows-Storage-ClassPnP/Operational

I see several error messages with source StorDiag looking at Flash Drives - and none are connected during each start up.

Completing a failed IOCTL request. - Error 504 (12 times)

Completing a failed non-ReadWrite SCSI SRB request - Error 507 (12 times)

All is for the same serial number device

SerialNumber
37270751DBAF002518491

@Microsoft What is this new "undocumented feature"?



Event ID 504 and 507 from StorDiag with Windows 10

In many cases they do seem to be so I won't really argue with you there.

I looked into this a bit more. First of all there seem to be hardly a handful of mentions of this issue online. Besides

http://www.mcbsys.com/blog/2016/08/stordiag-errors-after-windows-10-upgrade/ mentioned on the first page, there's a forum post at

https://answers.microsoft.com/en-us/windows/forum/windows_10-hardware/windows-10-slow-after-upgrade-stordiag-logging/5736fef5-d803-4289-8d9e-78e67810290f and on the HP forum by the same user at

http://h30434.www3.hp.com/t5/Desktop-Operating-Systems-and-Recovery/Windows-10-Upgrade-Runs-Slow/td-p/5385393, plus one mention at

http://bbs.hitechcreations.com/smf/index.php?topic=373921.0. So either this isn't a widespread problem, or else very few people have bothered to look at the relevant event logs.

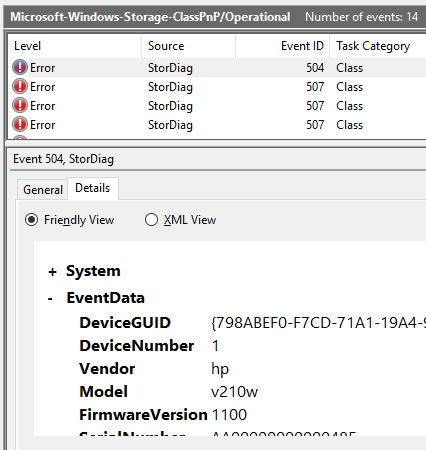

I also took a look at the logs of all the Win10 systems at hand. Strangely none of the laptops upgraded from XP/Vista/Win7/8/8.1 to Win10 had any card reader related errors at all! Only on a single system did I find the StorDiag 504/507 errors in question,
and that too due to an HP USB stick apparently:





For what it's worth, even if I had many more of these errors show up due to a card reader I'd probably just ignore them. Sure, it would be good if MS got off its *** and fixed the bug (if indeed it is one), but meanwhile the events don't affect me in any
way whatsoever so why would I worry about them unnecessarily?



Event ID 504 and 507 from StorDiag with Windows 10

HI Mark,



Thanks for your help and time.



Well, your solution like a “Bypass” sounds good, but it is not a fix really. Since I will need to buy another SD card reader or so.



I don’t think the problem are in sd card reader device, because I got two installed on my PC with same problem.



As I said it appear to be Drivers issues...

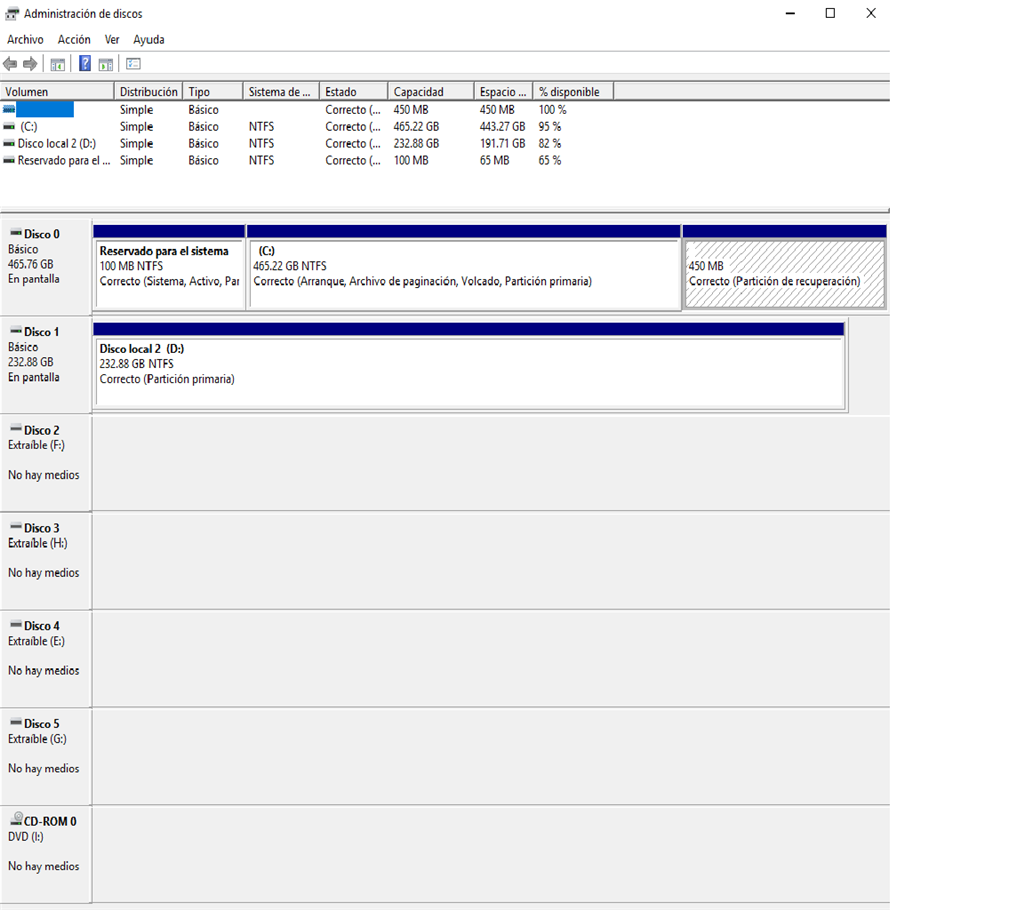

For example: if I see in “management drives” .... it shows “Disco 2”, “Disco 3”, “Disco 4” and “Disco 5” like if those were disks drives, but really are “empties sd/usb card reader devices”.



So, in my opinion the OS is virtualizing these devices as what they are not.



Back to the original post, the ID Event 504/507 is related with I said.



Think about this “Completing a failed non-ReadWrite SCSI SRB request”, I think the OS is requesting an answer from “disk drive” but devices not responce because it is just an empty sd/usb card reader.



Conclussion, I am not looking for guilty but solutions.



Another “Bypass” if event’s error concerns you, just disable StorDiag error's event report. But not for me.



Please, take a look inside this and advice me anything you find.



Thanks
