Windows 10: Failure in preparing the backup image of one of the volumes in the backup set – 0x807800C5,...

If when you attempt to create a system image backup on your Windows 10 device, and the operation fails with the error codes 0x807800C5 and 0x80780081, then this post is intended to help you. In this post, we provide the most suitable solutions to quickly resolve this issue.

Failure in preparing the backup image of one of the volumes in the backup set

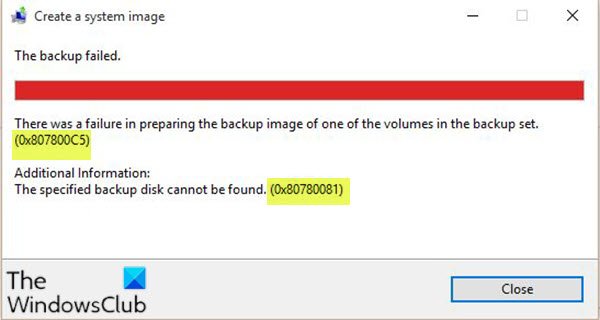

When you encounter this issue, you’ll receive the following full error message;

Create a system image
The backup failed.
There was a failure in preparing the backup image of one of the volumes in the backup set. (0x807800C5)
Additional Information:
The specified backup disk cannot be found. (0x80780081)
​

System Image Backup errors 0x807800C5 and 0x80780081


If you’re faced with any of these error codes, you can try our recommended solutions and see if any of them help you resolve the issue.

1. Free up storage space on the target drive
2. Remove the EFI Partition from the old drive (applies to multiple disk setup)
3. Temporarily disable your security software
4. Execute the operation in Clean Boot State
5. Use third-party imaging software

Let’s take a look at the description of the process involved concerning each of the listed solutions.

1] Free up storage space on the target drive


If you’re trying to create the system image on an external drive with insufficient storage space, you’re most likely to encounter this error. In which case, you should free up disk space on the target drive, by transferring your files to another drive or move your file to a cloud storage service.

After you have moved your files from the disk or there is no important data on the target disk, you can now format it to NTFS and then start to create a system image again.

2] Remove the EFI Partition from the old drive (applies to multiple disk setup)


PC users who had the following similar configuration were experiencing this issue:

Windows was originally installed on a disk but later moved/migrated the installation to another disk on the same computer. Formatted the old disk to use half for the System Image Backup and a half for storage. Now, creating the system image backup on the old disk triggers these two errors. Here, the problem was that the old drive still had those two partitions ( EFI System Partition and Recovery Partition) from the previous Windows.

In this scenario, to fix the issue, open Disk Management and delete those two partitions. Alternatively, you can use DiskPart to delete the partitions. Once deleted, restart your computer and try the system image backup again – the operation should complete without these errors.

3] Temporarily disable your security software


You may temporarily disable your security software and then run System Restore and see if that helps you.

4] Execute the operation in Clean Boot State


A Clean Boot is performed to start Windows by using a minimal set of drivers and startup programs. This helps eliminate software conflicts. In a clean boot state, you can see if the operation completes successfully.

5] Use third-party imaging software


If neither of the above solutions worked, you can use any of the 3rd party Imaging, Backup, and Recovery Software for Windows 10 to create the system image backup.

Hope this helps!

Related posts:

• System Image Backup fails with error codes 0x807800C5 and 0x8078004F.
• Volume Shadow Copy Service operation failed (0x807800A1), The writer experienced a transient error (0x800423F3).

This article Failure in preparing the backup image of one of the volumes in the backup set – 0x807800C5, 0x80780081 first appeared on TheWindowsClub.com.

read more...



Getting Error message" There was failure in preparing backup image of one of the volumes in the backup set with Error code :0x807800C5"

Original title: Windows 10 backup

I try to make one backup using Backup and Restore from Control Panel. I use Touro Mobile 500GB, USB 3 I select "Let Windows to choose", and was All users file and System Image.I received "There was failure in preparing backup image of one of the volumes
in the backup set. Deteils:The mounted backup volume is inaccesible.Please retry the operation.Error code:0x807800C5"How to resolve?



windows 10 system backup. There was failure in preparing the backup image of one of the volume in backup set (0x807800C5)

After I started getting "No Boot device found", which gets resolved after restarting, I decided to backup to a Seagate plus back drive which was originally for Mac. I reformatted it and backed up libraries, contacts, favorite etc. No issues.

However, when I try to do system image backup, I get this:

The back up failed

-------------------------

There was failure in preparing the backup image of one of the volume in backup set (0x807800C5)

Additional Information:

The mounted backup volume is inaccessible. Please retry the operation (0x8078004F)

I retried 3 times but the same error. It fails when backing the EFI volume ? partition? ( I forget what it said) part.

Thanks and regards,

Sanakr



Error: "There was a failure in preparing the backup image of one of the volumes in the backup set. (0x807800C5) and 0x8078004F" on Windows 10

Hi,

Thank you for posting in Microsoft Community, we appreciate your interest in Windows 10.

I understand the inconvenience caused to you in creating the backup on your device, we will help you with this issue.

I suggest you to refer to the below thread replied by Ashish Sondhi
on June 20, 2015 and check if your issue matches with the same.

If so, try the troubleshooting steps mentioned and check if your issue is resolved.

Getting error message "There was a failure in preparing the backup image of one of the
volumes in the backup set. (0x807800C5)" while doing System Image Backup

I suggest you to refer to the Microsoft article about: What if something
goes wrong in File History? and check if it helps.

(The above articles applies to Windows 10 as well)

Hope it helps. Reply to the post with an updated status of this issue for further assistance.
