Windows 10: group icons are merged in devices and printers

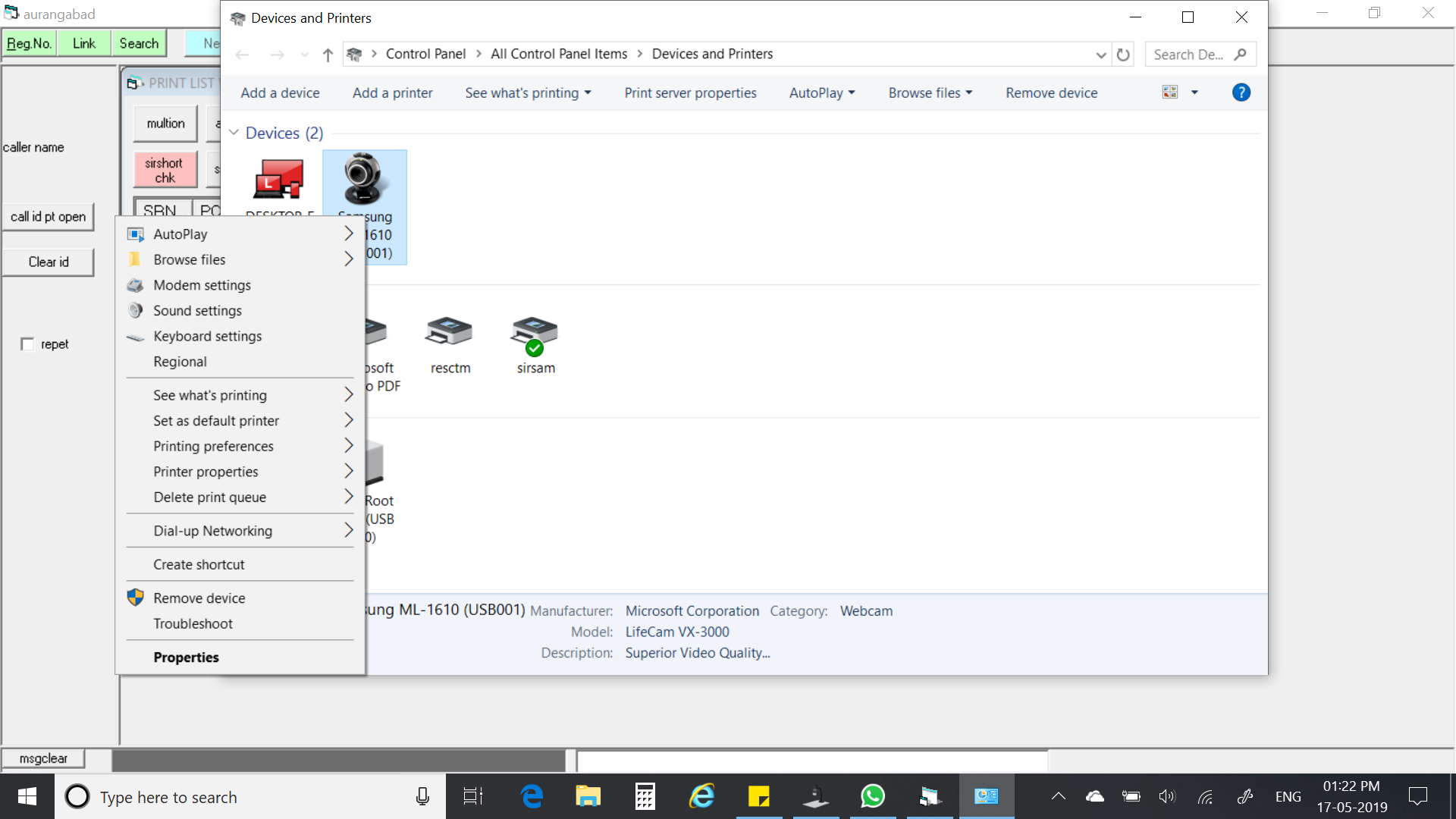

my icons in devices and printer are merged on on group see the picture below modem barcode reader and two printers are merged in one icon . how can i separate this . ...DR RAJ BONDE



:)



Change Device Icons with Custom Icons - Devices & Printers


Hi All,

Wondering if you can offer me some pointers here......

Brink put together an excellent tutorial on this process for Windows 7 (http://www.sevenforums.com/tutorials...tom-icons.html) and with some adaption for the revisions to the Metadata Authoring Wizard contained in the Windows 10 Drivers Kit I have already customised my device icons and even provided some (limited) assistance to others grappling with the task (iPhone shown as Unspecified in Devices and Printers).

All that is, with a couple of pesky exceptions namely the main system icon which remains set at it's somewhat bland generic Windows 10 image and I am at a loss as to how to change it to a more representative custom image....

Secondly, the (ugly) generic icon representing the WiFi Gigabit Router (always shown under the custom name assigned to my network) is inaccessible ("greyed out") such that selecting properties (right click) and bring up the properties dialogue offers the usual "General", "Hardware" and "UPnP" tabs but the "Properties" button on the "Hardware" tab is "greyed out" and thus non of the required Hardware ID's can be accessed.

Returning to the "System" icon customisation I am able to access the Properties and from the Hardware Tab to select "ACPI x64-based PC" from a very comprehensive "System Devices" list and then to select the "Properties" button and from the resulting "Details" tab selecting the "Hardware ID" simply reveals just "acpiapic"

Using the Metadata Authoring Wizard and selecting "Device Only Metadata" for the "Package Type" (step 1) and then "Computer*Biggrinesktop" or "Computer:Tower" from the tree in "Device Categories" (step 2) produces the following error (see screen shot)...





choosing "Yes" reverts the selection in (step 1) to "Internal Devices" whilst selecting "No" simply deselects the chosen "Device Categories" (step 2).

Proceeding as an "Internal Device" to "Locales" (step 3) and selecting "English (United Kingdom) en-GB" from the tree allows proceeding to "Device Info" (step 4) into which under "Model Name" the following text string representing my Motherboard was inserted "Asus P6T7 WS SuperComputer 64 Bit Windows PC" along with the corresponding details for "Manufacturer", "Model Number", "Description 1" & "Description 2" together with a representative icon. See screenshot.





Proceeding to "Hardware Info" (step 5) and opting to add a Hardware ID offers the following choices which with the assistance of CPU-Z I completed with the representative entries on the following screenshot before generating the error message in the subsequent screenshot referring to two GUID's hardware for which I have been unable to identify in either the Windows directory or the Registry....





see here





Cancelling the error and proceeding to "App Info" (step 6) which I left unfilled (default?) then to "Windows Info" (step 7) in which all I did was to check the box for the item "Show the device when it is disconnected" moving finally to "Finish" which resulted in the error message displayed in the final screenshot below





For ease of reading the full text reads:

The following errors must be fixed before your metadata package can be created:


Hardware info


: Each OEM hardware ID must have associated SMBIOS information to successfully submit to the Windows Hardware Dev Center Dashboard. If you have a device manifest file (devicemanifest-ms), you should edit it instead of editing the device metadata file (devicemetadata-ms). Otherwise, you can enter the SMBIOS information on the Hardware Info page.

Hopefully, someone can identify exactly what I have omitted....

One final thought, is customising this item likely to have any influence on the "Digital Entitlement" held by MS's servers for automatic activation/re-activation?

All advice much appreciated as ever....

Thanks in advance,



Representative Printer Icons Replaced by Generic Printer Icons

Hello,



Thank you for posting your query in Microsoft Community.



I request you to remove the icon and add the icon again.

If this doesn't helps, uninstall and Reinstall the Printer's Driver.

Step 1: Uninstall the Printer's Drivers

• Press “Windows Logo” + “X” keys on the keyboard.
• Click on “Device Manager” from that list.
• Search for the Printer from the device list, right click on it and then select “Uninstall”. On the un-installation window, if you have an option: “Delete the driver software for this device” you may select that and then remove
  the corrupted drivers from the computer.
• Follow the on-screen instructions to complete it and then restart the computer if prompted.

After the restart, please go ahead with the next steps to install the latest drivers and check if that resolves the issue.

Update Driver Software from the Manufacturer’s website:



Step 2:Go to the Printer manufacturer’s website and search for the latest Windows 10 drivers available for the printer model and then install it by following the instructions given in the website.

I hope this helps you. If you have any further queries, feel free to contact us. We will be happy to help you.



Thank you.



Missing Printer Icon in Devices and Printers for some HP models

While setting up a few desktop PCs, I found the icon for some HP printers was combined into the computer icon under Devices. If Devices and Printers is opened, these printers used to be listed under the Printers category in Windows 7. Other HP printers I've
seen are listed correctly in Windows 10 such as the LaserJet 4150. At first I thought the icon was just missing. The printer would show up as a printer in programs such as Wordpad or Excel but would not show up in either the Printers & Scanners modern app
or in Devices and Printers in the Control Panel. I finally noticed that the Computer listed under Devices had these HP printers settings combined into it when you right click it. A picture is worth 1000 words here.

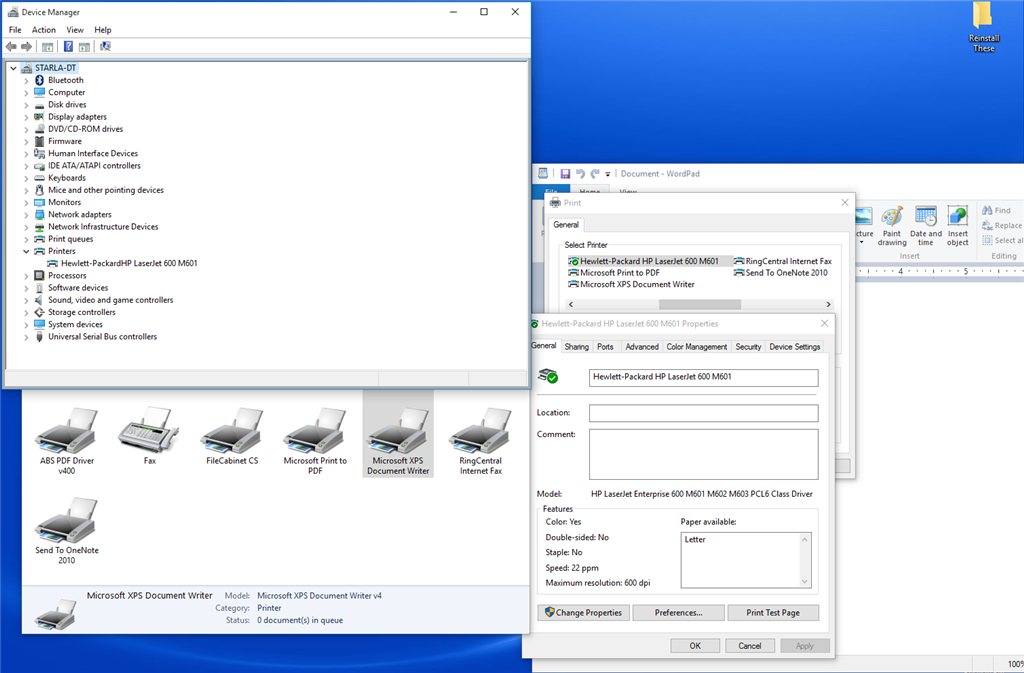

The above shot shows the LaserJet 601M installed. It's listed in Device Manager and as a printer in Wordpad. However, it is not listed under Printers in Devices and Printers with the other 7 printers.

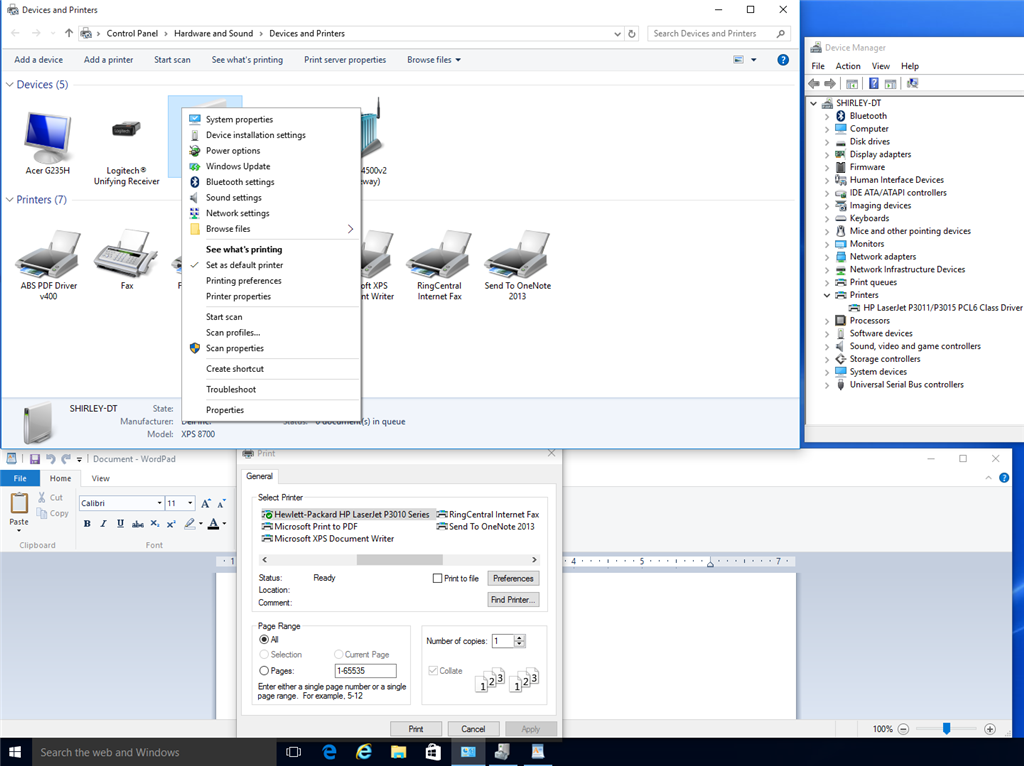

The above shot shows the LaserJet P3010 listed only if you right click on SHIRLEY-DT icon (the computer itself) listed in the Devices category. It is not listed with the other printers. This behavior is not only inconsistent with older versions of Windows
but with other manufacturer's printers and even other models of HP printers. It can not be seen in the above screenshot but, the SHIRLEY-DT icon even has the big, green checkmark on it that is normally associated with your default printer.
