Windows 10: H: 100mb system partition?

Discus and support H: 100mb system partition? in Windows 10 Ask Insider to solve the problem; [ATTACH] Good evening! So, for some reason, i have an H: partition. Can't be erased to extend C: and aparently it's being used by the System. Now... Discussion in 'Windows 10 Ask Insider' started by /u/ZombieCharm, Sep 19, 2020.

  1. /U/ZOMBIECHARM
    /u/ZombieCharm Win User

    H: 100mb system partition?

    /u/ZombieCharm, Sep 19, 2020
    #1
  2. SATONTACKS
    Satontacks Win User

    Constant alerts of 100mb Data partition after updating to windows 10 from windows 7.

    I had downloaded the win10 update a while ago but was putting off upgrading till I knew more about it. I woke up one morning to find that it decided to do it on its own. Oh well. All seems to be working fine except 1 thing. Ever since the upgrade I get
    a msg every few minutes telling me that I am running out of space on my drive H:. It is a 100mb partition that I believe had something to do with windows 7 and now is labeled as "Data". As you can see it is only listed as a Primary partition. I've read
    other posts about people wanting to delete the 100mb partition but there's all list system. The partition isn't even listed as active.

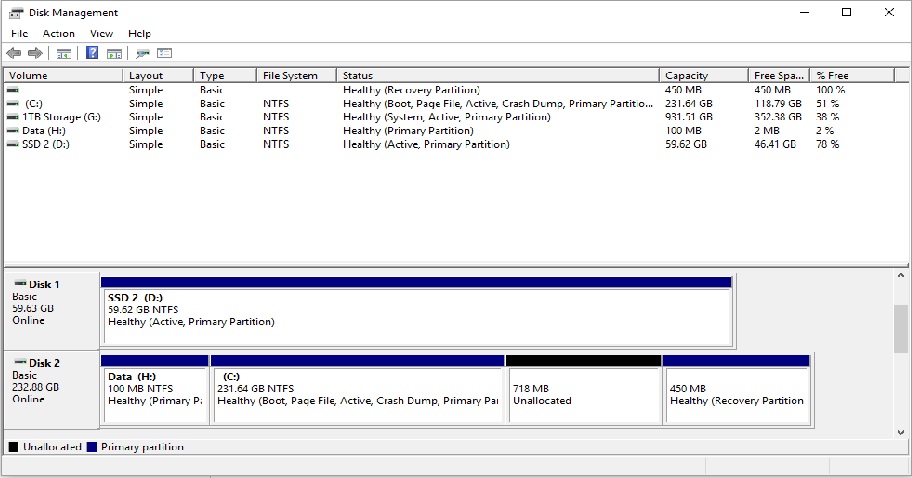

    H: 100mb system partition? 7193e503-8f76-4284-82c7-df228c4f7492.jpg
    This
    is all that's in it. When I select everything it comes to no where near the 100mb. about 15mb. Yet Disk management says only 2mb

    remain. Can I get rid of this partition? Or is there a way to extend the partition so I stop getting the messages? Ive tried shrinking the C: drive partition to extend the data(HH: 100mb system partition? :) partition but it stays greyed out.

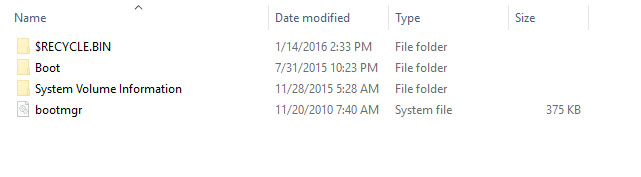

    H: 100mb system partition? 2dbd4985-b630-42bf-ab72-f4330a1099c3.jpg

    Satontacks, Sep 19, 2020
    #2
  3. POOLMON
    poolmon Win User
    Recovery Partition vs System Reserved Partition

    Thanks for all the info guys.

    Both original & target SSD's are listed as MBR as opposed to UEFI. I may have created a partition unknowingly in getting the original/new unformatted drive recognized, but I don't recall taking any steps that Windows did not step me through.

    Not that an upgrade to WIN 10 Pro is contemplated, but I suspect that having no System Reserved partition will not allow that to happen, after seeing how the original WIN 10 upgrade created a problem for some WIN 7 users that had a smaller 100mb vs 500mb System Reserved partition.

    poolmon, Sep 19, 2020
    #3
  4. NEEMOBEER
    Neemobeer Win User

    H: 100mb system partition?

    Drive H: reserved for system nearly full

    If it's the system partition, it typically contains your boot information for starting the computer. It doesn't typically get assigned a drive letter. You can press [Windows key + x] select "Disk Management". If you see the H drive with the label "system partition" then that is all it is. Assuming the partition is on your main disk (Disk 0) you can remove the drive letter as follows
    • Open an elevated command prompt
    • Type diskpart
    • Type list disk
    • Identify which disk the system partition is on (you can do this from disk management)
    • Select the disk withselect disk #
    • Now list the partitions with list vol
    • Look for the one with System under the info column
    • Select it with select vol #
    • Now remove the drive letter with ​remove letter=H

    Neemobeer, Sep 19, 2020
    #4
