Windows 10: Help! I accidentally reset my BIOS

Yesterday I was verifying my CPU temperature in BIOS and while doing that when I wanted to leave I accidentally pressed the wrong button and it reset my BIOS and now I cannot boot into Windows coming up with the error "INACCESIBLE BOOT DEVICE". I can get into recovery and BIOS. I asked help from an expert and he found out that in CMD the system appears as "X" instead of "C". Help me please, I don't want to reinstall Windows and start over again from zero. Btw I have an ASUS Vivobook 15 Oled running Windows 11.

:)



bios

Hi all i am new in this forum, i need meanings step by step of each item listed in the bios Phoenix-Award



Resetting Bios Password

I am doing some spring cleaning, getting rid of old desktops, laptops, and routers. Regarding the computers, I am wanting to wipe the hard drives with Darik's Boot and Nuke software. When I booted up one old Dell desktop from 2001, I learned that it requires a BIOS password. Why I ever put one on is beyond me. Unfortunately, I have forgotten the password. The rest of this message will be about wanting to know if my understanding for resetting the BIOS password is correct.

Technically, this thread/message isn't about Windows 10 specifically. But it does relate to hardware, and I am hoping that it would apply to a significant number of computers, so I hope this message is okay.

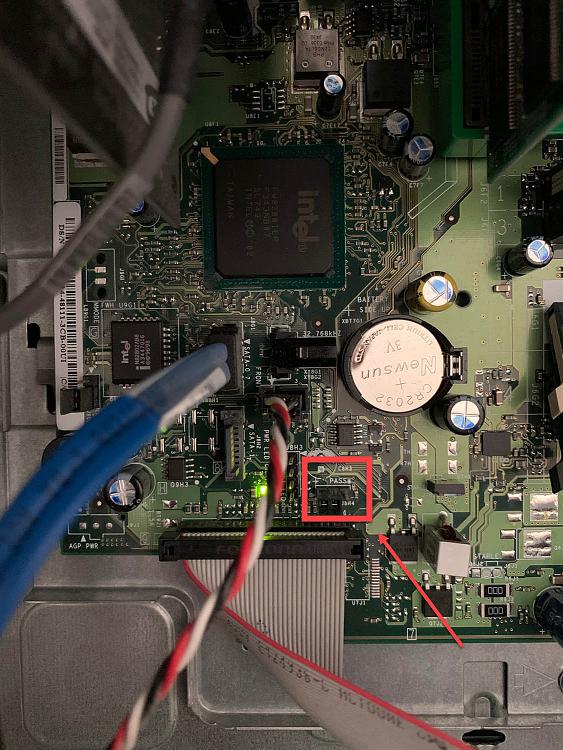

I called Dell, and the technician said that I needed to reset the jumper on motherboard to reset the BIOS password. After opening the case on my old Dell computer and hunting on the internet, this is the what I think I have learned. I will present photograph of a portion of the motherboard.





I have put a red rectangular box around what I think is the jumper for the BIOS. I note that "PASS" is written on the motherboard beside those three pins.

I believe these are steps I need to follow. Please correct me if I am wrong.

1. Turn off and unplug the computer. (It has been off and unplugged for about ten plus years. I just plugged it in today. I am not sure if this information is relevant. Perhaps it helps with regard to the motherboard's battery.)
2. Open the case and locate those "PASS" pins again.
3. Switch the jumper from the current two pins to include the third pin and middle pin. Leave it there for 5 seconds or more. In other words, move the jumper over one pin for a few seconds.
4. Reset the jumper back to its original position with the original pins.
5. Plug in the computer, and attempt to boot it up.
6. Assuming it boots up, open CD tray and put in Darik's Boot and Nuke software and follow the steps.

Is there any information that I am missing? Do I have the correct location for the jumper? Are my steps correct?

Thank you for your help.



wrong bios programmed on my card what now?

are you kidding? or is this being lost in language barriers?(if so, then id suggest trying google translateon the list above, or reading it several times, im sorry that i cant help with that part) the PCIe slot is what you need, thats where you plug the GPU into. follow the step by step guide, that is your solution. VGA= Video Graphics array, or adapter in this case, AKA GPU, Aka, Video Card.

The 2nd gpu acts as a way to boot into OS since you're not able to do so with the damaged GPU. I don't know what your system specs are but if you have onboard graphics enable them in your bios and then reset your PC or do it after a reset depending on what your motherboard requires that will allow you to boot into your operating system then follow the steps after number three in the list above.( note that if you do not have built-in graphics on your CPU this is where you will use a second GPU )

i hope this helps......Best of luck, i have 35minutes to get dressed, and be on a transport to Kessel.......another day covered in Spice, *Frown (atleast im working in the Refinery *Wink )
