Windows 10: High lattency and cracking sound when playing real-time audio and video and CPU is slow

Hi

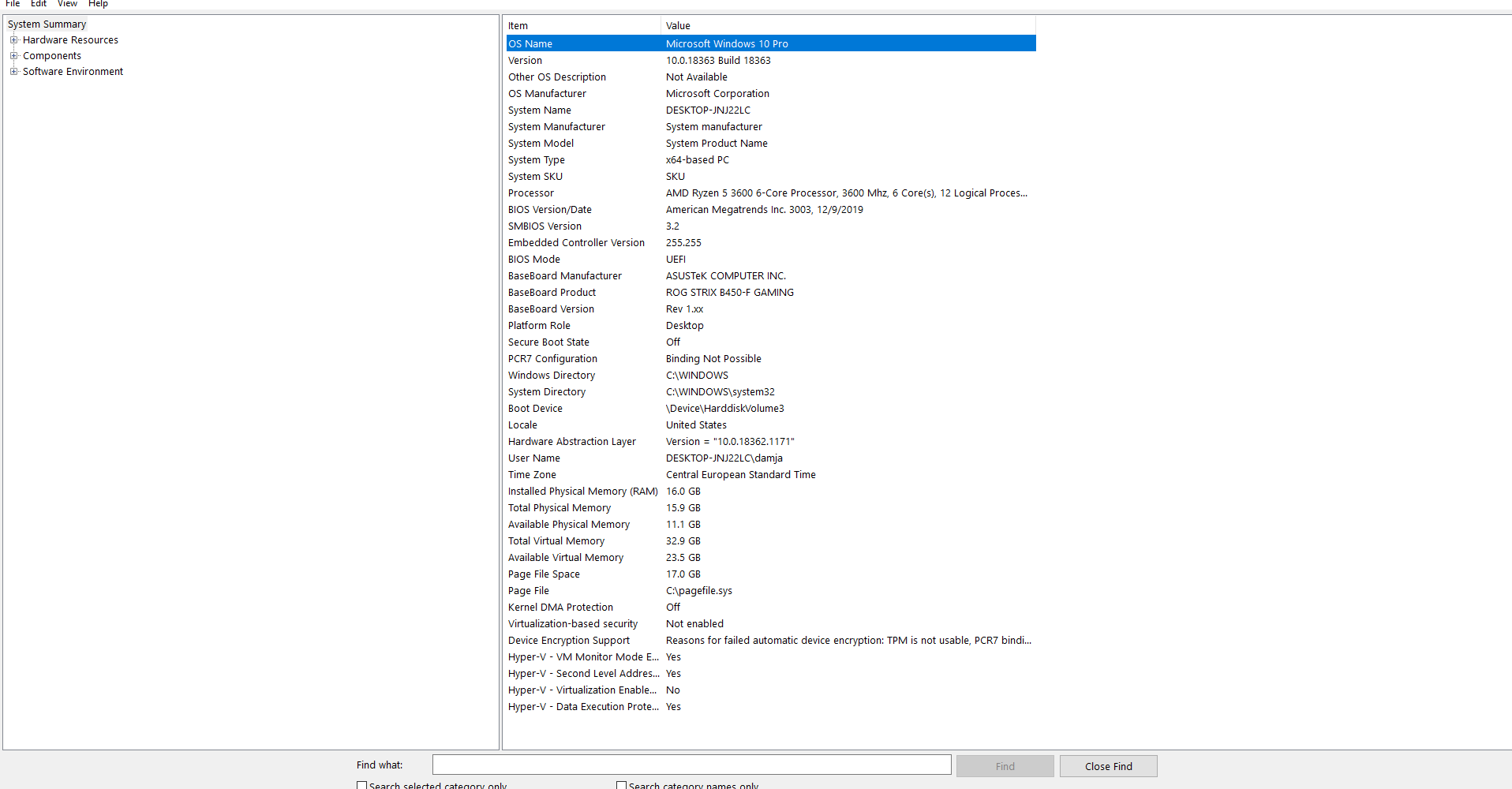

I have a freshly build PC with the following configuration: First pic bellow

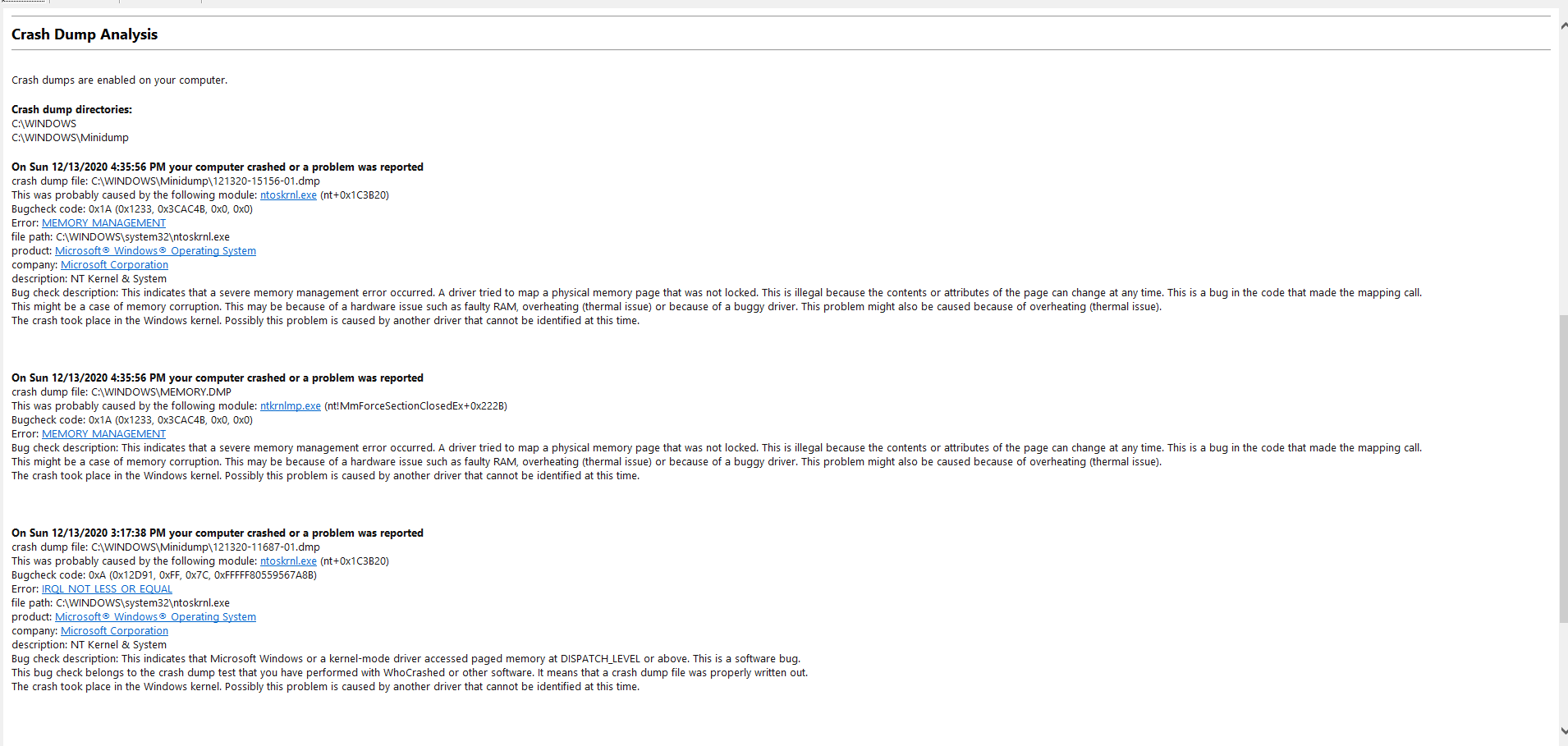

I have had troubles with some blue screen of death errors these days second picture bellow WhoCrashed

Then I updated my drivers and the errors reduced but i still have cracking sound and video and audio out of sync when playing live videos Youtube.


Then I ran LatencyMon and the results were:


CONCLUSION

_________________________________________________________________________________________________________

Your system appears to be having trouble handling real-time audio and other tasks. You are likely to experience buffer underruns appearing as drop outs, clicks or pops. One or more DPC routines that belong to a driver running in your system appear to be executing for too long. At least one detected problem appears to be network related. In case you are using a WLAN adapter, try disabling it to get better results. One problem may be related to power management, disable CPU throttling settings in Control Panel and BIOS setup. Check for BIOS updates.

LatencyMon has been analyzing your system for 0:05:22 h:mm:ss on all processors.





_________________________________________________________________________________________________________

SYSTEM INFORMATION

_________________________________________________________________________________________________________

Computer name: DESKTOP-JNJ22LC

OS version: Windows 10 , 10.0, build: 18363 x64

Hardware: ASUSTeK COMPUTER INC., ROG STRIX B450-F GAMING

CPU: AuthenticAMD AMD Ryzen 5 3600 6-Core Processor

Logical processors: 12

Processor groups: 1

RAM: 16310 MB total





_________________________________________________________________________________________________________

CPU SPEED

_________________________________________________________________________________________________________

Reported CPU speed: 360 MHz



Note: reported execution times may be calculated based on a fixed reported CPU speed. Disable variable speed settings like Intel Speed Step and AMD Cool N Quiet in the BIOS setup for more accurate results.



WARNING: the CPU speed that was measured is only a fraction of the CPU speed reported. Your CPUs may be throttled back due to variable speed settings and thermal issues. It is suggested that you run a utility which reports your actual CPU frequency and temperature.







_________________________________________________________________________________________________________

MEASURED INTERRUPT TO USER PROCESS LATENCIES

_________________________________________________________________________________________________________

The interrupt to process latency reflects the measured interval that a usermode process needed to respond to a hardware request from the moment the interrupt service routine started execution. This includes the scheduling and execution of a DPC routine, the signaling of an event and the waking up of a usermode thread from an idle wait state in response to that event.



Highest measured interrupt to process latency µs: 20613.10

Average measured interrupt to process latency µs: 10.653466



Highest measured interrupt to DPC latency µs: 20607.40

Average measured interrupt to DPC latency µs: 6.332420





_________________________________________________________________________________________________________

REPORTED ISRs

_________________________________________________________________________________________________________

Interrupt service routines are routines installed by the OS and device drivers that execute in response to a hardware interrupt signal.



Highest ISR routine execution time µs: 82.520

Driver with highest ISR routine execution time: ntoskrnl.exe - NT Kernel & System, Microsoft Corporation



Highest reported total ISR routine time %: 0.007934

Driver with highest ISR total time: ntoskrnl.exe - NT Kernel & System, Microsoft Corporation



Total time spent in ISRs % 0.008587



ISR count execution time <250 µs: 42533

ISR count execution time 250-500 µs: 0

ISR count execution time 500-999 µs: 0

ISR count execution time 1000-1999 µs: 0

ISR count execution time 2000-3999 µs: 0

ISR count execution time >=4000 µs: 0





_________________________________________________________________________________________________________

REPORTED DPCs

_________________________________________________________________________________________________________

DPC routines are part of the interrupt servicing dispatch mechanism and disable the possibility for a process to utilize the CPU while it is interrupted until the DPC has finished execution.



Highest DPC routine execution time µs: 27914.160

Driver with highest DPC routine execution time: ndis.sys - Network Driver Interface Specification NDIS, Microsoft Corporation



Highest reported total DPC routine time %: 0.141193

Driver with highest DPC total execution time: Wdf01000.sys - Kernel Mode Driver Framework Runtime, Microsoft Corporation



Total time spent in DPCs % 0.444652



DPC count execution time <250 µs: 778750

DPC count execution time 250-500 µs: 0

DPC count execution time 500-999 µs: 17048

DPC count execution time 1000-1999 µs: 121

DPC count execution time 2000-3999 µs: 60

DPC count execution time >=4000 µs: 0





_________________________________________________________________________________________________________

REPORTED HARD PAGEFAULTS

_________________________________________________________________________________________________________

Hard pagefaults are events that get triggered by making use of virtual memory that is not resident in RAM but backed by a memory mapped file on disk. The process of resolving the hard pagefault requires reading in the memory from disk while the process is interrupted and blocked from execution.



NOTE: some processes were hit by hard pagefaults. If these were programs producing audio, they are likely to interrupt the audio stream resulting in dropouts, clicks and pops. Check the Processes tab to see which programs were hit.



Process with highest pagefault count: perfwatson2.exe



Total number of hard pagefaults 27194

Hard pagefault count of hardest hit process: 18795

Number of processes hit: 21





_________________________________________________________________________________________________________

PER CPU DATA

_________________________________________________________________________________________________________

CPU 0 Interrupt cycle time s: 22.787251

CPU 0 ISR highest execution time µs: 82.520

CPU 0 ISR total execution time s: 0.156466

CPU 0 ISR count: 22512

CPU 0 DPC highest execution time µs: 19336.220

CPU 0 DPC total execution time s: 8.666823

CPU 0 DPC count: 562835

_________________________________________________________________________________________________________

CPU 1 Interrupt cycle time s: 14.557429

CPU 1 ISR highest execution time µs: 42.750

CPU 1 ISR total execution time s: 0.081105

CPU 1 ISR count: 5089

CPU 1 DPC highest execution time µs: 15605.680

CPU 1 DPC total execution time s: 1.622277

CPU 1 DPC count: 25236

_________________________________________________________________________________________________________

CPU 2 Interrupt cycle time s: 12.602182

CPU 2 ISR highest execution time µs: 77.340

CPU 2 ISR total execution time s: 0.075728

CPU 2 ISR count: 4362

CPU 2 DPC highest execution time µs: 27914.160

CPU 2 DPC total execution time s: 1.429423

CPU 2 DPC count: 26734

_________________________________________________________________________________________________________

CPU 3 Interrupt cycle time s: 12.377236

CPU 3 ISR highest execution time µs: 27.980

CPU 3 ISR total execution time s: 0.009545

CPU 3 ISR count: 716

CPU 3 DPC highest execution time µs: 17323.10

CPU 3 DPC total execution time s: 0.434953

CPU 3 DPC count: 27054

_________________________________________________________________________________________________________

CPU 4 Interrupt cycle time s: 12.841308

CPU 4 ISR highest execution time µs: 0.0

CPU 4 ISR total execution time s: 0.0

CPU 4 ISR count: 0

CPU 4 DPC highest execution time µs: 9087.010

CPU 4 DPC total execution time s: 0.696490

CPU 4 DPC count: 31466

_________________________________________________________________________________________________________

CPU 5 Interrupt cycle time s: 11.271110

CPU 5 ISR highest execution time µs: 0.0

CPU 5 ISR total execution time s: 0.0

CPU 5 ISR count: 0

CPU 5 DPC highest execution time µs: 405.010

CPU 5 DPC total execution time s: 0.443916

CPU 5 DPC count: 20921

_________________________________________________________________________________________________________

CPU 6 Interrupt cycle time s: 15.741365

CPU 6 ISR highest execution time µs: 0.0

CPU 6 ISR total execution time s: 0.0

CPU 6 ISR count: 0

CPU 6 DPC highest execution time µs: 498.40

CPU 6 DPC total execution time s: 0.512179

CPU 6 DPC count: 18534

_________________________________________________________________________________________________________

CPU 7 Interrupt cycle time s: 14.621041

CPU 7 ISR highest execution time µs: 0.0

CPU 7 ISR total execution time s: 0.0

CPU 7 ISR count: 0

CPU 7 DPC highest execution time µs: 442.160

CPU 7 DPC total execution time s: 0.189971

CPU 7 DPC count: 5593

_________________________________________________________________________________________________________

CPU 8 Interrupt cycle time s: 17.954542

CPU 8 ISR highest execution time µs: 3.840

CPU 8 ISR total execution time s: 0.003874

CPU 8 ISR count: 4728

CPU 8 DPC highest execution time µs: 475.480

CPU 8 DPC total execution time s: 1.647292

CPU 8 DPC count: 28247

_________________________________________________________________________________________________________

CPU 9 Interrupt cycle time s: 16.194511

CPU 9 ISR highest execution time µs: 3.670

CPU 9 ISR total execution time s: 0.000506

CPU 9 ISR count: 498

CPU 9 DPC highest execution time µs: 504.120

CPU 9 DPC total execution time s: 0.810674

CPU 9 DPC count: 16586

_________________________________________________________________________________________________________

CPU 10 Interrupt cycle time s: 16.067740

CPU 10 ISR highest execution time µs: 4.450

CPU 10 ISR total execution time s: 0.002527

CPU 10 ISR count: 2722

CPU 10 DPC highest execution time µs: 405.360

CPU 10 DPC total execution time s: 0.517363

CPU 10 DPC count: 24493

_________________________________________________________________________________________________________

CPU 11 Interrupt cycle time s: 14.852111

CPU 11 ISR highest execution time µs: 3.810

CPU 11 ISR total execution time s: 0.002084

CPU 11 ISR count: 1906

CPU 11 DPC highest execution time µs: 364.620

CPU 11 DPC total execution time s: 0.210863

CPU 11 DPC count: 8398

_________________________________________________________________________________________________________

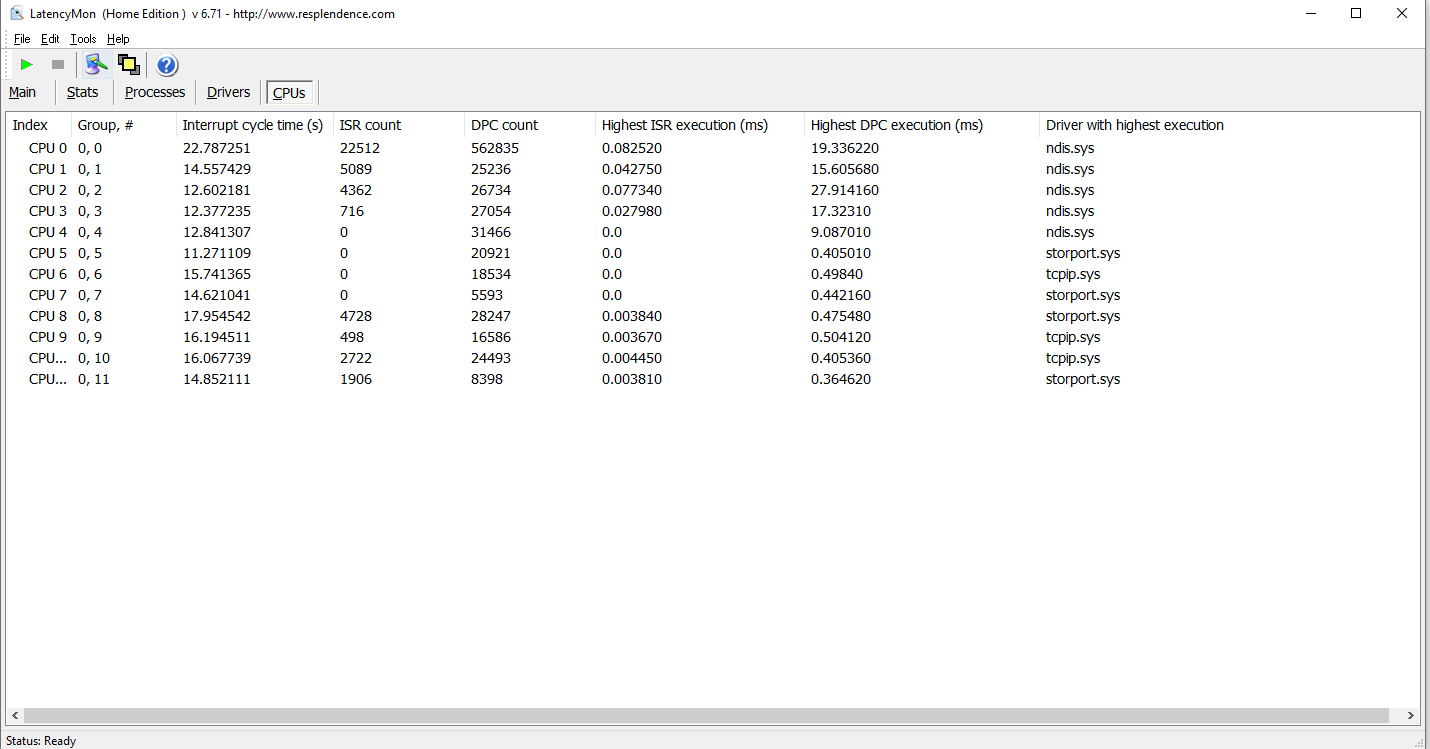

Here is also the CPU tab from LattencyMon:












Can you please help me out here?


Thanks

Damjan

:)



No sound while playing audio and video files.

Hi,

I appreciate if you could answer to a few questions to narrow down to the issue.

• Which is the application that you are using to play the files?
• Did you try the same on a different player?
• Did you perform any troubleshooting steps?

As an initial troubleshooting step, I suggest you to check if the volume is set low or in mute state in Volume Mixer.

• Right click on sound icon.
• Open Volume Mixer check for the application that you are playing the files with and increase the volume and check.

If the issue still persists, I would suggest you to run “Playing audio” troubleshooter to diagnose and fix the issue.

Follow these Steps to run Playing Audio Troubleshooter in Windows 10.

1. Type troubleshooting in the search bar.

2. Select Troubleshooting.

3. Select View all on the top left corner.

4. Click on Playing audio.

Also refer: http://windows.microsoft.com/en-us/windows-10/fix-sound-problems#v1h=tab01

Hope the information helps in resolving the issue related to the sound issue. Let us know if you need further assistance. We will be happy to help.

Thank you.



Distorted Sound

Hi Zaki,

Distorted sound can be be produces if there is an issue with the hardware or software. Please answer the following questions for us to narrow down this concern:

• Is it affecting all music, videos, and online videos?
• Which sound card is set to default? Realtek High Definition Audio or High Definition Audio Device? You will know it by typing
  "sound" on the search box and select Sound, under Playback, the default speaker should have a check.

Please run Playing Audio Troubleshooter by following these steps:

• Type "troubleshooting" on the search box.
• Select Troubleshooting on the result.
• Click View all.
• Choose Playing Audio and follow the steps.

Looking forward to your reply.



N8: high definition video slowed when played on PC

Yesterday I shot a 1,5 min film in high definition with my N8 and that's the odd: when played by the N8 player itself it's absolutely ok, when played by (after uploading to) my desktop's WMP, well has a correct audio but a slower than real video, so the
audio and the video soon become out of synch and the audio ends , of course, some seconds before the video.

Any idea?
