Windows 10: How can i boot into advanced recovery options

I've been having this "SYSTEM_THREAD_EXCEPTION_NOT_HANDLED" problem for 2 days now it says "tcpip.sys" is what failed i know i have to go into advanced recovery options to fix this but the problem is that i can't get into advanced recovery options i tried shutting the pc down multiple times and pressing f5 or f8 but it just doesn't work it starts as if it's going to boot into the advanced recovery options but then it just restart again and again please help

:)



How does Windows boot to advanced recovery option e.g. command prompt?

- that gives me a 454 'Unexpected error' This tells me that the BCD is partially corrupted.

The commands: shutdown.exe /r /o /f /t 00
or: %SystemRoot%\System32\Cmd.exe /c reagentc /boottore&shutdown /r /f /t 00
should boot into Recovery if everything is configured correctly.
FYI, If Windows is configured correctly:

1. If Reagentc is disabled, you still can get into Recovery but with limited options.
2. If Reagentc is enabled, you'll get all options.
3. If you boot Windows using Recovery USB stick, You'll get into Recovery with couple of options missing.

Here's my suggestion if you want to try:
OPTION 1: Will save the trouble of re-install Windows.

1. Download the image of my first 3 partitions (450MB Recovery, 100 MB EFI partition, and 16MB unformatted primary)
   EFI_Boot-00-00.7z - Google Drive
2. Run Macrium and restore the image from step 1, overwriting your existing 1st three partitions, leaving C alone.
3. Delete the 490MB Recovery partition.
4. From Macrium, run fix boot problems.
5. Reboot. Open Admin command prompt then run Reagentc /info to make sure that it is enabled. If not, enable it.
   if failed to enable, reboot and try again.

OPTION 2: Assuming you've already had Windows backup with Macrium.

1. Wipe out the first 5 parttiions. (450MB, 100MB, 16MB, C Drive, 480MB)
2. Fresh install Windows 10
3. Restore C drive from backup image, run fix boot problems
4. repeat step 5 from OPTION 1 above.



How does Windows boot to advanced recovery option e.g. command prompt?

I have questions for you:

1. if you open admin command, copy and paste: reagentc /boottore&shutdown /r /f /t 00
   Does it boot into recovery ?

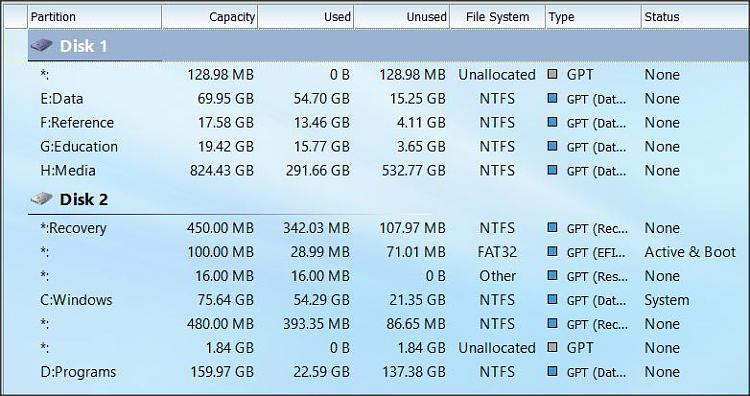

2. Is the disk layout still look like the screen you posted in the other thread with 2 recovery partitions (450MB and 480MB)?



   According to suggestions from the thread, you changed from partitiion 5 to partition 1 with reagentc, which in my opinion is not correct. When you upgrade, windows creates an extra 450MB after C: and put a new Winre.wim there and set it to partition 5 (counting from left to right)



No Advanced Restart Options

I solved it. I entered these commands. Reagentc reported it was already enabled but the Advanced Boot options now appear.

1. diskpart
2. select disk 0
3. select partition 1
4. assign letter=R
5. exit
6. reagentc.exe /setreimage /path R:\Recovery\WindowsRE /target C:\windows
