Windows 10: how can i enable SMBus host controller in my windows 11

how booting my kali linux debian 10 in VMware workstation and it keep showing me this message when it si booting up " SMBus host controller jnot enabled " how can i fix it

:)



SMBus controller

I checked my bios's settings and i found that SMBus controller is disabled. Is that good or bad? Should i enable it? What is SMBus and what does it do exactly?*Confused



SMBus Controller

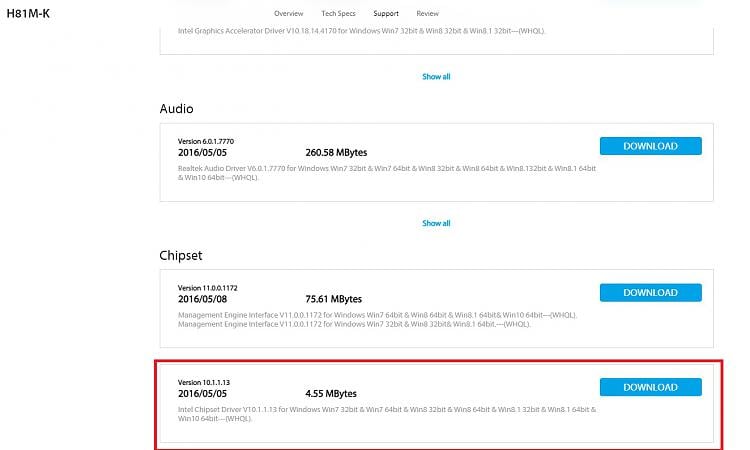

On the Asus support website, did you click on the "Show All" link under chipset drivers and actually install the second one on the list?



SMBus controller

Needs to be enabled, it's fairly important! its the System Management Bus and processes mainly low level information on the motherboard, a breif description is:

The System Management Bus (abbreviated to SMBus or SMB) is a simple two-wire bus used for communication with low-bandwidth devices on a motherboard, especially power related chips such as a laptop's rechargeable battery subsystem (see Smart Battery Data). Other devices might include temperature sensors and lid switches.

A device can provide manufacturer information, indicate its model/part number, save its state for a suspend event, report different types of errors, accept control parameters, and return status. The SMBus is generally not user configurable or accessible.

The bus was defined by Intel in 1995. It carries clock, data, and instructions and is based on Philips' I²C serial bus protocol. Its clock frequency range is 10 kHz to 100 kHz. Its voltage levels are different from those of I²C, but devices belonging to the two systems are often successfully mixed on the same bus. The SMBus has an extra optional signal called ALERT#, which can be used by slaves to send an interrupt request to the controller.

Linux, Windows 2000, and Windows XP support SMBus devices, but Windows 98 does not.

It also has linkage to the Mobo BIOS and other stuff, if you wanna be a real swot readthis link talking about its functions in relation to Mobo/BIOS processes.

http://www.sbs-forum.org/marcom/sbexpo_feb02/01 SBD Access under ACPI.PDF#search="smbus driver"
