Windows 10: How can I maintain shape integrity when merging or subtracting shapes in 3D Builder?

Discus and support How can I maintain shape integrity when merging or subtracting shapes in 3D Builder? in Windows 10 Software and Apps to solve the problem; When I create a tube in 3D Builder by subtracting one cylinder from another--or merge two tubes to create a "wye" type junction--the surface of the... Discussion in 'Windows 10 Software and Apps' started by dokcal, Jan 27, 2024.

  1. DOKCAL
    dokcal Win User

    How can I maintain shape integrity when merging or subtracting shapes in 3D Builder?


    When I create a tube in 3D Builder by subtracting one cylinder from another--or merge two tubes to create a "wye" type junction--the surface of the resulting shape is rough and lumpy, with many irregularly-shaped polygons instead of a smooth tube. The resulting 3D print is also lumpy rather than smooth.

    :)

    dokcal, Jan 27, 2024
    #1
  2. WILLIAMVANCURA
    WilliamVancura Win User

    3D Builder Problems

    3D Builder does not seem to have an "about" button. There is no version information or obvious path to updates.

    - What is the current version and release date?

    - And where does one get it?

    - What is the version that comes with windows 10?

    The program has a problem with its subtract function. About half the time it finishes with an error. The fix it option is about 25% effective. Some of the repairs took longer than I was willing to wait which was well over an hour. In those cases, I tried
    building the model in a different way with marginal success.

    The subtraction utility usually requires me to make a merged or grouped shape placed into a standard shape like a cube. The results are generally disappointing with several artifacts left over, and of course, an error.

    - Is there any plan to upgrade this product?

    I haven't looked on-line, but there needs a few more standard shapes to start with. For example a multi-sided objects (5, 7, 10, 20) would be nice along with shapes with rounded corners.

    Thanks,

    Bill

    WilliamVancura, Jan 27, 2024
    #2
  3. RICKFEARNALL
    rickfearnall Win User

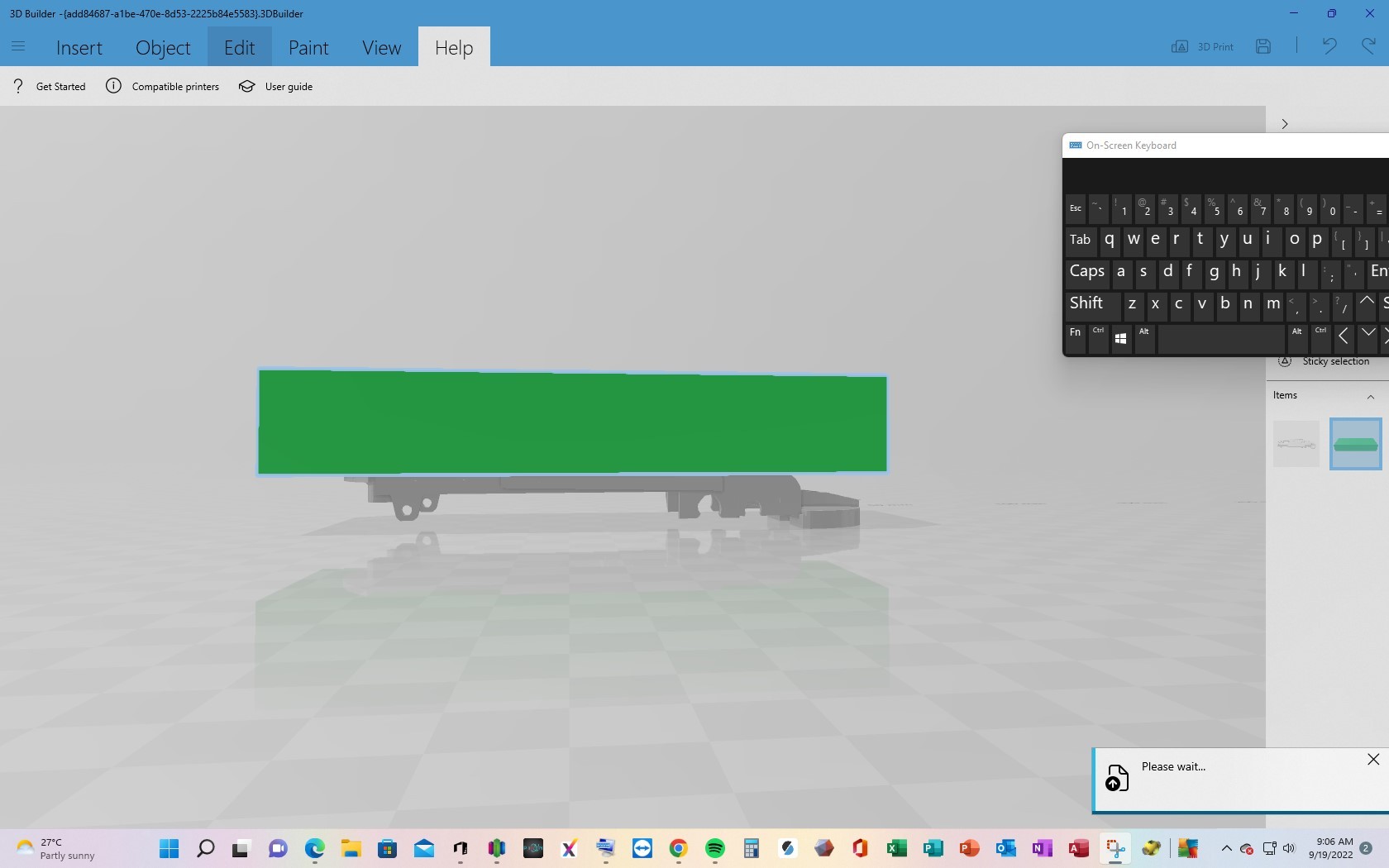

    3d builder is crashing when i try to subtract a part from the model to shape it

    hi, for some reason the 3d build is crashing when i try to subtract a part from the model to shape it , this is the first time that i have a problem doing this function , i would like your opinion please when you can thank you rick 3dwise
    How can I maintain shape integrity when merging or subtracting shapes in 3D Builder? b807e8dc-f6ee-4449-a949-c814b0f7835c?upload=true.jpg


    * Moved from Community Participation Center

    * Original title: 3d build

    rickfearnall, Jan 27, 2024
    #3
  4. GEETHR3
    GeeThr3 Win User

    How can I maintain shape integrity when merging or subtracting shapes in 3D Builder?

    Microsoft 3D builder wont let me subtract

    Microsoft 3D Builder wont let me subtract one object from another

    Things I have tried

    • Selecting ONLY the object I want to be subtracted
    • Selecting the object I want to be subtracted AND the object I want it to be subtracted from
    • Using deselect and trying again
    • restarting the program
    • restarting the computer
    • using all of the different objects
    The button stays greyed out no matter what

    GeeThr3, Jan 27, 2024
    #4
