Windows 10: How do i get my headphone mic to collect sound from my pc?

i had this when i had windows 10. i am now in windows 11 and i am no longer picking up sound from my pc. i want to play loud music again to annoy my friends

:)



Mic/Headphone ports not working correctly - Acer Aspire 7745

The speakers are 'plugged in' already as it is a laptop. With no external mic, headphones or external speakers plugged in, the Sound Control Panel lists three things under 'Playback' - HDMI, 'Speakers' and 'Realtek Digital Output' - the Speakers under 'Playback' is set as the default.

Under 'Recording' with no external mic plugged in these are listed - 'Microphone', 'Line In' and 'Stereo Mix' (Disabled) - the microphone (in this case, the internal one) is set to 'Default' under 'Recording' as well.

I don't have my headset here to test an external mic right now, but with normal external headphones plugged in, there is no change to the Sound Control Panel under 'Playback' - the same three listings (HDMI, 'Speakers' and 'Realtek Digital Output') with 'Speakers' set as the Default. If I make a noise, say, play a video, I can see the sound meters move to the sound, but no sound comes out of the headphones.



Mic/Headphone ports not working correctly - Acer Aspire 7745

Hi all,

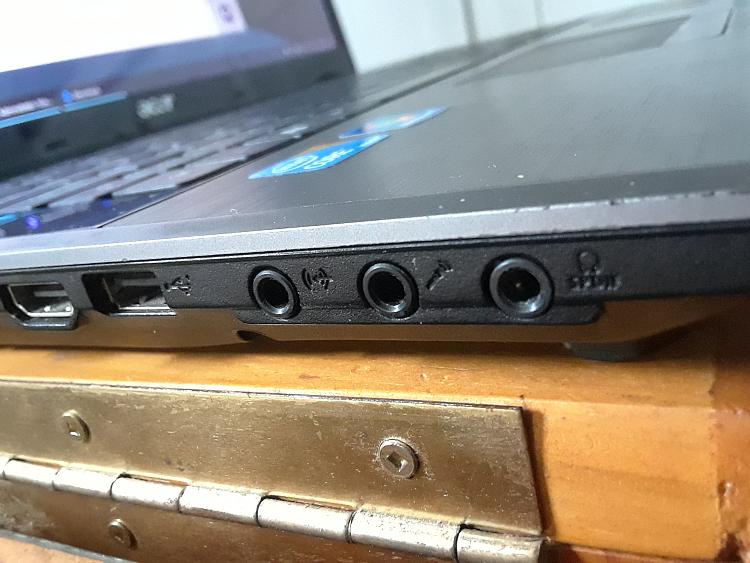

I have an Acer Aspire 7745 that I have been trying to get the external audio ports to work correctly on since I upgraded it to Windows 10 - it was originally a Win7 machine from the factory. It's got three external audio ports:




Win10 runs fine on it (Core i3 @ 2.27Ghz, 4GB RAM) and sound through the speakers works fine, as does the internal mic, but PLUGGING IN a mic or headphones is the issue - external plugged in mics are not picked up at all, and plugging in headphones disables the internal speakers, but no sound comes through the headphones.

I found this thread (Determine the HDA Realtek driver needed for your Audio) and was trying to follow the instructions to find the correct driver to use by looking at the 'Driver Details' lists, but I am a bit confused. When I upgraded to Win10, Windows 10 installed generic drivers for the sound card and I had the same issue - sound through speakers and internal mic was fine, but the jacks didn't work.

So, I thought I would go download some specific drivers...the latest drivers listed for audio on Acer's site for this machine are the Win7 64-bit drivers, so I installed those and, as mentioned, sound still worked fine other than the external jacks (I know the external jacks are not broken/damaged, by the way, because they used to work fine under Windows 7). When following along the list of 'special files' the aforementioned thread asks me to look for, I find both 'FMAP064.dll' from the 'FF01' 'Special Files' list...but I also see 'MaxxAudioAPO20.dll' and 'MaxxAudioEQ.dll' from the FF06 'Special Files' list...?

....so which one of those drivers do I get (FF01 or FF06)?

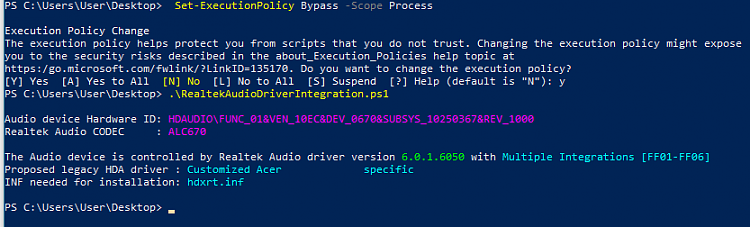

Where it gets even more confusing is that when I try running the Powershell script suggested in that same thread to suggest a driver, it tells me this:



...so should I follow the Powershell script's suggestion and look for ANY new driver that has the 'hdxrt.inf' file in it? (Like the one listed here: Determine the HDA Realtek driver needed for your Audio )?

Sorry for the novel, but it's a tad bit confusing as to what driver I should be looking for...

Could anybody link me to a driver that might work?

Thanks so much in advance!



Computer Won't Use Headphone Mic

Are you using a wired or wireless connection?

If you are using Bluetooth you will find there is a gotcha when using a headset with a microphone. With Bluetooth 4.x there is not enough bandwidth for both the headset's stereo speakers and the microphone at the same time. If the headset's speakers are used in mono mode then the microphone will work. Here is the information from my computer:

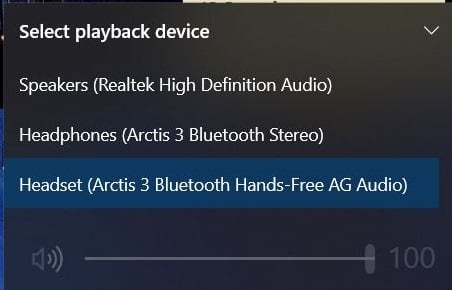

I I left-click on speaker icon on taskbar tray I see my options for the speakers:

• Speakers (Realtek High Definition Audio) = Laptops built-in speakers
• Headphones (Arctis 3 Bluetooth Stereo) = Headphones stereo mode
• Headphones (Arctis 3 Bluetooth Hands-Free AG Audio) = Headphones mono mode

I found out that if I select "Headphones (Arctis 3 Bluetooth Hands-Free AG Audio)" the headset microphone will work.




However, I found that next time the computer might choose "Headphones (Arctis 3 Bluetooth Stereo)". Then the headset speakers will work but the the headset microphone will not work.

To ensure that the right selection is always done automatically I have to go further and set the default to "Headphones (Arctis 3 Bluetooth Hands-Free AG Audio)".
Note I can always override this at any time. To do this...

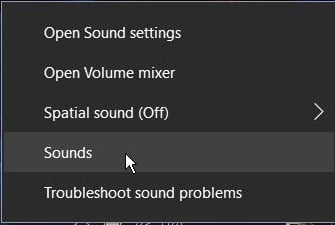

I right-click on speaker icon on taskbar tray and left-click on Sounds

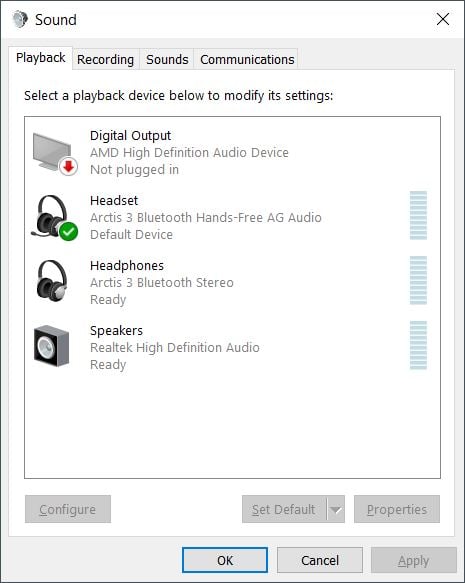

The first tab Playback is for the speakers

• Headset = Headphones mono mode
• Headphones = Headphones stereo mode
• Speakers = Laptops built-in speakers

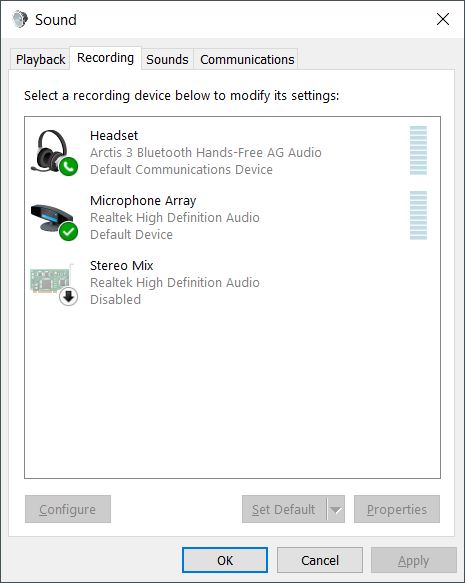

The second tab Recording is for the microphone

• Headset = Headset's microphone
• Microphone Array = Laptop's built-in microphone
• Stereo Mix = N/A

To ensure that both the headset speakers and microphone work at the same time I set the default playback to Headset. This will put the headset in mono mode and allow the microphone to work. Note that if I disconnect the headset the computer will automatically revert back to using the built-in speakers and microphone.
