Windows 10: How to boot a physical partition in Hyper-V

I have physical linux partition on my drive how do i boot it in hyper-v

:)



Physical Machine not connected to Hyper-V systems

Hello Guys

I have setup a lab on one standalone machine for Microsoft sccm. My base machine is having Windows 10 OS and not connected to outside Network. In Windows 10 Hyper-V i have build my Test DC with DHCP, SCCM Core server and two test machines.

My Hyper-v machines are communicating well with each other but not all Hyper-V machines not connecting to Physical Machine and Physical machine not connected to Hyper-V machines.

I choose Default switch with Connection Type Internal Network. Just need solution for Physical Machine should communicate with Hyper-V machines



Can't remove Hyper-V Virtual Hard Drive partition

Hi Robert,

Thank you for writing to Microsoft Community Forums.

I understand that you are facing an issue when you are trying to remove the Hyper-V Virtual Hard Drive partition. This partition is just a virtual partition that is created by using the space within your physical hard disk, so that
it can be used within Hyper-V. Since you are no longer using Hyper-V and you wish to remove the Virtual Hard Drive partition, I would suggest you to follow the steps below and check if it is helpful to you.

Steps to remove the Virtual Hard Drive partition using Disk Management:

1. Press the Windows key and
   R key, this will open the Run dialogue box for you.

2. Type diskmgmt.msc and press
   Enter, this will open the Disk Management Window for you.

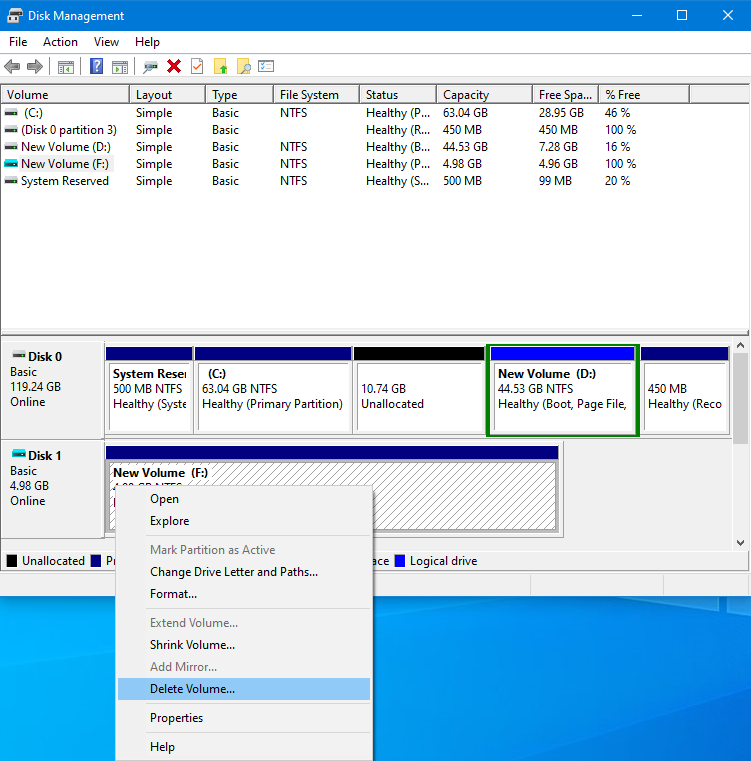

3. Your Virtual Hard Drive will be indicated by a ‘blue’ drive beside the
   Disk n (n is the disk number to which the VHD is associated), select the allocated
   Volume, right-click and select Delete Volume. You can check the picture below for your reference.




4. You will receive a prompt, click on
   Yes. This will delete the volume allocated to the Virtual Hard Drive and the space allocated will now be turned into an
   Unallocated space.

5. To detach the Virtual Hard Drive completely,
   right-click on the Disk and select Detach VHD.

6. You will receive a prompt, you may click on the check box to
   Delete the virtual hard disk after removing the disk. Click on
   OK.


This will remove the Hyper-V Virtual Hard Drive partition from your system.

If the issue still persists, I would suggest you to post your query in IT Pro

TechNet forums, where we have support professionals who are well equipped with the knowledge on the issues with Hyper-V and Virtual Hard Drive to assist you with your query.

Regards,

Aaron Summith

Microsoft Community - Moderator



Physical Machine not connected to Hyper-V systems

Thanks for your reply.

I am have connected my Physical machine in outside network. I cannot use my Physical machine NIC card to communicate with Hyper-V machines. Hence i am trying to connected Physical machine with Hyper-v through Virtual LAN.

On physical machine vEthernet (Defalut switch) showing Unidentified Network
