Windows 10: How to display CPU, GPU and RAM usage natively on Windows 11

If you like to keep a close eye on the CPU, GPU and RAM usage of devices running Windows 11, you may find the following native option useful. Keeping an eye on the performance of the device can be useful, for instance when you are troubleshooting issues that you are experiencing.



Windows includes a native option to display certain usage metrics, but most users have not heard of the option probable. Windows 10 and 11 systems come with the Xbox Game Bar application installed.

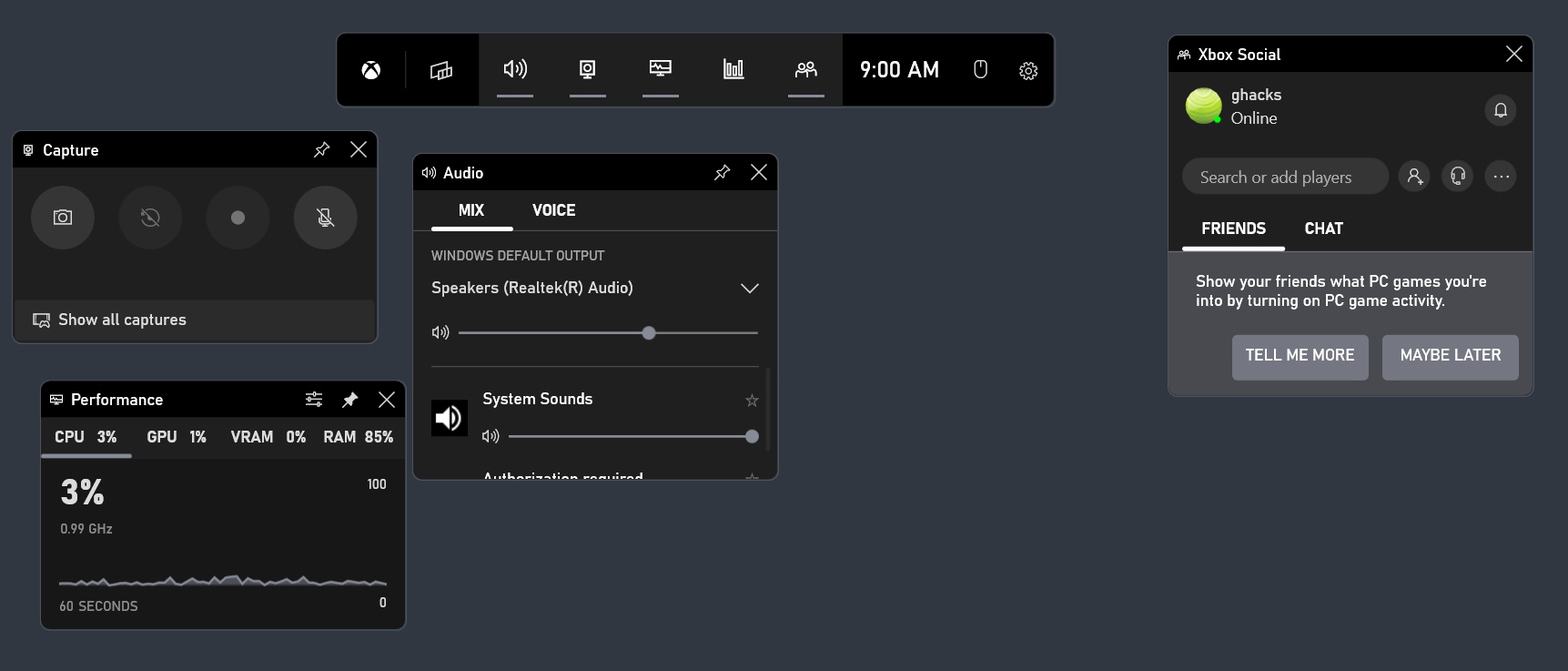

Use the keyboard shortcut Windows-G to display its overlay. Select performance and you see the device's CPU, GPU and RAM usage in realtime on the screen. While that is handy already, it is only visible on the screen temporarily. The overlay is closed automatically when you click elsewhere or switch to other applications or programs.

There is however an option to pin certain widgets so that they become visible all the time. All it takes for that is to activate the pin icon of the panel, in this case of the performance panel that displays CPU, GPU and RAM readings.



The panel remains visible on the screen in that case, so that you see the performance stats in realtime all the time.

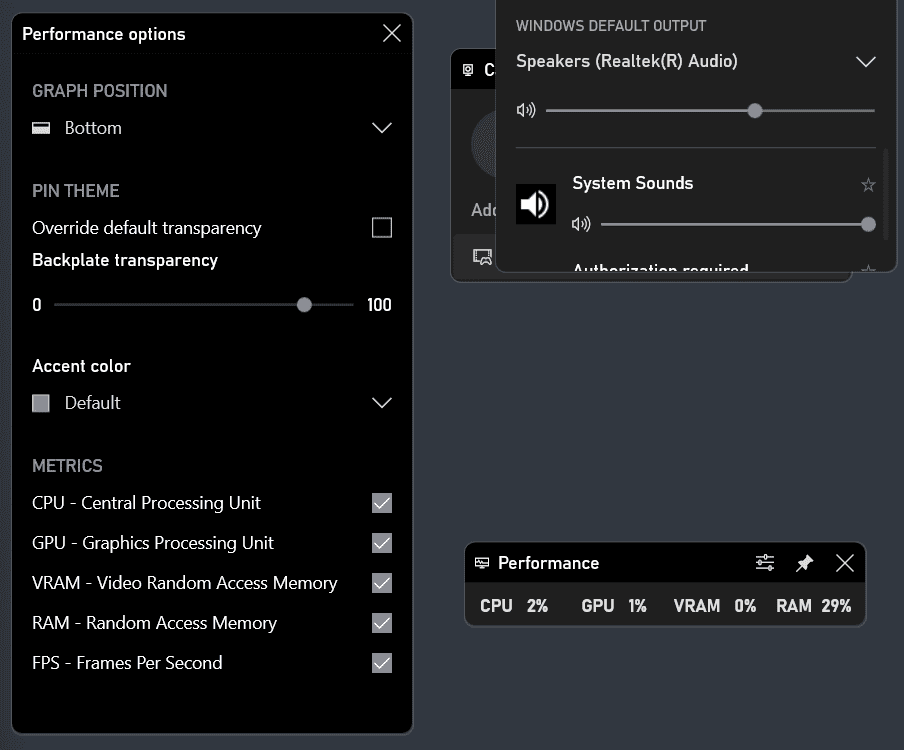

Some options are available to change the display. Open the Xbox Game Bar app using the shortcut again and select the preferences icon in the title of the widget that you want to display all the time.



You may use the preferences to change the position of the graph, to hide certain metrics that you don't require, and to change the accent color and transparency.

Note that you can hide the graph in the widget by hovering over it and clicking on the up and down arrow icon that is displayed. The option is available while the rest of the Xbox Game Bar app is not visible. Note that you can't move the widget around when the app is minimized.

The widget is displayed for the duration of the session only. You need to use the keyboard shortcut Windows-G and select Performance in each new session to restore the display of the widget on the screen.

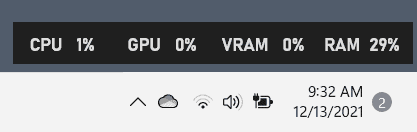

Our colleagues over at Deskmodder note that you can place the widget on the Windows taskbar using the method.

Closing Words

The performance widget of the Xbox Game Bar application is handy in certain cases. Maybe you want to check on the system's RAM or CPU usage, or check the "hunger" of specific games or applications.

Now You: do you keep an eye on CPU, GPU or RAM usage on your devices?

Thank you for being a Ghacks reader. The post How to display CPU, GPU and RAM usage natively on Windows 11 appeared first on gHacks Technology News.

read more...



100% CPU and GPU usage

Everything was fine until yesterday. Today it started with 100% CPU and GPU usage in Apex Legends. Upon further checks, its happening in all the games - Rainbow 6, GTA V. I do have a very strong feeling that it has something to do with windows, as we all
have seen 100% CPU usage bug in the past.

Specifications:

i5-8600k

MSI 1060 6GB

16GB RAM



Windows 10 CPU usage 100% when Nvidia GPU enabled

I've had the same problem, and have exactly the same GPU model. I was able to set the drivers back to factory default, but any update I've tried (including the most recent) causes the massive cpu usage. I've contacted tech support for both Nvidia and Asus,
and followed all the steps they suggested, with no luck.



GPU at 0% all the time Windows 10

My GPU always stays at 0% usage

I have Windows 10 64-bit, and these are my specs:

• Intel(R) Core(TM) i5 CPU
• 4096 RAM
• NVIDIA GeForce 8400 GS
  • Driver version: 342.01

My GPU usage is always at 0% usage, when I play games such as Valorant and also when I don't. For instance, when I'm playing my RAM is at 70%, the CPU at 50-60%, and the GPU at 0%. This problem is driving me crazy and I would really appreciate some help.
Thanks
