Windows 10: How to improve Windows 10 cumulative update installation times

Brink · Feb 18, 2021

With the new ability to deploy Windows SSUs and LCUs together with one cumulative update, I wanted to offer some background on how cumulative updates grow and the best practices you can employ to improve the update experience.

Why and how do cumulative updates grow?

The longer an operating system (OS) is in service, the larger the update and associated metadata grow, impacting installation time, disk space usage, and memory usage. Windows quality updates use Component-Based Servicing (CBS) to install updates. A cumulative update contains all components that have been serviced since release to manufacturing (RTM) for a given version of Windows. As new components are serviced, the size of the latest cumulative update (LCU) grows. However, servicing the same component again does not significantly increase the size of the LCU.

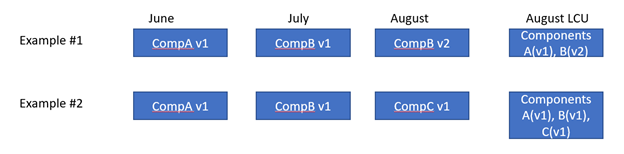

In the image below, you can see two examples, each with three changes. The resulting LCU in example #2 will be larger than the LCU in example #1 because it contains components A, B, and C.

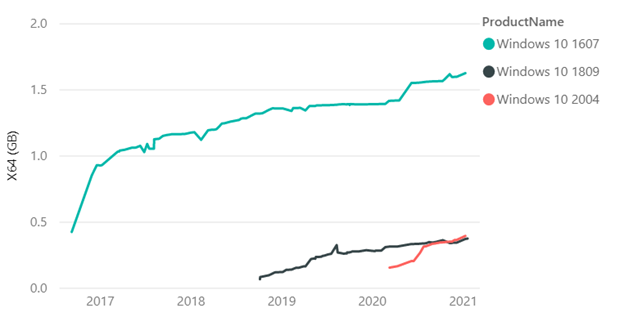

During an OS release, the size of the update grows quickly and then slowly levels out as fewer and fewer un-serviced components get added to the LCU.

With regard to the graph above, you'll see that there are points where the size goes down briefly due to a specific edition of Windows going out of service. For example, the Windows 10 Enterprise Long Term Servicing Channel (LTSC) has a longer servicing lifecycle than Windows 10 Home edition. When the Home edition reaches end of service, we stop servicing any components in the Home edition, which reduces the size. Shared components still get serviced.

Starting with Windows 10, version 1809, Microsoft implemented new technology to reduce the size of the LCU and growth rate, and improve installation efficiency. Maliha Qureshiâs blog post What's next for Windows 10 and Windows Server quality updates coupled with the Windows updates using forward and reverse differentials document, aim to help you understand more about this change to support forward and reverse deltas and the benefits of reducing the size of the LCU.

Starting in Windows 10, version 1903, more improvements came along in the update package. For example, if individual binary files in a component are unchanged, they are replaced with their hash value in the update package. In the example above, if Component A had five binary files and four changed, we would only send the payload for the four that changed. Overall, this results in the LCU growing about 10-20% more slowly and is useful when the image or video files are part of the component and rarely change.

What happens when an update is installed?

The Windows quality update installation process has three major phases:

Online: The update is uncompressed, impacted components are identified, and the changes are staged.

Shut down: The update plan is created and validated, and the system is shut down.

Reboot: The system is rebooted, components are installed, and the changes are committed.

The shut down and reboot phases affect users the most since their systems canât be accessed while the process takes place.

Best practices to improve installation time

Now let's get to best practices that can improve your update experience:

If possible, upgrade to Windows 10, version 1809 or newer. Version 1809 offers technology improvements that reduce the size of the updates and more efficient to install. For example, the LCU of Windows 10, version 1607 was 1.2GB in size on year after RTM while the LCU in version 1809 was 310MB (0.3GB) one year after RTM.

Hardware optimizations:

Run Windows and the update process on fast SSD drives (ensure the Windows partition is on the SSD) instead of HDD by placing the Windows drive in the SSD. During internal testing, weâve seen up to a 6x install time reduction from SSD vs HDD.

For systems with SSD (faster than 3k IOPS), CPU clock speed is the bottleneck and CPU upgrades can make a difference.

Antivirus (or any file system filter driver): Ensure you are only running a single antivirus or file system filter driver. Running both a 3rd party antivirus and Microsoft Defender can slow down the update process. Server 2016 enables Defender by default, so if you install another antivirus program, remember to disable Defender. The fltmc.exe command is a useful defrag tool to see the running set of filter drivers. You can also check out virus scanning recommendations for Enterprise computers that are running currently supported version... to learn which files to exclude in virus scanning tools.

Validate that your environment is ready to apply updates by checking out the Cluster-Aware Updating requirements and best practices.

Best practices to improve performance of Windows Update offline scan

Using Windows Update Agent (WUA) to scan for updates offline is a great way to confirm whether your devices are secure without connecting to Windows Update or to a Windows Server Update Services (WSUS) server. WUA parses all cumulative update metadata during a scan so larger cumulative updates require additional system memory. Cumulative metadata can become quite large and must be parsed in memory for WUA offline scans so machines with less memory may fail the WUA offline scan. If you encounter out of memory issues while running WUA scans we recommend the following mitigations:

Identify whether online or WSUS update scans are options in your environment.

If you are using a third-party offline scan tool that internally calls WUA, consider reconfiguring it to either scan WSUS or WU.

Run Windows Update offline scan during a maintenance Window where no other applications are using memory.

Increase system memory to 8GB or higher, this will ensure that the metadata can be parsed without memory issues.

Microsoft continues to investigate and improve the Windows 10 update experience as it is a critical component to stay productive and secure. Use the Feedback Hub or contact your support representative if you face any challenges when updating.
Click to expand...

Source: https://techcommunity.microsoft.com/...s/ba-p/2147161

:)

broken pixel · Feb 18, 2021

Cumulative Update for Windows 10 for x64-based Systems (KB3156387) will not install

Anyone else having problems getting the Cumulative Update for Windows 10 for x64-based Systems (KB3156387) installed? This update has been failing for me & doing a failed to update after downloading & reboot, then rebooting & removing the update.

V 10.0 build 10240

rtwjunkie · Feb 18, 2021

Cumulative Update for Windows 10 for x64-based Systems (KB3156387) will not install

Anyone else having problems getting the Cumulative Update for Windows 10 for x64-based Systems (KB3156387) installed? This update has been failing for me & doing a failed to update after downloading & reboot, then rebooting & removing the update.

V 10.0 build 10240
Click to expand...

Maybe try with the Windows update mini-tool, found here http://www.techpowerup.com/forums/t...dows-10-automatic-updates-and-spyware.218745/ , thanks to Mussels. it installed perfectly for me last night.

Drone · Feb 18, 2021

windows 10 worth the upgrade?

Cumulative update for W10: September 8, 2015

This is the biggest update W10 ever had. Lol look at the file list.
This is pretty good for those who installed Windows 10 today. Just one update that has everything, no need to install previous updates.
