Windows 10: How to use microphone plug as a mic and a headphone?

Hello, recently I accidentally broke my headphone jack on the top of my PC because I walked away from the computer. Due to this, the headphone jack cannot be used now. I've figured out that I can plug my headphones into the microphone jack and it will output sound, but I am not sure how to make it so that I can input sound through the same channel. Advice/guidance would be greatly appreciated.

:)



Headphone microphone not working.

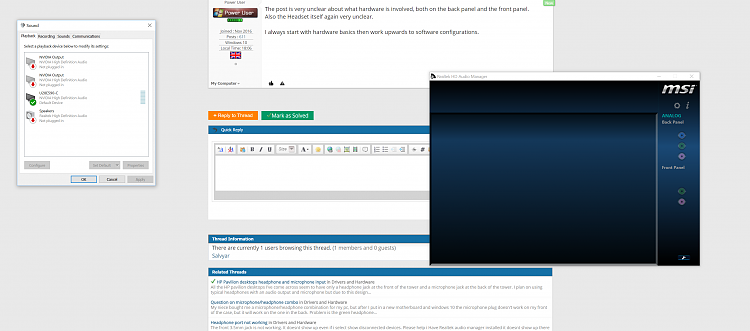

no plugged in cable

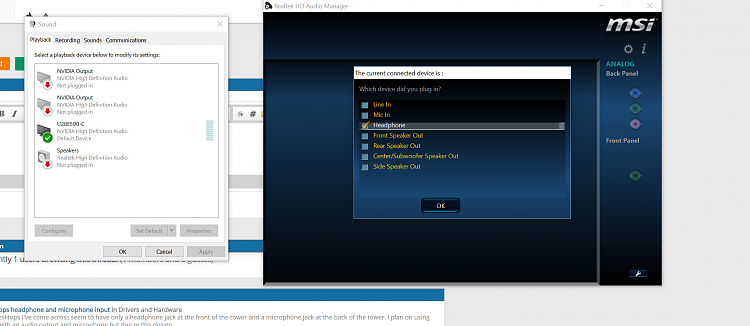

Plugged in cable (in front of pc)

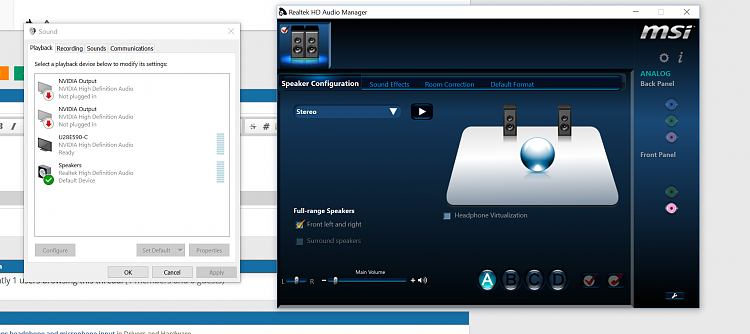

Selected headphone

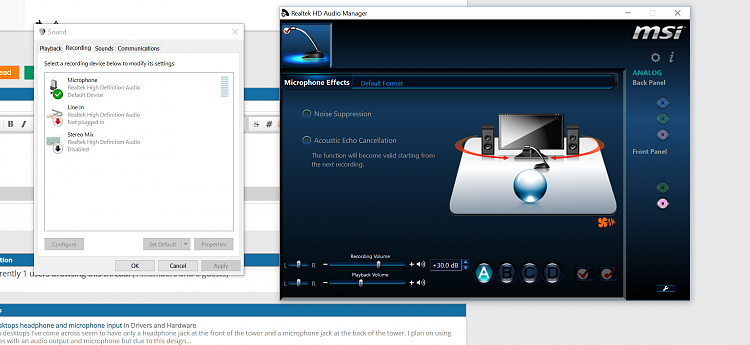

Selected Mic in

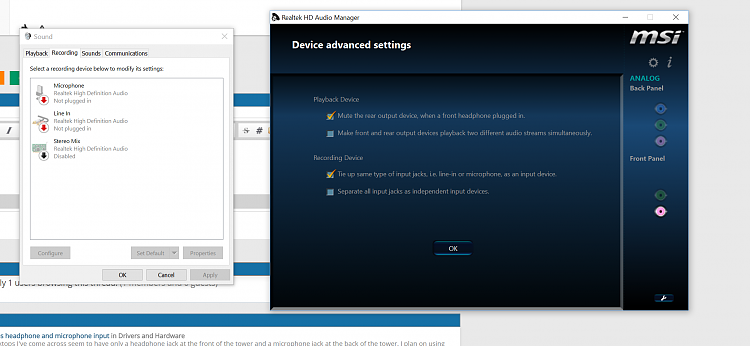

Clicked on cog (its same with Mic in and Headphone)

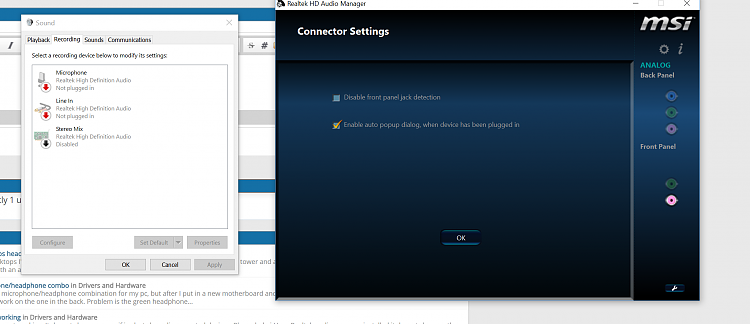

Wrench (also same with headphone and Mic in)


This is all i know btw when i click headphone it says mic is unplugged and when i do Mic in it says speakers are unplugged and mic is on.



Mic/Headphone ports not working correctly - Acer Aspire 7745

The speakers are 'plugged in' already as it is a laptop. With no external mic, headphones or external speakers plugged in, the Sound Control Panel lists three things under 'Playback' - HDMI, 'Speakers' and 'Realtek Digital Output' - the Speakers under 'Playback' is set as the default.

Under 'Recording' with no external mic plugged in these are listed - 'Microphone', 'Line In' and 'Stereo Mix' (Disabled) - the microphone (in this case, the internal one) is set to 'Default' under 'Recording' as well.

I don't have my headset here to test an external mic right now, but with normal external headphones plugged in, there is no change to the Sound Control Panel under 'Playback' - the same three listings (HDMI, 'Speakers' and 'Realtek Digital Output') with 'Speakers' set as the Default. If I make a noise, say, play a video, I can see the sound meters move to the sound, but no sound comes out of the headphones.



Computer Won't Use Headphone Mic

Are you using a wired or wireless connection?

If you are using Bluetooth you will find there is a gotcha when using a headset with a microphone. With Bluetooth 4.x there is not enough bandwidth for both the headset's stereo speakers and the microphone at the same time. If the headset's speakers are used in mono mode then the microphone will work. Here is the information from my computer:

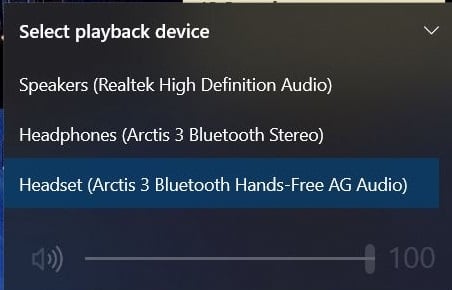

I I left-click on speaker icon on taskbar tray I see my options for the speakers:

• Speakers (Realtek High Definition Audio) = Laptops built-in speakers
• Headphones (Arctis 3 Bluetooth Stereo) = Headphones stereo mode
• Headphones (Arctis 3 Bluetooth Hands-Free AG Audio) = Headphones mono mode

I found out that if I select "Headphones (Arctis 3 Bluetooth Hands-Free AG Audio)" the headset microphone will work.




However, I found that next time the computer might choose "Headphones (Arctis 3 Bluetooth Stereo)". Then the headset speakers will work but the the headset microphone will not work.

To ensure that the right selection is always done automatically I have to go further and set the default to "Headphones (Arctis 3 Bluetooth Hands-Free AG Audio)".
Note I can always override this at any time. To do this...

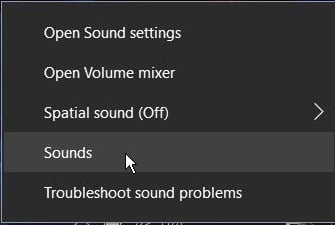

I right-click on speaker icon on taskbar tray and left-click on Sounds

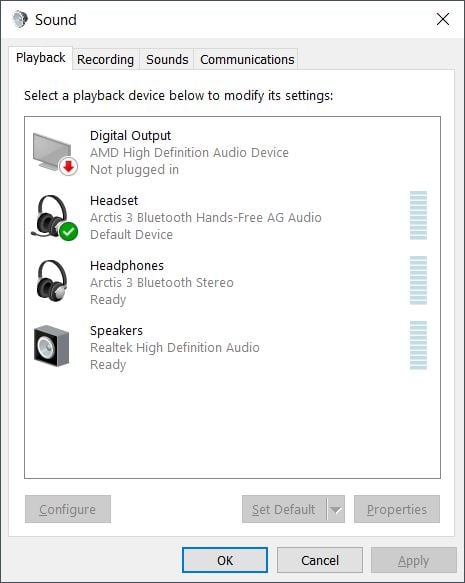

The first tab Playback is for the speakers

• Headset = Headphones mono mode
• Headphones = Headphones stereo mode
• Speakers = Laptops built-in speakers

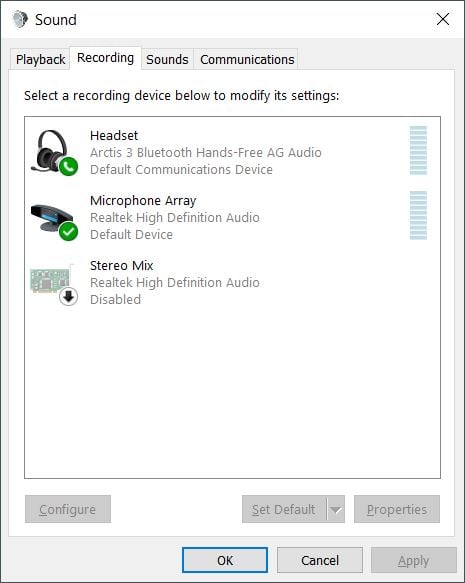

The second tab Recording is for the microphone

• Headset = Headset's microphone
• Microphone Array = Laptop's built-in microphone
• Stereo Mix = N/A

To ensure that both the headset speakers and microphone work at the same time I set the default playback to Headset. This will put the headset in mono mode and allow the microphone to work. Note that if I disconnect the headset the computer will automatically revert back to using the built-in speakers and microphone.
