Windows 10: How to Wake-on-Lan (WOL) over WiFi? (Preferably using iPhone)

submitted by /u/jamesx413
[link] [comments]

:)



Wake on LAN support on this laptop ?

I have a lenovo laptop ( ideapad 520-15ikb) , model name 80YL, and i wanna know if it supports wake on lan or not , because i need this for something . Do you guys know if it supports that? And do i really need a wired internet connection for WOL ? Or
i can use wifi for wake on lan?



WOL Wake on Lan not working after upgrade from windows 8.1

Hi Chris and Jessen P,

The setting for the soft off S5 state if your bios supports it:

Look at this artikel:

System Power States - Win32 apps

It claims:


"Wake-on-LAN behavior

The wake-on-LAN (WOL) feature wakes the computer from a low power state when a network adapter detects a WOL event (typically, a specially constructed Ethernet packet).

The default shutdown behavior puts the system into hybrid shutdown (S4) and all devices are put into D3. Remote wake from hybrid shutdown (S4) or classic shutdown (S5) is completely unsupported. NICs are explicitly not armed for
wake in both the classic shutdown (S5) and hybrid shutdown (S4) cases because users expect zero power consumption and battery drain in the shutdown state. This behavior removes the possibility of spurious wakes when explicit shutdown was requested.
As a result, Wake-On-LAN is only ever supported from sleep (S3) or hibernate (S4).

Hybrid shutdown (S4) stops user sessions but the contents of kernel sessions are written to hard disk. This enables faster boot. "

But that is not true:

1. Update your driver from the vendor site

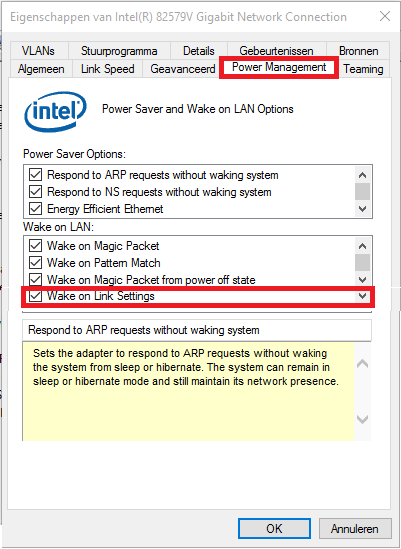

2. If you have the option to enable wake on link you can shut your pc down and wake it by WOL.

3. Standy and hibernation should work if you apply the settings of Jessen P.



Hope this helps you or someone else.

Kind regards,



isee2it.nl



Wake on lan- WOL not showing in network advanced option

I have b-360 prime mother board and WOL absolutely not showing in network setting and also power management is not showing I tried everything I went to BIOS and enabled PCI-E/PCI

and disabled fast startup and my operating system is windows 10 OS build 19041.508 I don't know why I can't find wake on LAN or power management
