Windows 10: I cannot use any new Storage Spaces I create from my Storage Pool

Several years ago I purchased 2 refurbished Hitachi drives, installed them in my PC and used Windows Storage Space feature to configure them as a Storage Pool with 1 Simple Space and 1 Mirrored Space like so:


This set-up remained the same, even though I removed the drives from inside my PC and put them in a dual HDD enclosure, and also when I upgraded from Windows 8.1 to Windows 10. I am able to write to and read from these existing Storage Spaces, without problems.

Now, however, I want to make a third storage space from same pool, to experiment with BitLocker - mainly to see how badly it hurts performance:



After it finishes creating the new Storage Space, it gives me an error:



The new Storage Space appears in Storage Space UI (from Control Panel):

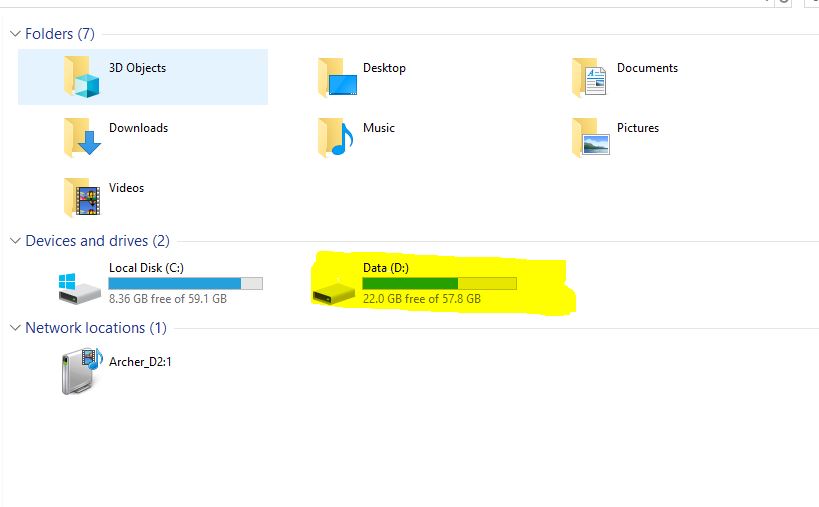

But not in File Explorer:



Which makes it completely useless, as far as I can tell.

Attempting to delete the new Storage Space repeats the same error given when the space was created, attempting to change the Storage Space gives a different error:



I am able to delete these useless spaces via Powershell method found in one of Brink's tutorials, but I would rather be able to make a functional new Storage Space. Anyone know how to fix this?

- - - Updated - - -

I just checked, and I think Disk Management shows the new Storage Space as Disk 8.



:)



create a new pool and storage space in the manage storage spaces

Dear all,

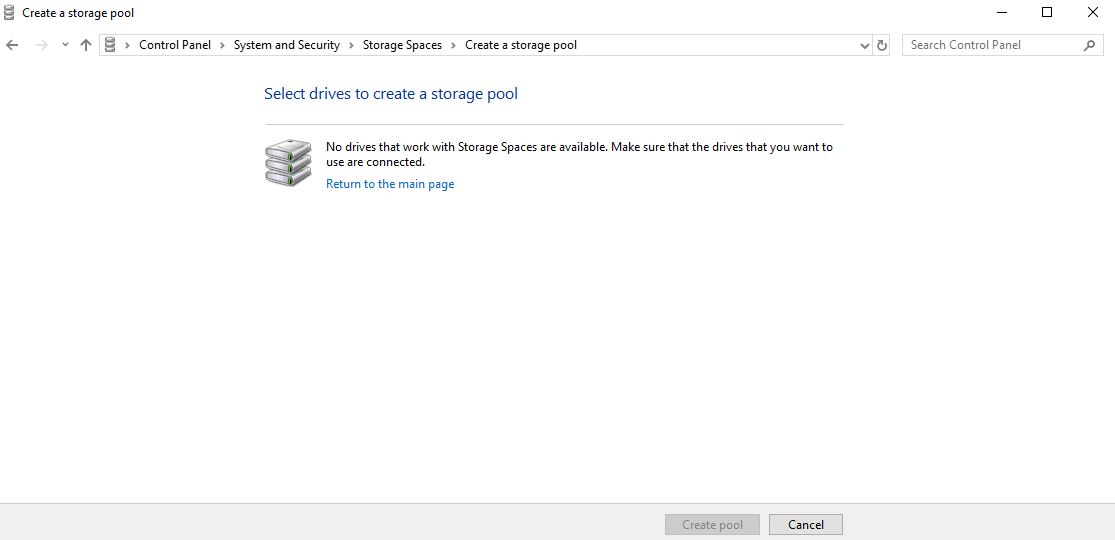

I have connected two USB storage drives, each one of them is 16 GB. I tried to create a new virtual pool but it did not work out.

I thought the size is not enough and it may need extra storage spaces. I connected 64 GB then opened the storage space but I am still unable to create storage space.



When adding a journal for storage spaces, is the journal added to the storage pool or a the storage space?

I'm planning to create 2 storage spaces, 1 for backup and 1 for my main data. I was going to add 1 journal to each storage space, but it looks like the journal applies to the storage pool, not the storage space. Is that the case? if it is, is the better
approach to add 2 SSD drives to the storage pool as journals? If I add 2 drives as journals, how do I change the friendly name of the drives? Both of my drives that I want to use as journals have the same exact name.

Thanks,

Mike



Storage pool

Hello,

Storage Spaces is a technology in Windows and Windows Server that can help protect your data from drive failures. It is conceptually similar to RAID, implemented in software. You can use Storage Spaces to group three or more drives together into a storage pool
and then use capacity from that pool to create Storage Spaces. These typically store extra copies of your data so if one of your drives fails, you still have an intact copy of your data. If you run low on capacity, just add more drives to the storage pool.

In setting up a storage space, it's recommended that you use a hard drive that doesn't contain important files as the drive will be formatted to mirror the host drive.

For more information regarding Storage Spaces, read this
FAQ page.

Hope the information I provided helps.
