Windows 10: I want to enable resize bar

Ilyasse Aziz · Oct 12, 2024

So basicly, i want to enable sam but in order to do that i need to disable csm. but when i disable csm i bootloop 3 times and then i discover that it turned back on. My ssd whr windows is installed is gpt, and my bios mode is uefi. i dont know why i cant enable it.Thanks for any further help.

:)

Brink · Oct 12, 2024

GeForce RTX 30 Series Performance Accelerates with Resizable BAR

Resizable BAR utilizes an advanced feature of PCI Express to increase performance in certain games. As of March 30th, 2021, Resizable BAR is supported for GeForce RTX 30 Series graphics cards and laptops.

For desktops to take advantage of Resizable BAR, users need a GeForce RTX 30 Series graphics card with a supported VBIOS, a compatible CPU, compatible motherboard, motherboard SBIOS update, and our newest GeForce Game Ready driver.

For GeForce RTX 30 Series laptops, please check with the manufacturer to see if Resizable BAR is supported on a specific model.

For instructions on how to enable Resizable BAR, continue reading.

What Is Resizable BAR?

Resizable BAR is an optional PCI Express interface technology. As you move through a world in a game, GPU memory (VRAM) constantly transfers textures, shaders and geometry via many small CPU to GPU transfers.

With the ever-growing size of modern game assets, this results in a lot of transfers. Using Resizable BAR, assets can instead be requested as-needed and sent in full, so the CPU can efficiently access the entire frame buffer. And if multiple requests are made, transfers can occur concurrently, rather than queuing.

Installation Steps

To successfully activate Resizable BAR on a desktop PC, please follow these steps in order, referring to the expanded installation instructions below:

Confirm you have a compatible CPU & CPU chipset (see list below)

Confirm you have a compatible motherboard (see list below)

Update your motherboard SBIOS, if required, by installing an update from the manufacturer. Then enable Resizable BAR support in your motherboard’s BIOS interface

Update to the latest GeForce Game Ready Driver (version 465.89 WHQL at the time of writing, released March 30th, 2021), or a later version

If you have a GeForce RTX 3060, you’re good to go. If you have a GeForce RTX 3060 Ti, 3070, 3080, or 3090, then you may require an updated VBIOS

If you have a Founders Edition graphics card from NVIDIA, get your VBIOS update tool directly from our website. If you have a custom partner card, get the update tool from their site (see list below)

Verify Resizable BAR is enabled in the NVIDIA Control Panel (see instructions below)

What CPUs and CPU Platforms Support Resizable BAR?

Resizable BAR requires CPU and motherboard compatibility, and a Resizable BAR SBIOS update. As of March 30th, 2021, the following CPU chipsets and CPUs officially support Resizable BAR on GeForce RTX 30 Series desktop GPUs:

Desktop CPU and Chipset Support

[table][tr][td]AMD Chipsets[/td] [/tr] [tr][td]AMD 400 Series (on motherboards with AMD Zen 3 Ryzen 5xxx CPU support)[/td] [/tr] [tr][td]AMD 500 Series[/td] [/tr] [/table]

[table][tr][td]AMD CPUs[/td] [/tr] [tr][td]AMD Zen 3 CPUs[/td] [td]Ryzen 3 5xxx[/td] [td]Ryzen 5 5xxx[/td] [td]Ryzen 7 5xxx[/td] [td]Ryzen 9 5xxx[/td] [/tr] [/table]

[table][tr][td]Intel Chipsets[/td] [/tr] [tr][td]Intel 10th Gen[/td] [td]Z490[/td] [td]H470[/td] [td]B460[/td] [td]H410[/td] [/tr] [tr][td]Intel 11th Gen S[/td] [td]All 11th Gen chipsets available as of March 30th, 2021[/td] [/tr] [/table]

[table][tr][td]Intel CPUs[/td] [/tr] [tr][td]Intel 10th Gen[/td] [td]Intel 11th Gen S-Series[/td] [/tr] [tr][td]i9-10xxx CPUs[/td] [td]i9-11xxx CPUs[/td] [/tr] [tr][td]i7-10xxx CPUs[/td] [td]i7-11xxx CPUs[/td] [/tr] [tr][td]i5-10xxx CPUs[/td] [td]i5-11xxx CPUs[/td] [/tr] [tr][td]i3-10xxx CPUs[/td] [td][/td] [/tr] [/table]

Motherboard Support

NVIDIA is working with motherboard manufacturers around the world to bring Resizable BAR support to compatible products. As of March 30th, 2021, the following manufacturers are offering SBIOS updates for select motherboards to enable Resizable BAR with GeForce RTX 30 Series desktop graphics cards:

[table][tr][td]Motherboard Manufacturers Supporting Resizable BAR[/td] [/tr] [tr][td]ASUS[/td] [td]ASRock[/td] [td]COLORFUL[/td] [td]EVGA[/td] [td]GIGABYTE[/td] [td]MSI[/td] [/tr] [/table]

Head to the manufacturers’ website to discover whether your motherboard is compatible, and to download and install updates if available. Additionally, please refer to the manufacturer’s documentation for enabling Resizable BAR support in the BIOS after installation of new firmware.

Please note, some motherboard manufacturers have unofficially extended Resizable BAR support to prior generation products. Your mileage may vary utilizing these solutions.

Enabling Resizable BAR On Your GeForce RTX 30 Series Graphics Card

Having updated your motherboard, you’ll need to update your GPU, and download and install a GeForce Game Ready Driver, released March 30th, 2021, or later.

Game Ready Driver Update

In practice, the performance benefits of Resizable BAR can vary substantially from game to game. In our testing, we’ve found some titles benefit from a few percent, up to 12%. However, there are also titles that see a decrease in performance, so NVIDIA will be pre-testing titles and using game profiles to enable Resizable BAR only when it has a positive performance impact. That way you won’t have to worry about bugs or performance decreases, and won’t have to rely on the community to benchmark each title and discover whether Resizable BAR is beneficial in the games you’re playing.

Popular, graphically demanding titles can run faster and smoother with Resizable BAR, further improving your experience

With the release of our GeForce Game Ready Driver on March 30th, 2021, we’re enabling Resizable BAR support on all GeForce RTX 30 Series GPUs, and expanding support to an additional 9 games, for a total of 17:

[table][tr][td]GeForce RTX 30 Series Resizable BAR Supported Games[/td] [/tr] [tr][td]As of March 30th, 2021[/td] [/tr] [tr][td]Assassin's Creed Valhalla[/td] [/tr] [tr][td]Battlefield V[/td] [/tr] [tr][td]Borderlands 3[/td] [/tr] [tr][td]Control[/td] [/tr] [tr][td]Cyberpunk 2077[/td] [/tr] [tr][td]Death Stranding[/td] [/tr] [tr][td]DIRT 5[/td] [/tr] [tr][td]F1 2020[/td] [/tr] [tr][td]Forza Horizon 4[/td] [/tr] [tr][td]Gears 5[/td] [/tr] [tr][td]Godfall[/td] [/tr] [tr][td]Hitman 2[/td] [/tr] [tr][td]Hitman 3[/td] [/tr] [tr][td]Horizon Zero Dawn[/td] [/tr] [tr][td]Metro Exodus[/td] [/tr] [tr][td]Red Dead Redemption 2[/td] [/tr] [tr][td]Watch Dogs Legion[/td] [/tr] [/table]

As we identify additional titles that benefit from Resizable BAR, we’ll introduce support via Game Ready Driver updates.

Before proceeding further through the Resizable BAR process, please download and install the latest GeForce Game Ready Driver, released March 30th, 2021, or later, and reboot your PC.

VBIOS Update

GeForce RTX 3060 desktop graphics cards launched February 25th, 2021 with a pre-installed Resizable BAR VBIOS. If you purchased one, all you need is a compatible motherboard and motherboard SBIOS, described above, and our newest Game Ready Driver.

GeForce RTX 3060 Ti, 3070, 3080 and 3090 desktop graphics cards may require a VBIOS update.

For GeForce RTX 30 Series Founders Edition graphics cards manufactured by NVIDIA, please head to our knowledge base, where you can download the firmware update tool, follow how-to instructions, and get further information. If your system does not support Resizable BAR there is no benefit to installing the firmware update, so please check you meet all other requirements first.

Firmware updates for custom GeForce RTX 30 Series graphics cards manufactured by our partners can be found on their websites. The links provided below are for your convenience only; partner hardware vendors are responsible for functionality and support of GPU VBIOS updates:

ASUS: Select GeForce RTX 30 Series --> Model --> Support --> Driver & Utility

COLORFUL

EVGA

Gainward: Select GPU --> Tool

Galax

GIGABYTE

INNO3D

MSI: Select GPU --> Support --> Utility --> choose MSI Dragon Center or MSI Live Update

Palit: Select GPU --> Tool

PNY

Zotac

If an update for your specific model is not yet available, do not install the Founders Edition firmware or other custom firmware as it is not compatible.

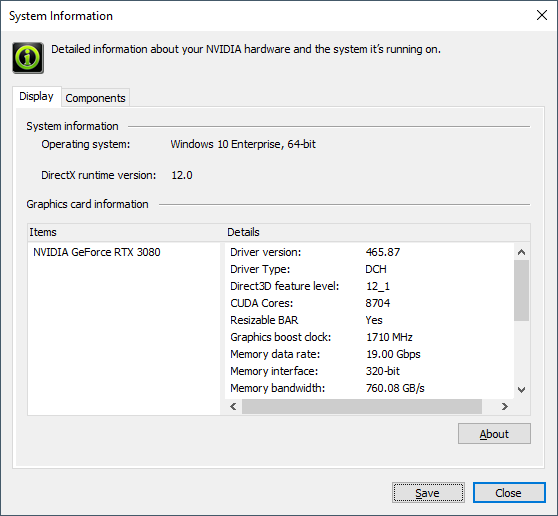

Verify Resizable BAR is Working

After you’ve updated all your components and installed our Game Ready Driver, you can verify Resizable BAR is working on your system by opening the NVIDIA Control Panel.

On the bottom left of the Control Panel, simply click “System Information”, and in the new window look for “Resizable BAR” on the right. If it says “Yes”, you’re set.

If it says “No”, please ensure Resizable BAR is enabled in your motherboard’s BIOS interface and reboot your PC.
Click to expand...

Source: https://www.nvidia.com/en-us/geforce...e-bar-support/

John Vil · Oct 12, 2024

moving and resizing

Hi Bob,

There may be several reasons why you are unable to resize or move applications after installing an update. To better assist you with your concern, we would like you to answer the questions below:

Does it happen only on one application?

Which application are you having issues resizing or moving?

In the meantime, we suggest you to run the Windows 10 troubleshooter. Kindly follow the steps below:

Press Windows key +X, select
Control panel

Change the view by option on the top right to
Large icons

Click on troubleshooting and click on the
view all option on the left panel

Run the Windows Store apps troubleshooter

Let us know how it goes.

Aswin_Anand · Oct 12, 2024

resizing photos in windows 10.

Hi,

Thank you for posting your query in Microsoft Community. I regret the inconvenience caused to you. Let me help you.

I suggest you to use the Photo Gallery and check if you are able to resize the photos.

Please follow the below steps.

Open Photo Gallery

Navigate to the folder where the photos are.

Select the photos

Select the 'Edit' tab

Select Resize

I hope the information helps. If you have any further queries, please feel free to contact us again. We will be happy to assist you.

Thank you.
