Windows 10: Intel® Core™ i9-10850K Processor Technical Specification

NiteshJha2 · Dec 29, 2020

Technical Specifications
Essentials
Vertical Segment
Desktop
Product Collection
10th Generation Intel® Core™ i9 Processors
Processor Number interpreting Intel® processor numbers or Intel® processor numbers for the Data Center." data-html="true" data-original-title="" data-toggler="popover" data-trigger="focus" data-wap_ref="ProcessorNumber" style="box-sizing:border-box;background:transparent;color:#0071c5;display:inline-block;font-variant-numeric:normal;font-variant-east-asian:normal;line-height:1;font-family:FontAwesome;font-size:inherit;text-rendering:auto;-webkit-font-smoothing:antialiased;transform:translate0px, 0px;" tabindex="0" title="">
i9-10850K
Status
Launched
Launch Date
Q3'20
Lithography
14 nm
Use Conditions For SKU specific use condition information, see PRQ report.
For current use condition information, see Intel UC CNDA site*." data-html="true" data-original-title="" data-toggler="popover" data-trigger="focus" data-wap_ref="CertifiedUseConditions" style="box-sizing:border-box;background:transparent;color:#0071c5;display:inline-block;font-variant-numeric:normal;font-variant-east-asian:normal;line-height:1;font-family:FontAwesome;font-size:inherit;text-rendering:auto;-webkit-font-smoothing:antialiased;transform:translate0px, 0px;" tabindex="0" title="">
PC/Client/Tablet
Performance
Intel® Thermal Velocity Boost Frequency
5.20 GHz
# of Cores
10
# of Threads
20
Processor Base Frequency
3.60 GHz
Max Turbo Frequency
5.20 GHz
Cache
20 MB Intel® Smart Cache
Bus Speed
8 GT/s
Intel® Turbo Boost Max Technology 3.0 Frequency
5.10 GHz
TDP
125 W
Configurable TDP-down Frequency
3.30 GHz
Configurable TDP-down
95 W
Supplemental Information
Embedded Options Available
No
Memory Specifications
Max Memory Size dependent on memory type
128 GB
Memory Types
DDR4-2933
Max # of Memory Channels
2
Max Memory Bandwidth
45.8 GB/s
ECC Memory Supported
No
Processor Graphics Intel® Graphics Technology page for more information." data-html="true" data-original-title="" data-toggler="popover" data-trigger="focus" data-wap_ref="ProcessorGraphicsModelId" style="box-sizing:border-box;background:transparent;color:#0071c5;display:inline-block;font-variant-numeric:normal;font-variant-east-asian:normal;line-height:1;font-family:FontAwesome;font-size:inherit;text-rendering:auto;-webkit-font-smoothing:antialiased;transform:translate0px, 0px;" tabindex="0" title="">
Intel® UHD Graphics 630
Graphics Base Frequency
350 MHz
Graphics Max Dynamic Frequency
1.20 GHz
Graphics Video Max Memory
64 GB
4K Support
Yes, at 60Hz
Max Resolution HDMI
4096 x 2160@30Hz
Max Resolution DP‡
4096 x 2304@60Hz
Max Resolution eDP - Integrated Flat Panel‡
4096 x 2304@60Hz
DirectX* Support
12
OpenGL* Support
4.5
Intel® Quick Sync Video
Yes
Intel® InTru™ 3D Technology
Yes
Intel® Clear Video HD Technology
Yes
Intel® Clear Video Technology
Yes
# of Displays Supported
3
Device ID
0x9BC5
Expansion Options
Scalability
1S Only
PCI Express Revision
3.0
PCI Express Configurations
Up to 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes
16
Package Specifications
Sockets Supported
FCLGA1200
Max CPU Configuration
1
Thermal Solution Specification
PCG 2015D
TJUNCTION
100°C
Package Size
37.5mm x 37.5mm
Advanced Technologies
Intel® Thermal Velocity Boost
Yes
Intel® Optane™ Memory Supported www.intel.com/OptaneMemory for configuration requirements." data-html="true" data-original-title="" data-toggler="popover" data-trigger="focus" data-wap_ref="OptaneMemorySupport" style="box-sizing:border-box;background:transparent;color:#0071c5;display:inline-block;font-variant-numeric:normal;font-variant-east-asian:normal;line-height:1;font-family:FontAwesome;font-size:inherit;text-rendering:auto;-webkit-font-smoothing:antialiased;transform:translate0px, 0px;" tabindex="0" title="">
Yes
Intel® Turbo Boost Max Technology 3.0
Yes
Intel® Turbo Boost Technology
2.0
Intel vPro® Platform Eligibility Learn more about Intel vPro®" data-html="true" data-original-title="" data-toggler="popover" data-trigger="focus" data-wap_ref="VProTechnology" style="box-sizing:border-box;background:transparent;color:#0071c5;display:inline-block;font-variant-numeric:normal;font-variant-east-asian:normal;line-height:1;font-family:FontAwesome;font-size:inherit;text-rendering:auto;-webkit-font-smoothing:antialiased;transform:translate0px, 0px;" tabindex="0" title="">
No
Intel® Hyper-Threading Technology
Yes
Intel® Virtualization Technology VT-x
Yes
Intel® Virtualization Technology for Directed I/O VT-d
Yes
Intel® VT-x with Extended Page Tables EPT
Yes
Intel® Transactional Synchronization Extensions
No
Intel® 64
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States
Yes
Enhanced Intel SpeedStep® Technology
Yes
Thermal Monitoring Technologies
Yes
Intel® Identity Protection Technology
Yes
Intel® Stable Image Platform Program SIPP Learn more about Intel® SIPP" data-html="true" data-original-title="" data-toggler="popover" data-trigger="focus" data-wap_ref="StableImagePlatformProgramVersion" style="box-sizing:border-box;background:transparent;color:#0071c5;display:inline-block;font-variant-numeric:normal;font-variant-east-asian:normal;line-height:1;font-family:FontAwesome;font-size:inherit;text-rendering:auto;-webkit-font-smoothing:antialiased;transform:translate0px, 0px;" tabindex="0" title="">
No
Security & Reliability
Intel® AES New Instructions
Yes
Secure Key
Yes
Intel® Software Guard Extensions Intel® SGX
Yes with Intel® ME
Intel® OS Guard
Yes
Intel® Trusted Execution Technology
No
Execute Disable Bit
Yes
Intel® Boot Guard
Yes

Source - https://www.dopetechnews.com/best-smartphone-processors-ranking/

https://www.intel.com/content/www/us/en/products/processors/core/i9-processors/i9-10850k.html

:)

dencal · Dec 29, 2020

New 8th Gen Intel Core i9, i7 and i5 Processors Come to Mobile

Yes, they're still vulnerable.

Intel's debut 6-core Core i9 CPUs could push gaming laptops past 5GHz speeds | PCWorld
Click to expand...

5GHz + speeds on a laptop eh?....tea and toast next.

Brink · Dec 29, 2020

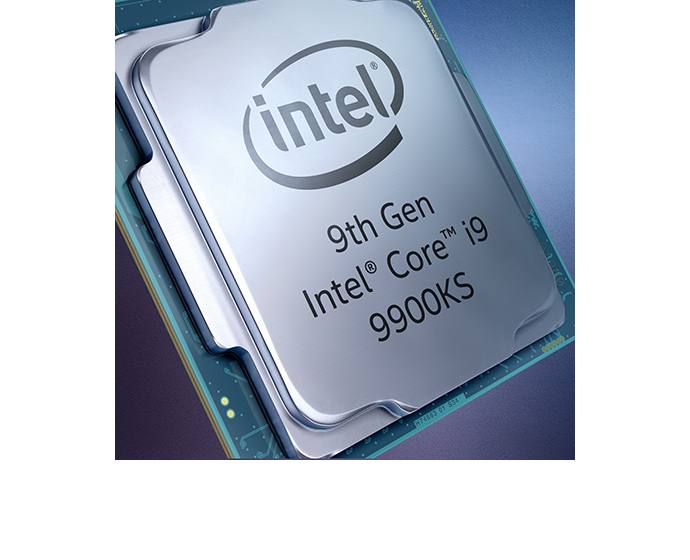

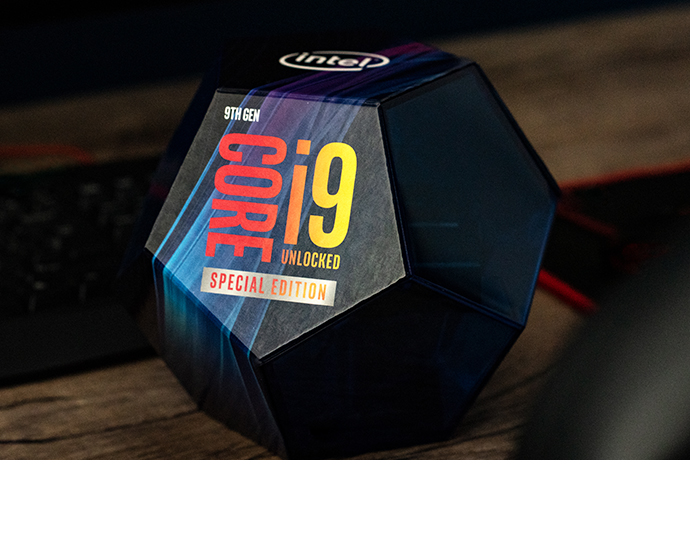

9th Gen Intel Core i9-9900KS Special Edition CPU Available Oct. 30

What’s New: Intel today announced full details and availability for the new 9th Gen Intel® Core™ i9-9900KS Special Edition processor. Delivering up to 5.0 GHz all-core turbo frequency out of the box for the ultimate gaming experience, the 9th Gen Intel Core i9-9900KS will be available beginning Oct. 30, with recommended customer price starting at $513. This special edition processor will be available for a limited time only and can be found at retailers worldwide.
“Intel has raised the bar for desktop gaming with the new 9th Gen Intel Core i9-9900KS Special Edition processor. Based on the 9th Gen Intel Core i9-9900K architecture, it’s the world’s best gaming desktop processor made even better and created specifically for extreme gamers who want the most performance possible. This processor demonstrates another innovation milestone for Intel, following last year’s limited edition 8th Gen Intel Core i7-8086K.”
–Frank Soqui, Intel vice president and general manager of the Desktop, Workstation and Channel Group
Why It’s Important: The i9-9900KS processor is unlocked and boasts eight cores and 16 threads, up to 4.0 GHz base frequency, 127W TDP, 16 MB Intel Smart Cache, and up to 40 platform PCIe lanes for gaming and overclocking.

Key Features and Capabilities:

Up to 5.0 GHz all-core turbo frequency; up to 4.0 GHz base frequency, which allow games to run faster when they scale across more cores for higher frame rates

Eight cores, 16 threads, 127W TDP, 16 MB Intel Smart Cache, and up to 40 platform PCIe lanes

Compatible with existing Z390 motherboards

Up to 27% faster mega-tasking when you simultaneously game, stream and record compared with a 3-year-old PC

Up to 35% more frames per second compared with a 3-year-old PC

Up to 17% faster 4K video editing compared with the previous generation and up to 78% faster compared with a 3-year-old PC

One-year warranty

Overclock confidently with new and enhanced features like Intel® Performance Maximizer, which makes it easy to dynamically and reliably custom-tune the unlocked processor based on the processor’s individual performance DNA

Gamers and overclocking enthusiasts will be able to take performance to the max with the 9th Gen Intel Core i9-9900KS Special Edition processor. Only select chips from Intel wafers can achieve this specification to run up to 5.0 GHz all-core turbo. Quantity is limited for this special edition product.

More Context: 9th Gen Intel Core i9-9900KS Special Edition processor website | Client Computing News at Intel
Click to expand...

Source: World’s Best for Gaming, Made Better: 9th Gen Intel Core i9-9900KS Special Edition Processor Available Oct. 30 | Intel Newsroom

See also: Intel(R) Core™ i9-9900KS Processor (16M Cache, up to 5.00 GHz) Product Specifications

Tweet

— Twitter API (@user) View on Twitter
Click to expand...

Ground Sloth · Dec 29, 2020

New 8th Gen Intel Core i9, i7 and i5 Processors Come to Mobile

Are these microprocessors still affected by Spectre and Meltdown vulnerabilities?
Click to expand...

Yes, they're still vulnerable.

The new mobile Core chips support the software mitigations—not the upcoming hardware redesign—that Intel patched in to fix the Spectre and Meltdown vulnerabilities. The performance numbers reflect the impact of the mitigations, executives said.
Click to expand...

Intel's debut 6-core Core i9 CPUs could push gaming laptops past 5GHz speeds | PCWorld
