Windows 10: Internal SSD showing in This PC but not in Windows Settings

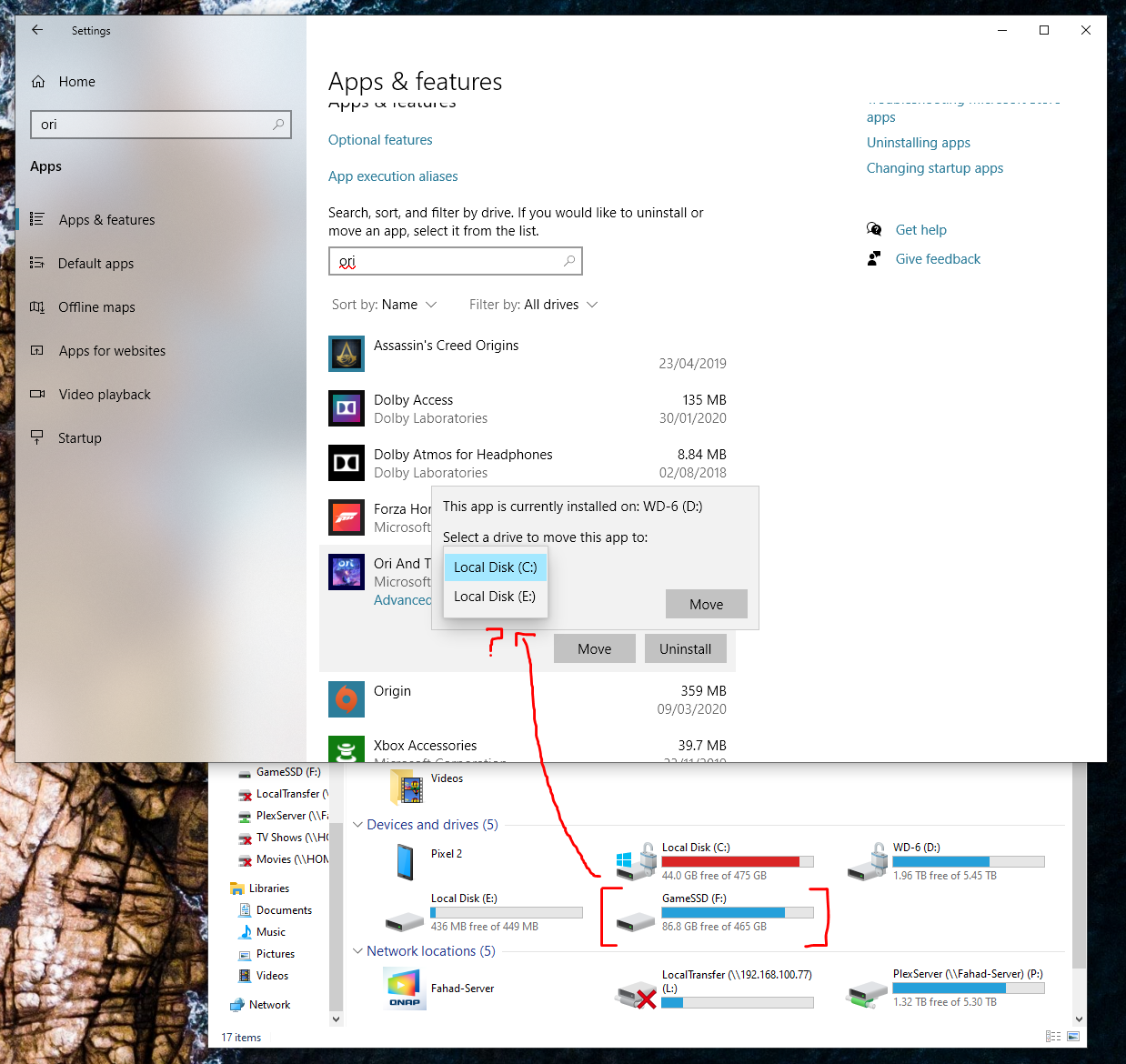

I have an issue in Windows 10 where my SSD which I use to install games on does not show in Windows 10 Settings, however it does appear under This PC.


This is an issue because this prevents me from moving Microsoft Store games to the SSD.


How do I fix this issue?




:)



PC Build Steps

Ok just because I like steps i am going to create some steps. Please give me the stamp of approval/disapproval

• Install system in case
  • Remember to connect SSD and optical to same SATA ports on motherboard
• Turn on PC
• setup HDD
• run blend test in prime95 for 30-60 min
  • run realtemp at the same time

• While in Prime95 test
  • if CPU goes above 70c in RealTemp, I have a leaky CPU
  • if my system locks up or blue screens, there is an instability in the system somewhere
  • if my system does not lock up or blue screen, my CPU is not damaged and I am in the clear!

What do you guys think??



Cloning to SSD then swapping drive letters


@SamHobbs
What you want done is very simple and can be done in short period of time. Here's my suggestion:
There's 2 modes that Windows can be installed: UEFI and the old legacy MBR. Open Disk Management, look at the disk where your C drive is, if there's a

1. EFI System Partition, your Windows was installed using UEFI.
2. System Reserved partition, your Windows was installed using MBR

Next, Connect your SSD to an available Sata port (no need to format or do anything). Download: Macrium Reflect Free . Install and run. Follow the steps below:

1. From Macrium, click on image this disk under your C drive and save it to either an Internal or External Drive. This will create a single backup image of the whole disk containing your C drive.
2. Again, from Macrium, click on Restore tab and select the image created from step 1, Select your SSD as the destination drive, click Next->Finish
3. Exit Macrium. If your Windows was installed using MBR, Open disk management and make sure the SSD is marked "Active" else go to next step.
4. Shutdown your PC. Disconnect the HD containing Windows C drive then connect your SSD to it.
5. Reboot. Your PC should boot and the Windows should have C as the drive letter.

NOTE: The procedure above is to backup your Windows to an image file then copy it back to the SSD. This ensures proper cluster size aligment for the SSD. In addition, Macrium also perform Trimming for the SSD. This is more preferable than cloning.



External SSD recognized as HDD in Windows 10

Hi,



Thank you for writing to Microsoft Community Forums.



I understand your query related to External SSD showing as HDD when connected to the PC using USB 3.0 port. For further clarity on the issue, please respond to the questions below.

1. Have you tried connecting the SSD to any other PC?

2. Are you using any converter to connect the SSD through USB 3.0 port?

3. Are you using a RAID configuration?


I have researched on your query and found that the SSD that you are using is an internal SSD drive, in this case I would suggest you to try updating the Intel Rapid Storage drivers from the

intel website and see if that helps.



In addition, this issue can occur if the SSD is connected to a SATA controller that is identified as RAID (SCSI). I would suggest you to try connecting the SSD to a SATA port that uses AHCI controller such as Intel SATA controller/chipset.



Please get back to us with the detailed information to assist you further.



Regards,

Prakhar Khare

Microsoft Community – Moderator
