Windows 10: Is firewall many config rule to allow services from different subnet?

Discus and support Is firewall many config rule to allow services from different subnet? in Windows 10 Gaming to solve the problem; Hi All,Thanks for reach me. I have question about built in firewall rules windowes. I have one host with e.g 10.10.10.2/24 with sharing folder and... Discussion in 'Windows 10 Gaming' started by RK_Windows, Dec 12, 2022.

  1. Is firewall many config rule to allow services from different subnet?


    Hi All,Thanks for reach me. I have question about built in firewall rules windowes. I have one host with e.g 10.10.10.2/24 with sharing folder and printer that need to access with different subnet e.g 10.10.11.x/24 network. When I tried to ping gateway to 10.10.10.1 all host is reply. But unfortunately when I ping to host 10.10.10.2 can't get reply RTO. So I checked all rule firewall but still can't get reply. When I just turn off the firewall all host from 10.10.11.x/24 can access the 10.10.10.2. I am still confused about built in firewall windows, meanwhile I have disable all rule when the

    :)

    RK_Windows, Dec 12, 2022
    #1
  2. tman24 Win User

    Inbound firewall rule for trusted subnets not working as expected

    I'm trying to create a basic domain firewall policy (primarily for Win7) that does two things;

    Allow two trusted subnets inbound connection to the host on ALL ports (so essentially open)

    Block everything else

    All outbound traffic will be unfiltered - only the inbound traffic is being controlled.

    I created a domain firewall policy

    I added an 'allow trusted subnets' inbound rule, which is as follows;

    Action: Allow the connection

    Allow all programs

    Protocol Type: Any

    Scope

    Local IP addresses: Any

    Remote IP addresses: My two subnets in CIDR annotation

    Advanced

    Profile: Domain

    Block Edge traversal

    I then set the Domain profile firewall state to ON, and set Inbound to Block (default) and Outbound to Allow (default). Running RSoP shows the policy is being applied, but here's the problem. Windows still allows inbound connectivity from all untrusted subnets!
    My understanding is that setting the Domain policy state to ON means that all traffic inbound will be blocked unless specifically allowed, and I specifically allowed connectivity from only two trusted subnets!

    I tried created a 'Deny All' rule after the allow one (even though that should be implied), and that worked great - it blocked everything inbound, even my trusted subnets!!!

    Anyone have any idea what's going on here. I'm very familiar with firewalls in general, but this just isn't working as it should do. No other firewall policies are being applied according to RSoP and my testing.

    Thanks

    tman24, Dec 12, 2022
    #2
  3. Windows firewall block comunication to another subnet

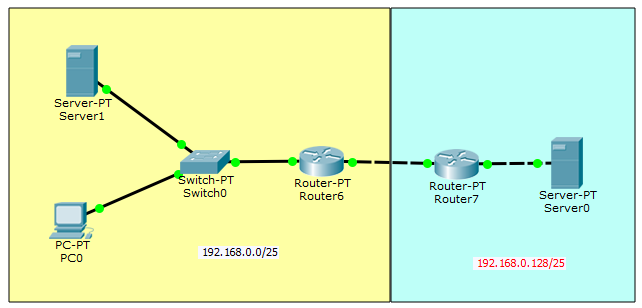

    My network has 2 subnets /25 and Server in each subnet. In one of the subnet is computer which is used for managing servers via RDP. But there is problem with firewall on this computer. Firewall allow to communicate within the same subnet but blocks communication
    into (or response coming back?) the second subnet.


    Is firewall many config rule to allow services from different subnet? 5PkhY.png


    I have tried to set inbound and outgoing rule, allow MSTSC by wizard in main firewall control panel and nothing worked me. What I have done wrong or how to set up it correctly?

    I had tested that when firewall is completely disabled communication works.

    I had tested that Windows blocks all ports. I can't use FTP and SSH too.

    Michal Žůrek, Dec 12, 2022
    #3
  4. Is firewall many config rule to allow services from different subnet?

    Windows 10 Firewall won't keep my inbound/outbound rules

    Hi,

    I realize the inconvenience caused to you regarding the Windows Firewall. I will certainly assist you.

    I suggest you to restart the Windows firewall service and check if it helps.

    Follow the below steps for the same.

    • Press Windows key + R simultaneously for Run.
    • Type services.msc and then Enter.
    • Right click on the Windows firewall services and then restart the services and check if it helps.
    If the issue still persists then I suggest you to remove and then read the Windows fire wall rule.

    Hope this information is helpful. Please get back to us with the information required, if you need further assistance, we’ll be glad to assist you.

    Anup Karkal, Dec 12, 2022
    #4
