Windows 10: Is it possible to setup MTU size on all of the subinterfaces same value for all in one command

Discus and support Is it possible to setup MTU size on all of the subinterfaces same value for all in one command in Windows 10 Customization to solve the problem; Hello,i have 7 subinterfaces, plus the loopback, my question is can i setup MTU size on more than one subinterface in one command line.thanks for any... Discussion in 'Windows 10 Customization' started by harlock5922, Apr 23, 2022.

  1. HARLOCK5922
    harlock5922 Win User

    Is it possible to setup MTU size on all of the subinterfaces same value for all in one command


    Hello,i have 7 subinterfaces, plus the loopback, my question is can i setup MTU size on more than one subinterface in one command line.thanks for any answer.

    :)

    harlock5922, Apr 23, 2022
    #1
  2. ROBERTSCHWERTZ
    RobertSchwertz Win User

    Windows MTU active value after pmtu ?

    Hallo Dexter,

    wrong headline by me - I am searching for the cached pmtu.

    Your proposal is the configured mtu - the pmtu will be handled during connection start, can be altered during connection and shall be cached for each route in time the session exist (
    RFC 1191 6.2 page 10 ).

    I want to know where I can get this value (or a list of values for each established session/ different route).

    The goal is to check if a mtu configured value on L3 switch/ router will become active or not ( like the 1492 for pppoe connections, the ones for several tunnels, ip mtu xxxx, ip tcp adjust-mss ).

    pmtu is anything between the min packet site (576) and the max mtu (1500 for Ethernet, if you use jumbo packets up to 9k).

    remark:

    "Then you'll see all the connections' MTU in use."

    - not really -

    then I can see the mtu that is configured on network adapter.

    RobertSchwertz, Apr 23, 2022
    #2
  3. DEXTER LIEN
    Dexter Lien Win User
    Windows MTU active value after pmtu ?

    Hi Robert, I am Dexter, an Independent Advisor, here to help you.

    You should open a CMD prompt and run this command:

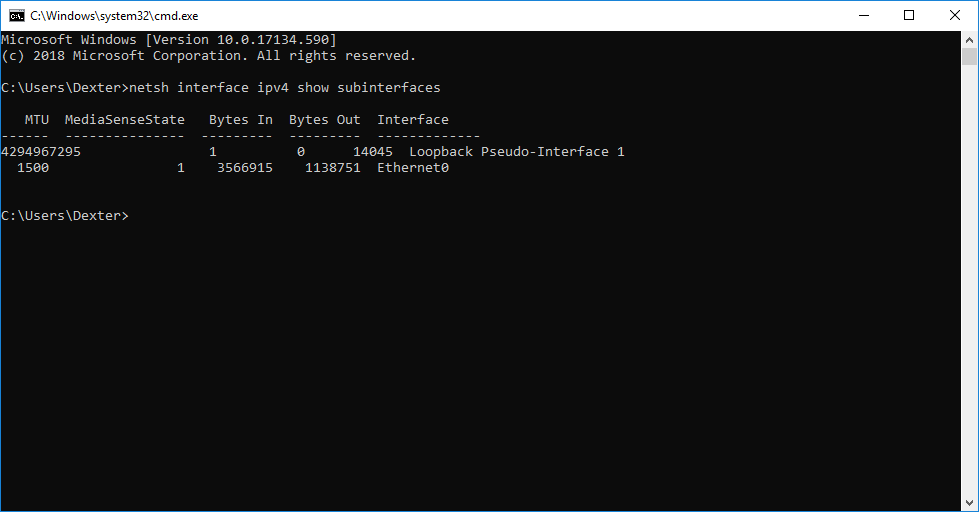

    netsh interface ipv4 show subinterfaces

    Then you'll see all the connections' MTU in use.

    I hope this helps. Feel free to ask back any questions and let me know how it goes. I will keep working with you until it's resolved.

    Is it possible to setup MTU size on all of the subinterfaces same value for all in one command b0ebd48e-f20b-462a-9564-1529baf6d385?upload=true.png

    Dexter Lien, Apr 23, 2022
    #3
  4. ROBERTSCHWERTZ
    RobertSchwertz Win User

    Is it possible to setup MTU size on all of the subinterfaces same value for all in one command

    Windows MTU active value after pmtu ?

    How can I get the value for the pmtu windows had coordinated with all network components in path?

    I can set it using netsh or registry - but which value is in use after the automatics?

    In switches/ routers I can set mtu, ip mtu, tcp mss...

    But how can I get the information which mtu is in use (not the confired one) by Windows ?

    RobertSchwertz, Apr 23, 2022
    #4
