Windows 10: Keyboard layout creator error

Hello,

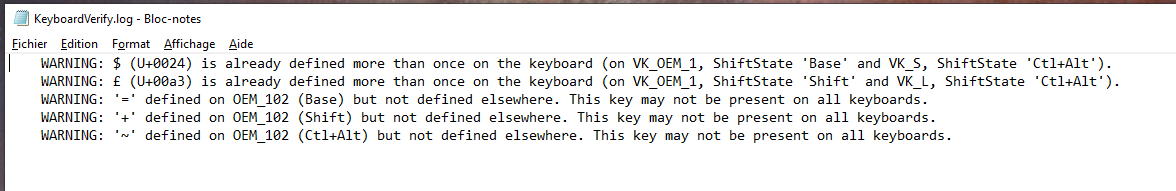

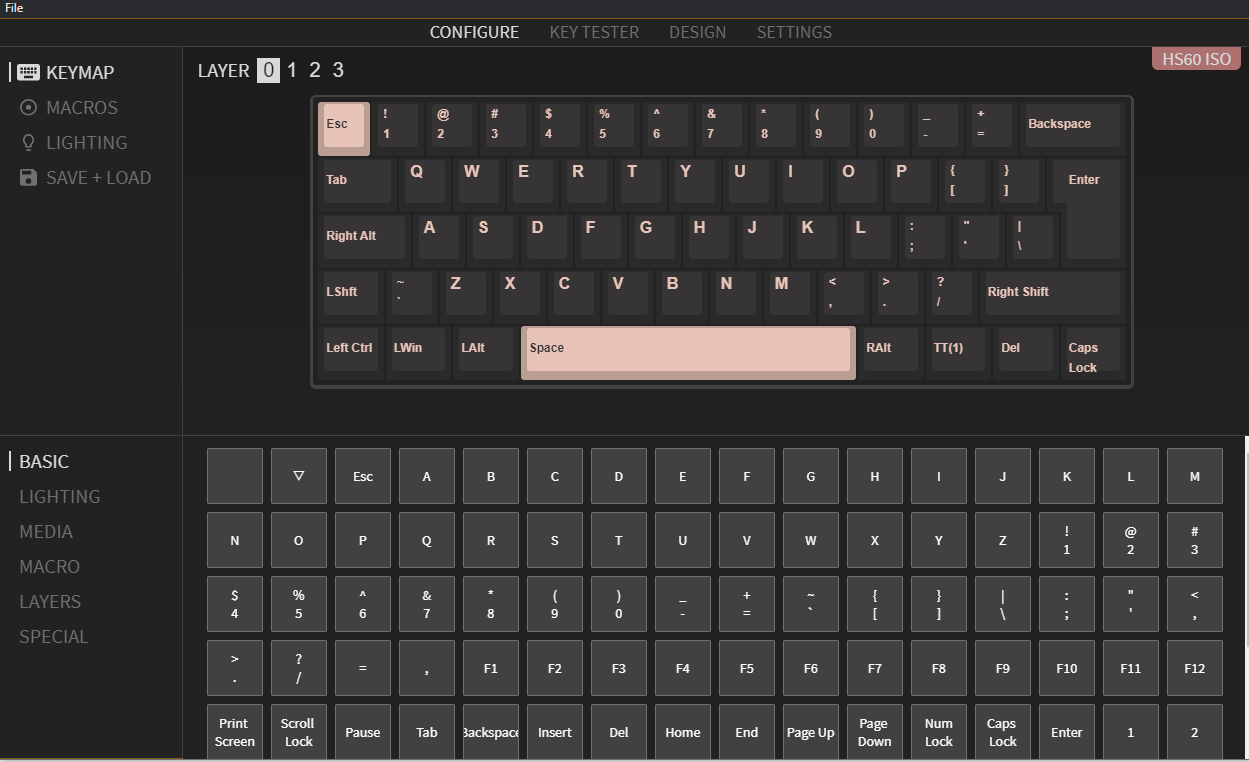

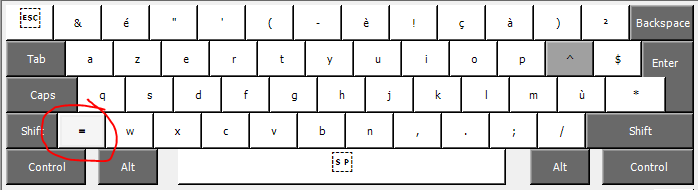

I have made a custom layout on my keyboard on the keyboard layout creator 1.4 but anything I put on vk_oem_102 the key next to the left shift key on iso layouts yields the error message saying that the key is not defined elsewhere and that it may not be present on all keyboards. When I simply hover the key before trying to validate, there is already the message ****NOT PRESENT ON ALL KEYBOARDS****. I used VIA to configure my pcb and I tried multiple keys on that spot but it just doesn't want to work. I have also tried changing the keyboard language in the project properties but that didn't help... Does anybody know how I can make that key work it does work if I use a classic preconfigured french layout without going through the layout creator, but not the caracters I want

Thanks!



:)



Microsoft Keyboard Layout Creator don't build

Hi Frank,

We need to ask you a few questions for us to better understand the situation. Please answer the following information:

• For clarification, what do you mean by "Microsoft Keyboard Layout Creator 1.4.6000.2 under Windows 10 don't build"?
• Are you trying to use the Microsoft Keyboard Layout Creator? If yes, what happen when you launching the app?
• Are you getting an error message?

We'll keep an eye out on your response.



keyboard layout creation in windows 10?

Hi,

We appreciate you for being a part of Windows 10.

Before proceeding, we need more information to help you better.

•
  Do you get any error when you try to Microsoft layout creator app in Windows 10?

•
  Which version of Microsoft keyboard layout creator you use?


I suggest you to refer to the section
Change the keyboard layout or other method you use to type in the below article on how to change the keyboard layout and check if it helps.

Change your language or keyboard

http://windows.microsoft.com/en-in/windows-8/add-language-keyboard

The above article applies to Windows 10 also.

Reference: You may try to download the
Microsoft Keyboard Layout Creator 1.4 (Latest version) and check if it works.

Microsoft Keyboard Layout Creator 1.4

http://www.microsoft.com/en-us/download/details.aspx?id=22339

I hope the above information helps. Kindly let us know if you need any further assistance with Windows. We are glad to assist you.

Thank you.



MS Keyboard Layout Creator

Hi,

Thank you for writing to Microsoft Community Forums.

1. What is the version of Windows that you are using?

Based on my search, I see that the Microsoft Keyboard Layout creator is applicable for Windows Server 2003 Service Pack 1, Windows Vista, Windows XP, Windows XP Service Pack 1, and Windows XP Service Pack 2.

Here is the
system requirements information for Microsoft Keyboard Layout Creator 1.4

Follow the below steps, and try to install the Microsoft Keyboard Layout Creator.

1. Press 'Windows key + R' to open 'Run Command'.

2. Type 'appwiz.cpl' without quotes, and press enter.

3. In the 'Programs and features' window, click on 'Turn Windows features on or off'.

4. Enable '.NET Framework 3.5 (includes .NET 2.0 and 3.0)' option.

5. Click on 'OK'.

Follow the on-screen prompts, and restart the system if required. This will install the .NET Framework feature. Try to install the MS Keyboard Layout Creator, and check.

Hope it helps.

Naveen M

Microsoft Community - Moderator
