Windows 10: Leaked Specs for 10th Gen Intel Comet Lake S series desktop processors

Brink · Dec 28, 2019

Performance Matters:

Up to 4.8 GHz All-Core Turbo

Up to 5.3 / 4.0 GHz Thermal Velocity Boost Singe / All-core Turbo

Up to 5.2 GHz Intel Turbo Boost Max 3.0

Up to 10C and 20T

Up to DDR4-2933 MHz dual-channel

Enhanced Core & Memory Overclocking

Active Core Group Tuning

10th Gen Intel Core Desktop (CML-S) Processor Diagram

NEW: Increased Performance (vs previous-gen) with up to 10 processor cores

Media & display features for premium 4k content support

NEW: enhanced core & memory overclocking

NEW: Intel Wifi 6 (GIG+) support

Intel Optane memory support

Up to 30 PCH-H high speed I/O lanes with port flexibility

Up to 40 PCIE 3.0 lanes (16 CPU/up to 24 PCH)

Integrated USB 3.2 2×1 (10Gb/s) support

NEW: Intel Rapid Store Technology (Intel RST) 17.X

Programmable (Open FW SDK) Quad-core audio DSP

C10 & S01X support for modern standby

NEW and Featured Technologies

NEW: Up to 5.3 GHz with Intel Thermal Velocity Boost

NEW: Intel Turbo Boost Max Technology 3.0

NEW: Intel Hyperthreading Technology across 10th Gen Core i9 and i3 processors

NEW: Up to 10 cores 20M Intel Smart Cache

NEW: Up to DDR4-2933 support

NEW: Enhanced Core and & Memory Overclocking

NEW: Intel 400 Series Chipset

NEW: 2.5G Intel Ethernet Connection i225 (Foxville) support

NEW: Integrated WiFi 6(AX201) Gig+ support using CNBR

[table][tr]Intel 10th Gen Core-S Clock Speeds (Dec 28) [/tr] [tr]Core SKU Cores / Threads Base Clock Single Core Turbo Max Turbo 3.0 All Core Turbo TDP [/tr] [tr]i9-10900K [td]10C/20T[/td] [td]3.7 GHz[/td] [td]5.1 GHz[/td] [td]5.2 GHz*[/td] [td]4.8 GHz[/td] [td]125W[/td] [/tr] [tr]i9-10900 [td]10C/20T[/td] [td]2.8 GHz[/td] [td]5.0 GHz[/td] [td]5.1 GHz*[/td] [td]4.5 GHz[/td] [td]65W[/td] [/tr] [tr]i7-10700K [td]8C/16T[/td] [td]3.8 GHz[/td] [td]5.0 GHz[/td] [td]5.1 GHz[/td] [td]4.7 GHz[/td] [td]125W[/td] [/tr] [tr]i7-10700 [td]8C/16T[/td] [td]2.9 GHz[/td] [td]4.7 GHz[/td] [td]4.8 GHz[/td] [td]4.6 GHz[/td] [td]65W[/td] [/tr] [tr]i5-10600K [td]6C/12T[/td] [td]4.1 GHz[/td] [td]4.8 GHz[/td] [td]NA[/td] [td]4.5 GHz[/td] [td]125W[/td] [/tr] [tr]i5-10600 [td]6C/12T[/td] [td]3.3 GHz[/td] [td]4.8 GHz[/td] [td]NA[/td] [td]4.4 GHz[/td] [td]65W[/td] [/tr] [tr]i5-10500 [td]6C/12T[/td] [td]3.1 GHz[/td] [td]4.5 GHz[/td] [td]NA[/td] [td]4.2 GHz[/td] [td]65W[/td] [/tr] [tr]i5-10400 [td]6C/12T[/td] [td]2.9 GHz[/td] [td]4.3 GHz[/td] [td]NA[/td] [td]4.0 GHz[/td] [td]65W[/td] [/tr] [tr]i3-10320 [td]4C/8T[/td] [td]3.8 GHz[/td] [td]4.6 GHz[/td] [td]NA[/td] [td]4.4 GHz[/td] [td]65W[/td] [/tr] [tr]i3-10300 [td]4C/8T[/td] [td]3.7 GHz[/td] [td]4.4 GHz[/td] [td]NA[/td] [td]4.2 GHz[/td] [td]65W[/td] [/tr] [tr]i3-10100 [td]4C/8T[/td] [td]3.6 GHz[/td] [td]4.3 GHz[/td] [td]NA[/td] [td]4.1 GHz[/td] [td]65W[/td] [/tr] [tr]* Intel Thermal Velocity Boost (single core / all core): 10900K: 5.3/4.9 GHz; 10900: 5.1/4.6 GHz [/tr] [/table]
Click to expand...

Read more:

Intel Core i9-10900K to boost up to 5.3 GHz, specifications of 10th Gen Core Comet Lake-S leaked - VideoCardz.com

Exclusivo: Asi formara la decima generacion Core de Intel - i9-10900K Buque insignia - Informatica Cero

:)

Brink · Dec 28, 2019

New 10th Gen Intel Core Comet Lake mobile processors

Intel Corporation in August 2019 introduced eight 10th Gen Intel Core processors for modern laptop computing. The new mobile PC processors (formerly code-named “Comet Lake”) are tailor-made to deliver increased productivity and performance scaling for demanding, multithreaded workloads while still enabling thin-and-light laptop and 2 in 1 designs.

What’s New: Today, Intel introduced eight additional 10th Gen Intel® Core™ processors for modern laptop computing. The new mobile PC processors (formerly code-named “Comet Lake”) are tailor-made to deliver increased productivity and performance scaling for demanding, multithreaded workloads while still enabling thin-and-light laptop and 2 in 1 designs with uncompromising battery life1. These processors are performance powerhouses that bring double digit performance gains compared with the previous generation2. The lineup also includes Intel’s first 6-core processor in the U-series, faster CPU frequencies, faster memory interfaces and the industry redefining connectivity with Intel® Wi-Fi 6 (Gig+) and broader scaling of Thunderbolt™ 3. More than 90 additional designs based on the 10th Gen Intel Core processor family will hit the shelves for the holiday season.
“Our 10th Gen Intel Core mobile processors provide customers with the industry-leading range of products that deliver the best balance of performance, features, power and design for their specific needs. From multitasking to everyday content creation, the newest additions to the family scale performance for even higher levels of productivity — in addition to offering best-in-class platform connectivity via Wi-Fi 6 (Gig+) and Thunderbolt 3 that people expect with 10th Gen.”
–Chris Walker, Intel corporate vice president and general manager of Mobility Client Platforms in the Client Computing Group
Why It Matters: Taking advantage of Intel’s world-class portfolio of technologies and intellectual property, the 10th Gen Intel Core processor family delivers a range of workload-optimized platforms to address diverse computing needs and experiences. The new 10th Gen Intel Core processors leverage the improvements in intra-node optimizations on Intel’s highly optimized 14nm process technology that enable up to 16% overall performance gains2 and over 41% better productivity and multitasking on Microsoft Office 365* compared with the previous generation3 — all without compromising battery life1. Additionally, they integrate the best wireless connectivity with Intel WiFi6 (Gig+)4 and support Thunderbolt 3, the fastest and most versatile port available5.

Earlier this month, Intel launched the first products in 10th Gen Intel Core processor family, which were developed on the 10nm process technology and focus on bringing high-performance artificial intelligence (AI) to the PC at scale, a big leap forward in graphics performance and best-in-class connectivity. The new processors introduced today share the same leading platform connectivity, while expanding the family with processors for scaling performance and frequencies for modern productivity workloads. The result is a complete family of processors that complement each other, giving people choices for what usages matter most to them and re-imagining the possibilities of a modern laptop experience.

What They Feature:

The new 10th Gen Intel Core processors range from Intel Core i3 to Intel Core i7 and feature:

Up to 6 cores and 12 threads

Up to 4.9 GHz max turbo frequency

Up to 12MB Intel Smart Cache

Configurable up to 25W for maximum performance (U-series)

Configurable down to 4.5W for 4-core fanless designs (Y-series)

Up to 1.15 GHz graphics frequency

LPDDR4x, LPDDR3, DDR4 memory speed increase to 2666 MT/s

People can also expect the same great connectivity across the entire 10th Gen Intel Core processor family. Integrated Intel Wi-Fi 6 (Gig+) brings enhanced WPA3 security for additional peace of mind and is nearly 3 times faster6 to enable quick file downloads and more responsive performance throughout the home. Systems with these processors can also support a Thunderbolt 3 controller enabling up to four Thunderbolt 3 ports, each capable of delivering power, download speeds of 40 Gb/s and connecting to the thousands of docks, displays and peripherals in the market, all via a single cable.

Finally, the new processors scale the number of designs optimized with Intel® Adaptix™ Technology, supporting modern standby for faster wake and enabling multiple voice assistant services built into the PCs. Within Intel Adaptix Technology, Intel® Dynamic Tuning Technology enables OEM partners to tune 10th Gen Intel Core processor-based systems to achieve even more performance — ranging from 8% to 12% on a typical system7. On select designs, Intel Dynamic Tuning Technology now offers the first ever AI-based pre-trained algorithms to predict workloads and allow higher turbo burst when responsiveness is needed and extended time in turbo for sustained workloads.

rznBRl2e_MI

How to Get Them: Laptops and 2 in 1s powered by the new 10th Gen Intel Core processors will be available from PC manufacturers for the holiday season. Select systems from PC manufacturers based on 10th Gen Intel Core processors are on track for verification through Intel’s innovation program code-named “Project Athena.” Look for the “Engineered for Mobile Performance” signage online and in retail stores this fall for the best of 10th Gen Intel Core processor-based systems from PC manufacturers.

More Context: 10th Gen Intel Core Press Kit | 10th Gen Intel Core Product Brief | 10th Gen Intel Core Press Deck

The Details:

[table][tr][td][/td] [td]Processor Number[/td] [td]IA Cores/ Threads[/td] [td]Graphics (EUs)[/td] [td]Cache[/td] [td]Nominal TDP/ Config UP TDP[/td] [td]Base Freq (GHz)[/td] [td]Max Single Core Turbo (GHz)[/td] [td]Max All Core Turbo (GHz)[/td] [td]Graphics Max Freq (GHz)[/td] [td]MemorySupport[/td] [/tr] [tr][td]U-Series[/td] [td]Intel® Core™ i7-10710U[/td] [td]6/12[/td] [td]24[/td] [td]12MB[/td] [td]15W/25W[/td] [td]1.1[/td] [td]4.7[/td] [td]3.9[/td] [td]1.15[/td] [td]LPDDR4x 2933LPDDR3 2133 DDR4 2666[/td] [/tr] [tr][td][/td] [td]Intel® Core™ i7-10510U[/td] [td]4/8[/td] [td]24[/td] [td]8MB[/td] [td]15W/25W[/td] [td]1.8[/td] [td]4.9[/td] [td]4.3[/td] [td]1.15[/td] [td]LPDDR4x 2933LPDDR3 2133 DDR4 2666[/td] [/tr] [tr][td][/td] [td]Intel® Core™ i5-10210U[/td] [td]4/8[/td] [td]24[/td] [td]6MB[/td] [td]15W/25W[/td] [td]1.6[/td] [td]4.2[/td] [td]3.9[/td] [td]1.10[/td] [td]LPDDR4x 2933LPDDR3 2133 DDR4 2666[/td] [/tr] [tr][td][/td] [td]Intel® Core™ i3-10110U[/td] [td]2/4[/td] [td]23[/td] [td]4MB[/td] [td]15W/25W[/td] [td]2.1[/td] [td]4.1[/td] [td]3.7[/td] [td]1.00[/td] [td]LPDDR4x 2933LPDDR3 2133 DDR4 2666[/td] [/tr] [tr][td][/td] [td]Processor Number[/td] [td]IA Cores/ Threads[/td] [td]Graphics(EUs)[/td] [td]Cache[/td] [td]Config Down TDP/Nominal TDP/ Config UP TDP[/td] [td]Base Freq (GHz)[/td] [td]Max Single Core Turbo (GHz)[/td] [td]Max All Core Turbo (GHz)[/td] [td]Graphics Max Freq (GHz)[/td] [td]MemorySupport[/td] [/tr] [tr][td]Y-Series[/td] [td]Intel® Core™ i7-10510Y[/td] [td]4/8[/td] [td]24[/td] [td]8MB[/td] [td]4.5W/7W/9W[/td] [td]1.2[/td] [td]4.5[/td] [td]3.2[/td] [td]1.15[/td] [td]LPDDR3 2133[/td] [/tr] [tr][td][/td] [td]Intel® Core™ i5-10310Y[/td] [td]4/8[/td] [td]24[/td] [td]6MB[/td] [td]5.5W/7W/9W[/td] [td]1.1[/td] [td]4.1[/td] [td]2.8[/td] [td]1.05[/td] [td]LPDDR3 2133[/td] [/tr] [tr][td][/td] [td]Intel® Core™ i5-10210Y[/td] [td]4/8[/td] [td]24[/td] [td]6MB[/td] [td]4.5W/7W/9W[/td] [td]1.0[/td] [td]4.0[/td] [td]2.7[/td] [td]1.05[/td] [td]LPDDR3 2133[/td] [/tr] [tr][td][/td] [td]Intel® Core™ i3-10110Y[/td] [td]2/4[/td] [td]24[/td] [td]4MB[/td] [td]5.5W/7W/9W[/td] [td]1.0[/td] [td]4.0[/td] [td]3.7[/td] [td]1.00[/td] [td]LPDDR3 2133[/td] [/tr] [/table]
Click to expand...

Source: https://newsroom.intel.com/news/inte...ormance-gains/

Tweet

— Twitter API (@user) View on Twiiter
Click to expand...

Brink · Dec 28, 2019

New 10th Gen Intel Core Comet Lake mobile processors

Intel Corporation in August 2019 introduced eight 10th Gen Intel Core processors for modern laptop computing. The new mobile PC processors (formerly code-named “Comet Lake”) are tailor-made to deliver increased productivity and performance scaling for demanding, multithreaded workloads while still enabling thin-and-light laptop and 2 in 1 designs.

What’s New: Today, Intel introduced eight additional 10th Gen Intel® Core™ processors for modern laptop computing. The new mobile PC processors (formerly code-named “Comet Lake”) are tailor-made to deliver increased productivity and performance scaling for demanding, multithreaded workloads while still enabling thin-and-light laptop and 2 in 1 designs with uncompromising battery life1. These processors are performance powerhouses that bring double digit performance gains compared with the previous generation2. The lineup also includes Intel’s first 6-core processor in the U-series, faster CPU frequencies, faster memory interfaces and the industry redefining connectivity with Intel® Wi-Fi 6 (Gig+) and broader scaling of Thunderbolt™ 3. More than 90 additional designs based on the 10th Gen Intel Core processor family will hit the shelves for the holiday season.
“Our 10th Gen Intel Core mobile processors provide customers with the industry-leading range of products that deliver the best balance of performance, features, power and design for their specific needs. From multitasking to everyday content creation, the newest additions to the family scale performance for even higher levels of productivity — in addition to offering best-in-class platform connectivity via Wi-Fi 6 (Gig+) and Thunderbolt 3 that people expect with 10th Gen.”
–Chris Walker, Intel corporate vice president and general manager of Mobility Client Platforms in the Client Computing Group
Why It Matters: Taking advantage of Intel’s world-class portfolio of technologies and intellectual property, the 10th Gen Intel Core processor family delivers a range of workload-optimized platforms to address diverse computing needs and experiences. The new 10th Gen Intel Core processors leverage the improvements in intra-node optimizations on Intel’s highly optimized 14nm process technology that enable up to 16% overall performance gains2 and over 41% better productivity and multitasking on Microsoft Office 365* compared with the previous generation3 — all without compromising battery life1. Additionally, they integrate the best wireless connectivity with Intel WiFi6 (Gig+)4 and support Thunderbolt 3, the fastest and most versatile port available5.

Earlier this month, Intel launched the first products in 10th Gen Intel Core processor family, which were developed on the 10nm process technology and focus on bringing high-performance artificial intelligence (AI) to the PC at scale, a big leap forward in graphics performance and best-in-class connectivity. The new processors introduced today share the same leading platform connectivity, while expanding the family with processors for scaling performance and frequencies for modern productivity workloads. The result is a complete family of processors that complement each other, giving people choices for what usages matter most to them and re-imagining the possibilities of a modern laptop experience.

What They Feature:

The new 10th Gen Intel Core processors range from Intel Core i3 to Intel Core i7 and feature:

Up to 6 cores and 12 threads

Up to 4.9 GHz max turbo frequency

Up to 12MB Intel Smart Cache

Configurable up to 25W for maximum performance (U-series)

Configurable down to 4.5W for 4-core fanless designs (Y-series)

Up to 1.15 GHz graphics frequency

LPDDR4x, LPDDR3, DDR4 memory speed increase to 2666 MT/s

People can also expect the same great connectivity across the entire 10th Gen Intel Core processor family. Integrated Intel Wi-Fi 6 (Gig+) brings enhanced WPA3 security for additional peace of mind and is nearly 3 times faster6 to enable quick file downloads and more responsive performance throughout the home. Systems with these processors can also support a Thunderbolt 3 controller enabling up to four Thunderbolt 3 ports, each capable of delivering power, download speeds of 40 Gb/s and connecting to the thousands of docks, displays and peripherals in the market, all via a single cable.

Finally, the new processors scale the number of designs optimized with Intel® Adaptix™ Technology, supporting modern standby for faster wake and enabling multiple voice assistant services built into the PCs. Within Intel Adaptix Technology, Intel® Dynamic Tuning Technology enables OEM partners to tune 10th Gen Intel Core processor-based systems to achieve even more performance — ranging from 8% to 12% on a typical system7. On select designs, Intel Dynamic Tuning Technology now offers the first ever AI-based pre-trained algorithms to predict workloads and allow higher turbo burst when responsiveness is needed and extended time in turbo for sustained workloads.

rznBRl2e_MI

How to Get Them: Laptops and 2 in 1s powered by the new 10th Gen Intel Core processors will be available from PC manufacturers for the holiday season. Select systems from PC manufacturers based on 10th Gen Intel Core processors are on track for verification through Intel’s innovation program code-named “Project Athena.” Look for the “Engineered for Mobile Performance” signage online and in retail stores this fall for the best of 10th Gen Intel Core processor-based systems from PC manufacturers.

More Context: 10th Gen Intel Core Press Kit | 10th Gen Intel Core Product Brief | 10th Gen Intel Core Press Deck

The Details:

[table][tr][td][/td] [td]Processor Number[/td] [td]IA Cores/ Threads[/td] [td]Graphics (EUs)[/td] [td]Cache[/td] [td]Nominal TDP/ Config UP TDP[/td] [td]Base Freq (GHz)[/td] [td]Max Single Core Turbo (GHz)[/td] [td]Max All Core Turbo (GHz)[/td] [td]Graphics Max Freq (GHz)[/td] [td]MemorySupport[/td] [/tr] [tr][td]U-Series[/td] [td]Intel® Core™ i7-10710U[/td] [td]6/12[/td] [td]24[/td] [td]12MB[/td] [td]15W/25W[/td] [td]1.1[/td] [td]4.7[/td] [td]3.9[/td] [td]1.15[/td] [td]LPDDR4x 2933LPDDR3 2133 DDR4 2666[/td] [/tr] [tr][td][/td] [td]Intel® Core™ i7-10510U[/td] [td]4/8[/td] [td]24[/td] [td]8MB[/td] [td]15W/25W[/td] [td]1.8[/td] [td]4.9[/td] [td]4.3[/td] [td]1.15[/td] [td]LPDDR4x 2933LPDDR3 2133 DDR4 2666[/td] [/tr] [tr][td][/td] [td]Intel® Core™ i5-10210U[/td] [td]4/8[/td] [td]24[/td] [td]6MB[/td] [td]15W/25W[/td] [td]1.6[/td] [td]4.2[/td] [td]3.9[/td] [td]1.10[/td] [td]LPDDR4x 2933LPDDR3 2133 DDR4 2666[/td] [/tr] [tr][td][/td] [td]Intel® Core™ i3-10110U[/td] [td]2/4[/td] [td]23[/td] [td]4MB[/td] [td]15W/25W[/td] [td]2.1[/td] [td]4.1[/td] [td]3.7[/td] [td]1.00[/td] [td]LPDDR4x 2933LPDDR3 2133 DDR4 2666[/td] [/tr] [tr][td][/td] [td]Processor Number[/td] [td]IA Cores/ Threads[/td] [td]Graphics(EUs)[/td] [td]Cache[/td] [td]Config Down TDP/Nominal TDP/ Config UP TDP[/td] [td]Base Freq (GHz)[/td] [td]Max Single Core Turbo (GHz)[/td] [td]Max All Core Turbo (GHz)[/td] [td]Graphics Max Freq (GHz)[/td] [td]MemorySupport[/td] [/tr] [tr][td]Y-Series[/td] [td]Intel® Core™ i7-10510Y[/td] [td]4/8[/td] [td]24[/td] [td]8MB[/td] [td]4.5W/7W/9W[/td] [td]1.2[/td] [td]4.5[/td] [td]3.2[/td] [td]1.15[/td] [td]LPDDR3 2133[/td] [/tr] [tr][td][/td] [td]Intel® Core™ i5-10310Y[/td] [td]4/8[/td] [td]24[/td] [td]6MB[/td] [td]5.5W/7W/9W[/td] [td]1.1[/td] [td]4.1[/td] [td]2.8[/td] [td]1.05[/td] [td]LPDDR3 2133[/td] [/tr] [tr][td][/td] [td]Intel® Core™ i5-10210Y[/td] [td]4/8[/td] [td]24[/td] [td]6MB[/td] [td]4.5W/7W/9W[/td] [td]1.0[/td] [td]4.0[/td] [td]2.7[/td] [td]1.05[/td] [td]LPDDR3 2133[/td] [/tr] [tr][td][/td] [td]Intel® Core™ i3-10110Y[/td] [td]2/4[/td] [td]24[/td] [td]4MB[/td] [td]5.5W/7W/9W[/td] [td]1.0[/td] [td]4.0[/td] [td]3.7[/td] [td]1.00[/td] [td]LPDDR3 2133[/td] [/tr] [/table]
Click to expand...

Source: https://newsroom.intel.com/news/inte...ormance-gains/

Tweet

— Twitter API (@user) View on Twiiter

Brink · Dec 28, 2019

Intel Launches First 10th Gen Intel Core Ice Lake Processors

A photo shows the 10th Gen Intel Core processor on a motherboard. On Aug. 1, 2019, Intel launches 11 new, highly integrated 10th Gen Intel Core processors designed for remarkably sleek 2 in 1s and laptops. (Source: Intel Corporation)

On Aug. 1, 2019, Intel launches 11 new, highly integrated 10th Gen Intel Core processors designed for remarkably sleek 2 in 1s and laptops. The processors feature new Intel Iris Plus graphics for stunning entertainment. (Source: Intel Corporation)

What’s New: Today, Intel officially launched 11 new, highly integrated 10th Gen Intel® Core™ processors designed for remarkably sleek 2 in 1s and laptops. The processors bring high-performance artificial intelligence (AI) to the PC at scale, feature new Intel® Iris® Plus graphics for stunning entertainment and enable the best connectivity1 with Intel® Wi-Fi 6 (Gig+) and Thunderbolt™ 3. Systems are expected from PC manufacturers for the holiday season.
“These 10th Gen Intel Core processors shift the paradigm for what it means to deliver leadership in mobile PC platforms. With broad-scale AI for the first time on PCs, an all-new graphics architecture, best-in-class Wi-Fi 6 (Gig+) and Thunderbolt 3 – all integrated onto the SoC, thanks to Intel’s 10nm process technology and architecture design – we’re opening the door to an entirely new range of experiences and innovations for the laptop.”
–Chris Walker, Intel corporate vice president and general manager of Mobility Client Platforms in the Client Computing Group
Why It Matters: 10th Gen Intel Core processors are foundational to Intel’s journey in enabling uncompromising and workload-optimized PC platforms with performance leadership across all vectors of computing. In addition to performance and responsiveness gains, AI, graphics, connectivity and I/O are optimized on the SoC for a solution that delivers a feature-rich suite of capabilities for OEMs to create laptops for people to watch, game and create more.

Intelligent performance: 10th Gen Intel Core processors are the first purpose-built processors for AI on thin-and-light laptops and 2 in 1s. They deliver the intelligent performance needed for modern AI-infused applications, with a suite of features and capabilities:

Intel® Deep Learning Boost, a new, dedicated instruction set that accelerates neural networks on the CPU for maximum responsiveness in scenarios such as automatic image enhancements, photo indexing and photorealistic effects.

Up to 1 teraflop of GPU engine compute for sustained, high-throughput inference applications like video stylization, analytics and real-time video resolution upscaling.

Intel® Gaussian & Neural Accelerator (GNA) delivers a dedicated engine for background workloads such as voice processing and noise suppression at ultra-low power, for maximum battery life.

All-new graphics for stunning entertainment: With double the graphics performance2, 10th Gen Intel Core processors with Intel Iris Plus graphics make a reality gaming in 1080p and higher-level content creation, like 4K video editing, quick application of video filters and high-resolution photo processing on the go. Plus:

These are the first GPUs from Intel to support VESA’s Adaptive Sync* display standard, which enables a smoother gaming experience across games like Dirt Rally 2.0* and Fortnite*.

Based on Intel’s Gen11 graphics architecture, they are also the industry’s first integrated GPU to incorporate variable rate shading for improved rendering performance.

With support for the BT.2020* specification, watch 4K HDR video in a billion colors.

Best connectivity: Increased board integration3 helps PC manufacturers innovate on form factor for sleeker designs with Intel Wi-Fi 6 (Gig+) connectivity and up to four Thunderbolt 3 ports — the fastest and most versatile USB-C connector available4.

Product Line-up:

[table][tr][td][/td] [td]Processor Number[/td] [td]Graphics[/td] [td]Cores / Threads[/td] [td]Graphics (EUs)[/td] [td]Cache[/td] [td]Nominal TDP/ ConfigUP TDP[/td] [td]Base Freq (GHz)[/td] [td]Max Single Core Turbo (GHz)[/td] [td]Max All Core Turbo (GHz)[/td] [td]Graphics Max Freq (MHz)[/td] [td]Intel® DL Boost /Intel® GNA[/td] [/tr] [tr][td]U-Series[/td] [td]Intel® Core™ i7-1068G7[/td] [td]Intel® Iris® Plus[/td] [td]4/8[/td] [td]64[/td] [td]8MB[/td] [td]28W[/td] [td]2.3[/td] [td]4.1[/td] [td]3.6[/td] [td]1.10[/td] [td]√[/td] [/tr] [tr][td][/td] [td]Intel® Core™ i7-1065G7[/td] [td]Intel® Iris® Plus[/td] [td]4/8[/td] [td]64[/td] [td]8MB[/td] [td]15W/25W[/td] [td]1.3[/td] [td]3.9[/td] [td]3.5[/td] [td]1.10[/td] [td]√[/td] [/tr] [tr][td][/td] [td]Intel® Core™ i5-1035G7[/td] [td]Intel® Iris® Plus[/td] [td]4/8[/td] [td]64[/td] [td]6MB[/td] [td]15W/25W[/td] [td]1.2[/td] [td]3.7[/td] [td]3.3[/td] [td]1.05[/td] [td]√[/td] [/tr] [tr][td][/td] [td]Intel® Core™ i5-1035G4[/td] [td]Intel® Iris® Plus[/td] [td]4/8[/td] [td]48[/td] [td]6MB[/td] [td]15W/25W[/td] [td]1.1[/td] [td]3.7[/td] [td]3.3[/td] [td]1.05[/td] [td]√[/td] [/tr] [tr][td][/td] [td]Intel® Core™ i5-1035G1[/td] [td]Intel® UHD Graphics[/td] [td]4/8[/td] [td]32[/td] [td]6MB[/td] [td]15W/25W[/td] [td]1.0[/td] [td]3.6[/td] [td]3.3[/td] [td]1.05[/td] [td]√[/td] [/tr] [tr][td][/td] [td]Intel® Core™ i3-1005G1[/td] [td]Intel® UHD Graphics[/td] [td]2/4[/td] [td]32[/td] [td]4MB[/td] [td]15W/25W[/td] [td]1.2[/td] [td]3.4[/td] [td]3.4[/td] [td]0.90[/td] [td]√[/td] [/tr] [tr][td]Y-Series[/td] [td]Intel® Core™ i7-1060G7[/td] [td]Intel® Iris® Plus[/td] [td]4/8[/td] [td]64[/td] [td]8MB[/td] [td]9W/12W[/td] [td]1.0[/td] [td]3.8[/td] [td]3.4[/td] [td]1.10[/td] [td]√[/td] [/tr] [tr][td][/td] [td]Intel® Core™ i5-1030G7[/td] [td]Intel® Iris® Plus[/td] [td]4/8[/td] [td]64[/td] [td]6MB[/td] [td]9W/12W[/td] [td]0.8[/td] [td]3.5[/td] [td]3.2[/td] [td]1.05[/td] [td]√[/td] [/tr] [tr][td][/td] [td]Intel® Core™ i5-1030G4[/td] [td]Intel® Iris® Plus[/td] [td]4/8[/td] [td]48[/td] [td]6MB[/td] [td]9W/12W[/td] [td]0.7[/td] [td]3.5[/td] [td]3.2[/td] [td]1.05[/td] [td]√[/td] [/tr] [tr][td][/td] [td]Intel® Core™ i3-1000G4[/td] [td]Intel® Iris® Plus[/td] [td]2/4[/td] [td]48[/td] [td]4MB[/td] [td]9W/12W[/td] [td]1.1[/td] [td]3.2[/td] [td]3.2[/td] [td]0.90[/td] [td]√[/td] [/tr] [tr][td][/td] [td]Intel® Core™ i3-1000G1[/td] [td]Intel® UHD Graphics[/td] [td]2/4[/td] [td]32[/td] [td]4MB[/td] [td]9W/12W[/td] [td]1.1[/td] [td]3.2[/td] [td]3.2[/td] [td]0.90[/td] [td]√[/td] [/tr] [/table]

All with integrated Intel® Wi-Fi 6 (Gig+) and Thunderbolt™ 3

Intel is also introducing a new processor number naming structure starting with this first set of 10th Gen Intel Core processors. Read more about Intel processor numbers.

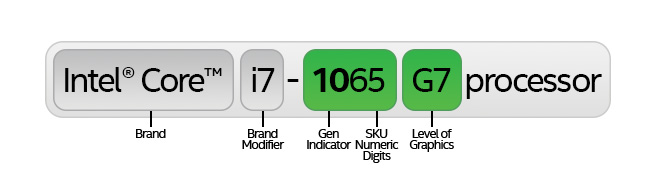

10th Gen Intel Core processors, code-named “Ice Lake,” are represented by a new processor naming structure indicating generation and the level of graphics performance.

What’s Next: The processors, code-named “Ice Lake,” are the first to debut in the 10th Gen Intel Core processor family and will be available in new designs from PC manufacturers for the holiday season. This year at Computex, Intel previewed some of the first systems expected to arrive and on track for verification through the innovation program code-named “Project Athena,” including Acer Swift 5*, Dell XPS 13 2-in-1*, HP Envy 13”* and Lenovo S940*.

Today’s announcement is just the beginning. Addressing the increasing diversity of modern computing needs, Intel will announce additional products in the 10th Gen Intel Core mobile processor family. The upcoming processors will deliver increased productivity and performance scaling for demanding, multithreaded workloads, including the flagship built-for-business Intel® vPro™ platform. Expect to hear more details this month.

More Context: 10th Gen Press Kit | 10th Gen Intel Core Product Brief | 10th Gen Intel Core Press Deck
Click to expand...

Source: https://newsroom.intel.com/news/inte...p-experiences/

Tweet

— Twitter API (@user) View on Twiiter[/quote]

Tweet

— Twitter API (@user) View on Twiiter
Click to expand...
