Windows 10: making windows recognise a battery. DIY laptop build

hello. im trying make a laptop. im able to get the battery to work, but i dont know how to make windows recognise the battery. so at the moment i have to use a sperate circuit to check how full the battery is while using it.


i want to be able to use these features from windows laptops:

1. make battery settings available within windows.

2. limit power usage/change power plan when charger is unplugged.

3. shut down the system when battery gets too low.

4. prevent windows updates from starting if battery is too low to avoid bricking the system.

5. make a battery indicator appear showing the current charge, and whether it is charging.


even if you dont know how id do this, could you please recommend a good place to look for information? im not sure where to go to learn this stuff.

any help is appreciated.


thanks for reading.

:)



laptop battery wont charge after latest update

1. Shutdown your laptop.

2. Remove the battery.

3. Connect the AC power adapter to your laptop.

4. Power on the laptop

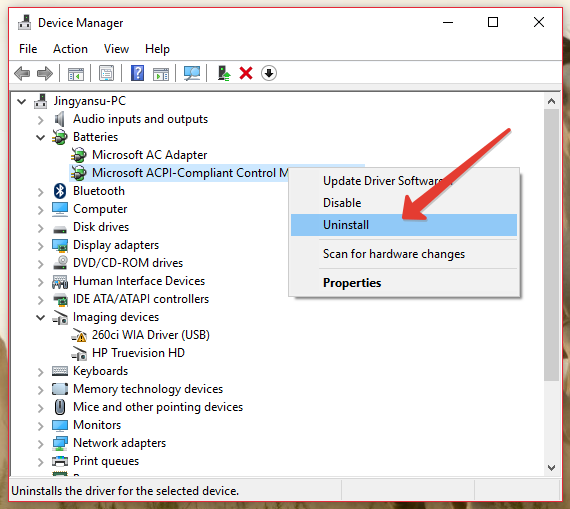

5. Open the Device Manager by typing Devmgmt.msc into Start Menu or from Control Panel.

6. Under the Batteries category, right-click all of the Microsoft ACPI Compliant Control Method Battery listings, and select Uninstall (it’s okay if you only have 1).

7. Shutdown the laptop.

8. Insert the battery.

9. Power on the laptop.

If above suggestions wont resolve the battery charge issue then follow below steps.




Step 2

1. Shutdown the laptop.

2. Remove the battery.

3. Start the laptop with only AC adapter connected to laptop.

4. When you login to Windows OS connect the battery while Windows OS working.



Battery Won't Charge Fully

Make sure to install all Windows important updates.

Install latest versions of your laptop device drivers you can download the latest device drivers from the device manufacturer or from your laptop manufacturer website.


Step 1

1. Shutdown your laptop.

2. Remove the battery.

3. Connect the AC power adapter to your laptop.

4. Power on the laptop

5. Open the Device Manager by typing Devmgmt.msc into Start Menu or from Control Panel.

6. Under the Batteries category, right-click all of the Microsoft ACPI Compliant Control Method Battery listings, and select Uninstall (it’s ok if you only have 1).





7. Shutdown the laptop.

8. Insert the battery.

9. Power on the laptop.

If above suggestions wont resolve the battery charge issue then follow below steps.




Step 2

1. Shutdown the laptop.

2. Remove the battery.

3. Start the laptop with only AC adapter connected to laptop.

4. When you login to Windows OS connect the battery while Windows OS working.





Step 3

Reset the System Management Controller. Use one of these methods to reset the SMC, which controls battery management, battery status light.

1. Shut down the computer and disconnect the power cord.

2. Remove the battery.

3. Press and hold the power button for ten seconds.

4. Reattach the battery and AC power adapter, then start up the laptop.


Hopefully one of the above suggestions will help you resolve the battery not charging problem. If battery still doesn't charge, you may need to replace your battery.



Laptop Battery

I have an old Acer Travelmate 270 which works pretty dam well (extra 512mb ram), but my issue is that the battery does not seem to like windows. It will work in windows fine, until I loose power from the battery. The problem is that the inbuilt windows icon that sits on my task bar shows the laptop as being on mains power even when it is running soley off the battery. The only indication that the battery is charged comes from the little status light. Please help as I always loose power when I least expect it, or even want it. *Bang Head :banghead:

Thanks

Edit: In Power Options, it recognises that I use a laptop, as it has the option of what to do when I close the lid on my portable computer (laptop). This is really confusing me now, as it recognises that I have a laptop, just doesnt not seem to acnowlage that it is either capebal or even has a battery. *Frown
