Windows 10: My audio output device shows in Device Manage but not in System/Sound or in Control Panel...

How do I troubleshoot this?

:)



Disabling Audio input/output (Microphone/Speaker/etc) in Device Manager does not disable device in Sound Control Panel or stop audio...oh my!

In Windows 10 (1803 build 17134.228), I open both "Device Manager" (devmgmt.msc) and the "Sound Control Panel" (mmsys.cpl).

Both Device Manager and the Sound Control Panel show the same audio input/output devices.

ex: "Speakers" and "Microphone".

This is good!

In Device Manager, I disable "Speakers", which continues to show up and has an icon showing it is disabled.

In Sound Control Panel, "Speakers" still shows up and *is not disabled*!

When I play a sound through the [disabled in Device Manager] Speakers, I can still hear the audio!

This is horrible!

In Device Manager, I re-enable "Speakers".

In Sound Control Panel, I disable "Speakers".

In Device Manager, "Speakers" disappears as an Audio output device.

Audio correctly cannot be heard.

This is good!

In summary:

1. Why does disabling "Speakers" in "Device Manager" not stop audio coming out of them?
2. What does disabling "Speakers" in "Device Manager" actually do?
3. Why is disabling Speakers in Device Manager different than disabling Speakers in Sound Control Panel?

Now for the real meat: I am trying to disable/enable the Audio input/output device...

...the way that the Sound Control Panel does...

...but programmatically (PowerShell, C#, C...whatever works).

There are many of examples of how to disable/enable a device that involve "devcon.exe disable/enable", "Get-PnpDevice | Disable/Enable-PnpDevice", and "Get-Device | Disable/Enable-Device".

All of these result in the device being disabled in the Device Manager, and exhibiting the above undesirable behavior; the audio devices still show up in Sound Control Panel and are usable.

I also have tried the Registry hack (HKLM\SOFTWARE\Microsoft\Windows\CurrentVersion\MMDevices\Audio\Capture\{GUID} DeviceState=1 or 10000001), but that seems to be a cosmetic hack only and doesn't actually force close any open devices or prevent new opens.

So I'll add another question:

1. How can I programmatically disable/enable and audio device to have the same effect as doing it in Sound Control Panel?

And no; UI automation of the Sound Control Panel is not an acceptable answer.

I am looking for an actual API that can be called in the background, not a horrible UI hack that requires being in the foreground.

Thanks!

Pv



No audio device found but there is in Control Panel

Hello,

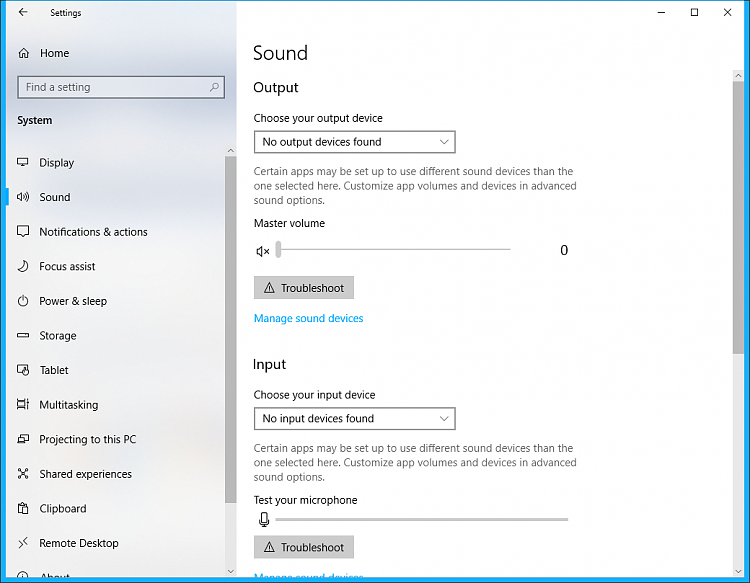

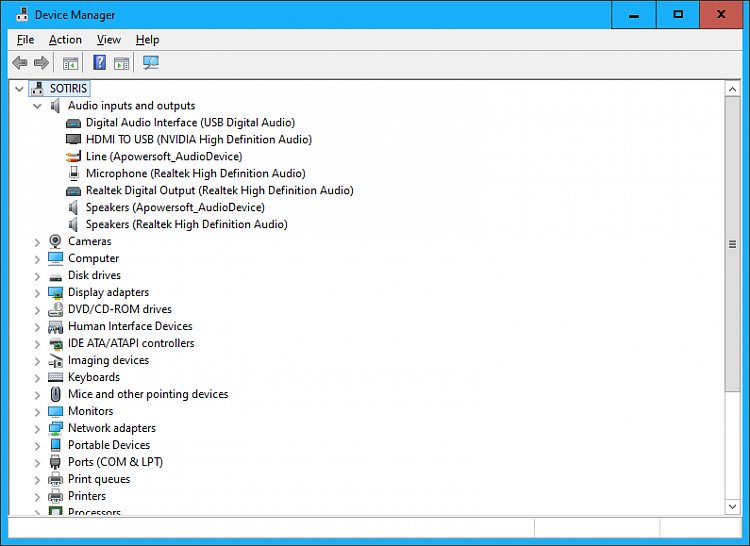

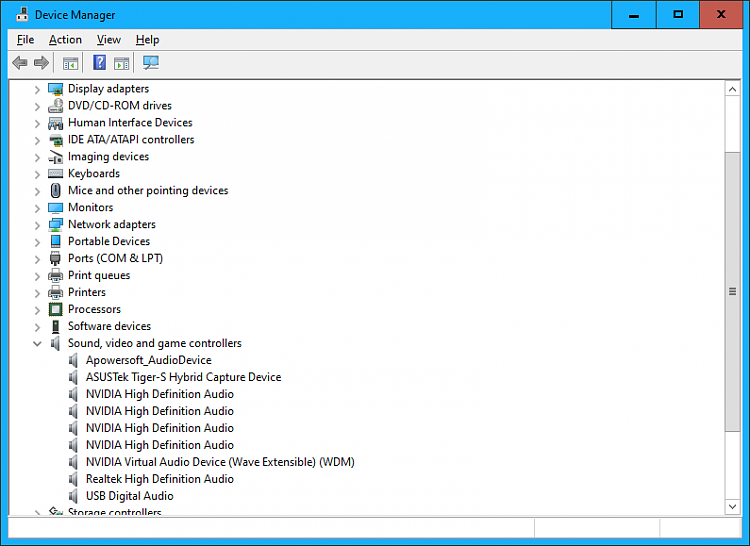

I have a strange issue at my main system (see my specs). The taskbar icon for sound is the speaker with the red X and it reports that no input or output audio device is found. Running the troubleshooter finds no problems. In Device Manager the sound card and all audio inputs/outputs are there without any exclamation mark. What is going on? How can I make the sound card work again? I tried to restart the Windows Audio service, nothing changed. I even tried to reinstall the Realtek HD audio driver, nothing changed. Any ideas about this weird issue?

Thank you in advance.



No audio output device is installed

A screenshot of the Device Manager, Sounds section is still needed. Can't really offer a suggestion until I see what is showing there now.

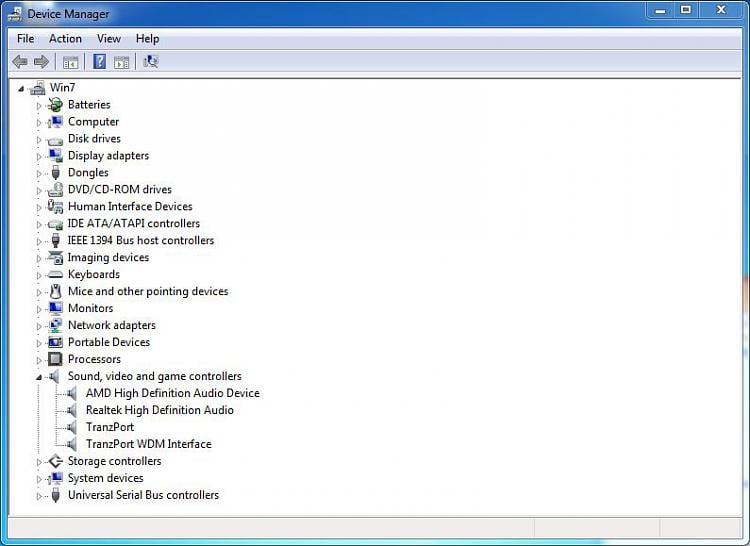

e.g this is mine It shows AMD which the audio for HDMI, Realtek and Tranzport which is a wireless controller for my recording studio program.
