Windows 10: My configure button is grayed out on my Realtek Digital Output.

Discus and support My configure button is grayed out on my Realtek Digital Output. in Windows 10 Software and Apps to solve the problem; My configure button is grayed out on my Realtek Digital Output. I still have just 2 channels instead of 5.1 - DTS or ATMOS. See screenshot in... Discussion in 'Windows 10 Software and Apps' started by Michal Korený, Apr 11, 2025.

  1. MICHAL KORENý
    Michal Korený Win User

    My configure button is grayed out on my Realtek Digital Output.


    My configure button is grayed out on my Realtek Digital Output. I still have just 2 channels instead of 5.1 - DTS or ATMOS. See screenshot in attachment. Why?

    :)

    Michal Korený, Apr 11, 2025
    #1
  2. IMACKEN
    imacken Win User

    Can't configure Realtek Digital Output

    Thanks Ken, but there is nothing to configure in the Realtek HD Audio manager.

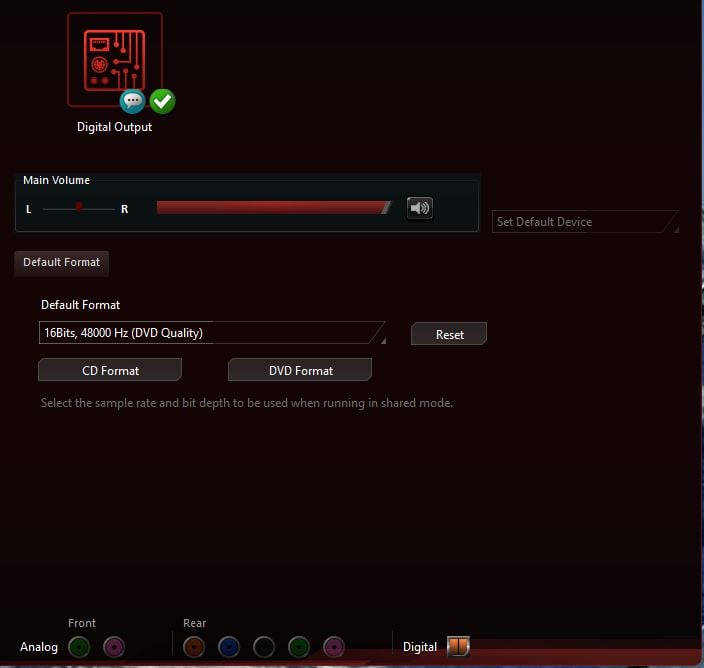

    My configure button is grayed out on my Realtek Digital Output. 201032d1535315312t-cant-configure-realtek-digital-output-sound.jpg

    imacken, Apr 11, 2025
    #2
  3. CALEDON KEN
    Caledon Ken Win User
    Can't configure Realtek Digital Output

    Strange, mine has a little gear upper right. When I select option I get this.

    Mine has mute rear when headphone plugged in.

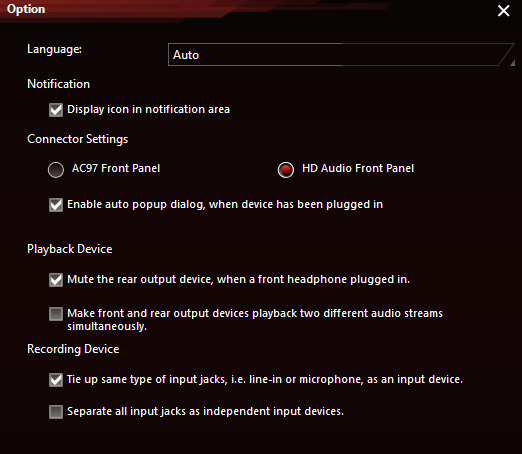

    My configure button is grayed out on my Realtek Digital Output. 201089d1535374120t-cant-configure-realtek-digital-output-image.png

    Caledon Ken, Apr 11, 2025
    #3
  4. IMACKEN
    imacken Win User

    My configure button is grayed out on my Realtek Digital Output.

    Can't configure Realtek Digital Output

    I have a Realtek onboard audio device connected via optical to my Yamaha receiver. The receiver's built-in 5 channel test works fine.
    I just noticed that if I do a 5.1 channel test on my computer, I am getting no sound from my surround speakers. Left and right surround come from the front left and right.
    Looking at the Sound control panel, I am unable to configure the Realtek device as the option is greyed out.
    However, if I go to Supported Formats and test DD or DTS, they work OK. Is this normal?

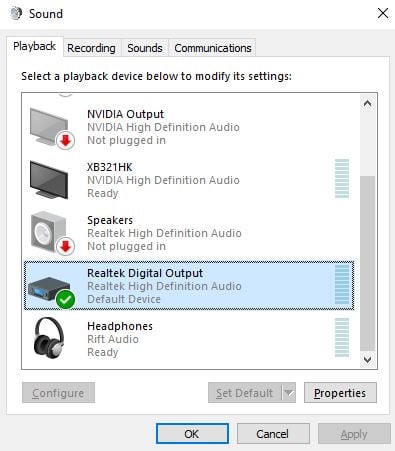

    My configure button is grayed out on my Realtek Digital Output. 200827d1535210054t-cant-configure-realtek-digital-output-sound.jpg

    imacken, Apr 11, 2025
    #4
