Windows 10: my laptop is not charging even though its plugged in to the laptop and the wall with the...

I checked 10 or more times to see if it was plugged in properly and securely and it was. its plugged in and it still isnt charging.this is what it looks like when its plugged in

:)



HP G72 laptop charging cord plug issues

Laptop chargers have two wires that connect to the charger itself (the "brick"). One wire connects from the charger to the computer and the other connects from the wall outlet ("mains power") to the charger.

On many chargers, including the one for the HP G72, the wire that plugs into the wall outlet can be disconnected from the charger, but the wire that connects from the charger to the computer is permanently connected to the charger. The reason that the wire
to the wall outlet disconnects is so that the same charger unit can be sold with a wire and plug that is appropriate for different wall outlets in different countries.

I think you left some words out of your sentence.

• Does one of the wires not stay connected? If so, which one?

• Or do the "solid white light" and the "orange charging light" not stay lit when everything is connected?

• Does "replaced cord" mean that you bought a complete new charger (which comes with the two wires described above) or you only purchased the wire that goes between the wall outlet and the charger?

Regardless of what you bought, it sounds as if you need a new charger. Plug a lamp into a wall outlet to confirm that the wall outlet has power. Then remove the laptop's battery and connect the charger to both the wall outlet and the laptop. If the laptop
does not turn on, you need a new charger.

If it's the latter, and the battery does not charge nor does the laptop get power even when all the wires are plugged in to their respective connections, then you need a new charger.

It's possible, but far less likely, that the charger is OK but the circuitry inside the computer is damaged. The only way to determine if the charger is OK (aside from the test described above) is to measure the output voltage with a test meter.

When buying a replacement charger, you need to look for 3 things (see the pictures here
http://tinyurl.com/y7a6ptrj):

1. The connector tip (the part that physically connects to the computer). This must be the same size and shape as the original charger's connector. Most after market chargers that claim compatibility with your specific model will almost certainly at least
have the correct connector tip.

2. The charger's output voltage. This is shown on the label on the charger. The standard charger for your laptop has an output voltage of 18.5 volts

3. The charger's output current. This is shown on the label on the charger. The standard charger for your laptop has an output current of 3.5 amperes.

The charge should also indicate "watts" which is its power rating. The standard charger is 65 watts.

A "heavy duty" charger is also permissible for your computer. This is 90 watts with an output voltage of 19 volts and an output current of 4.74 amperes.



Lenova G400s laptop-Plugged in and not Charging- Issues reg.

I have a Lenova G400s Laptop. While charging my laptop shown "Plugged in and not Charging" I gone through the web and I tried the following steps i found in net

Please try below steps and check if it helps.

• Disconnect AC adapter.
• Remove battery.
• Connect AC Adapter.
• Power on the laptop.

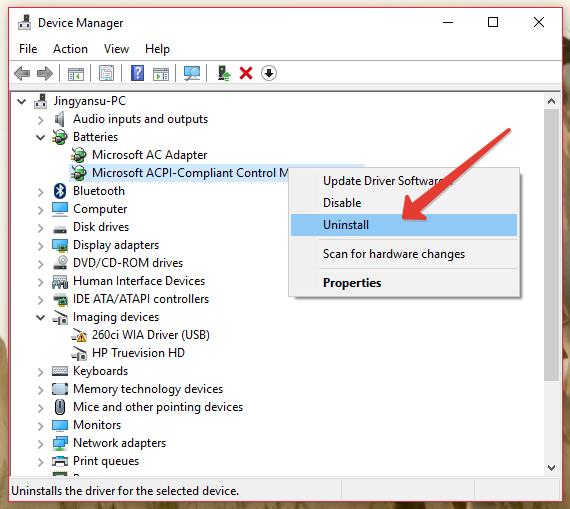

• Press Windows + X and select
  Device Manager.
• Under the Batteries category, right-click all instances of
  Microsoft ACPI Compliant Control Method Battery , and select
  Uninstall.
• Shutdown.
• Disconnect AC adapter.
• Insert battery.
• Connect AC adapter.
• Power on the laptop.
• still the problem not solve, it shows "plugged in and not Charging".. Pl guide me to solve the issues



Plugged in but battery does not charge

If the laptop works without the battery then charger is functioning correctly. Take a cloth with a bit of rubbing alcohol on it (or some on-the-go alcohol swabs), and clean the metal contacts that connect your battery to your laptop.

Make sure to install all Windows important updates.

Install latest versions of your laptop device drivers you can download the latest device drivers from the device manufacturer or from your laptop manufacturer website.


Step 1

1. Shutdown your laptop.

2. Remove the battery.

3. Connect the AC power adapter to your laptop.

4. Power on the laptop

5. Open the Device Manager by typing Devmgmt.msc into Start Menu or from Control Panel.

6. Under the Batteries category, right-click all of the Microsoft ACPI Compliant Control Method Battery listings, and select Uninstall (it’s ok if you only have 1).





7. Shutdown the laptop.

8. Insert the battery.

9. Power on the laptop.

If above suggestions wont resolve the battery charge issue then follow below steps.




Step 2

1. Shutdown the laptop.

2. Remove the battery.

3. Start the laptop with only AC adapter connected to laptop.

4. When you login to Windows OS connect the battery while Windows OS working.





Step 3

Reset the System Management Controller. Use one of these methods to reset the SMC, which controls battery management, battery status light.

1. Shut down the computer and disconnect the power cord.

2. Remove the battery.

3. Press and hold the power button for ten seconds.

4. Reattach the battery and AC power adapter, then start up the laptop.


Hopefully one of the above suggestions will help you resolve the battery not charging problem. If battery still doesn't charge, you may need to replace your battery.
