Windows 10: my Surface USB 3.0 Network Adapter is out of fuctioning.... including a captured window

FinalSS · May 7, 2019

I used to use this adapter on my Asus Notebook (it has no Wifi 5G built-in) and I am happy with this setup.

Today I found this adapter is not function on all USB ports on notebook.

Then, I connect it to my PC.

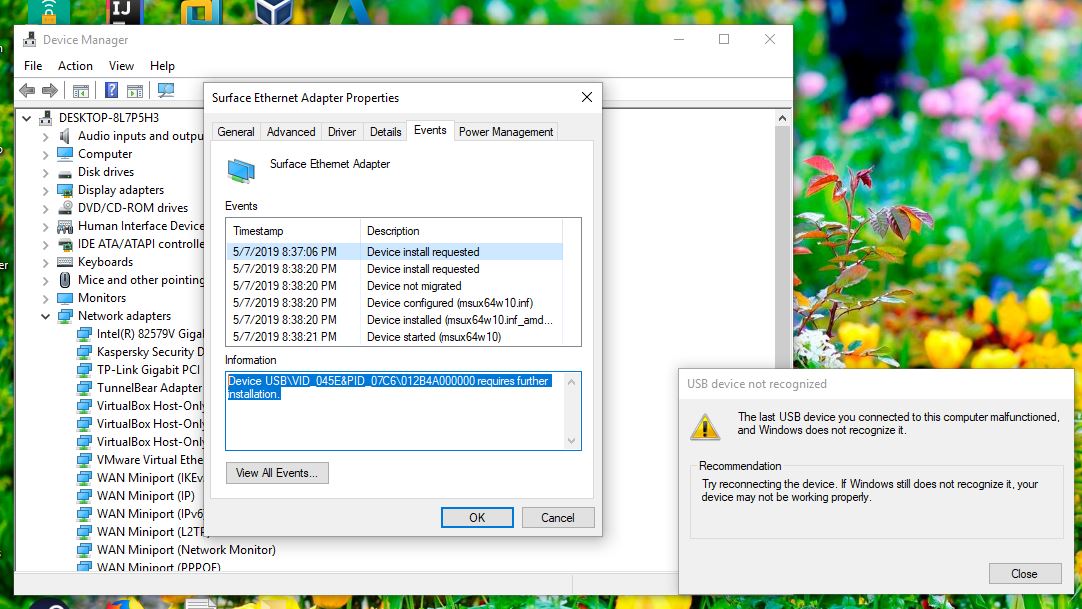

After several mins, it pops a dialog. So I dig into device manager and found "Surface Network Adapter" and its info as below captured windows.

:)

Brink · May 7, 2019

Boot Surface Laptop to USB - no Volume button

Hello Jimmy,

This doesn't list the "Surface Laptop", but you might give it a try to see.

*Arrow Boot Microsoft Surface from a USB device

Surface Studio, Surface Book, Surface Pro 4, Surface 3, or Surface Pro 3 with a configured boot order in UEFI

Step 1: Shut down your Surface.
Step 2: Insert the bootable USB drive into the USB port on your Surface.
Step 3: Press the power button to turn it on.
Step 4: Follow the on-screen instructions to boot from your USB drive.
Click to expand...

Otherwise, you should be able to use OPTION ONE below to boot from the USB from advanced startup.

*Arrow Boot from USB Drive on Windows 10 PC Windows 10 Installation Upgrade Tutorials

Brink · May 7, 2019

Surface Connect to USB-C Adapter for Surface Pro and Surface Laptop

Today we are pleased to announce that the Surface Connect to USB-C adapter is now available in commercial channels and through the Microsoft Store Business Desk in the United States, Canada, Australia, New Zealand, and the United Kingdom. Add USB-C capability to Surface Laptop or the newest Surface Pro with this convenient adapter that supports USB-C docking solutions and USB-C power supplies.1 Enable compatibility with open workspaces and universal docks to empower your users to work when and where they need with their Surface devices.

Find out more information on the Surface Connect to USB-C Adapter on the Surface Pro for Business page.

1 Display output and data throughput capabilities are dependent on the USB-C docking solution used. Requires external power source with a minimum power output of 27W and 12V.

Support for the Surface Connect to USB-C Adapter requires the installation of an update for the Surface System Aggregator Module prior to connecting the adapter to your Surface Pro or Surface Laptop device.

Surface Laptop:

The Surface System Aggregator Module update for Surface Laptop was previously made available on 15 May 2018. If your Surface Laptop is up-to-date with Windows Update or you have installed the 15 May 2018 update from the Microsoft Download Center, your Surface Connect to USB-C Adapter will work with your device out-of-the-box and no further action is required. If your device does not yet have this required update, please run Windows Update to update your device or install the latest drivers for Surface Laptop from the Microsoft Download Center.

The specific driver required for Surface Laptop devices to support the Surface Connect to USB-C Adapter is:

Surface System Aggregator v135.2139.257.0

Surface Pro (Model 1796):

The Surface System Aggregator Module update for Surface Pro (Model 1796) has not previously been made available and is now available via the Microsoft Download Center. To support the Surface Connect for USB-C Adapter on your Surface Pro device, you must download and install one of the following packages from the Surface Pro drivers and firmware page of the Microsoft Download Center:

SurfacePro_USB-C_WiFi_Win10_16299_1804507_3.msi

The specific driver required for Surface Pro devices to support the Surface Connect to USB-C Adapter is:

Surface System Aggregator v234.2237.257.0

Note: At this time, the Surface Connect to USB-C Adapter is supported only on Surface Pro (Model 1796) models. Support for Surface Pro with LTE Advanced (Model 1807) will be available shortly.

Technical specifications for Surface Connect to USB-C Adapter

[table][tr]Dimensions [td]Adapter Body: 82mm x 40mm x 20mm; Overall length including Surface Connect Cable: 284mm[/td] Weight [td]90g[/td] [/tr] [tr]Compatibility [td]The newest Surface Pro (models 1796 and 1807) and Surface Laptop (Model 1769)[/td] Power requirement [td]External power source with minimum power output of 27W and 12V[/td] [/tr] [tr]Cable [td]Surface Connect[/td] Ports [td]1 x USB-C[/td] [/tr] [tr]Operating System [td]Windows 10 version 1703 and above[/td] Warranty [td]1-year limited warranty[/td] [/tr] [/table]

Click to expand...

Source: Announcing availability of the Surface Connect to USB-C Adapter for Surface Pro and Surface Laptop Surface

Cyberius · May 7, 2019

Surface Pro 3 - no network in 10158

I upgraded my Surface Pro 3 to build 10158 today, and I have no network. Under device manager, they are installed properly. I have tried using the Microsoft USB adapter, and the device shows as installed, but under Network Connections, no adapter is visible - no wireless, USB, or dock adapter.

Any advice is appreciated!!

Windows 10: my Surface USB 3.0 Network Adapter is out of fuctioning.... including a captured window

my Surface USB 3.0 Network Adapter is out of fuctioning.... including a captured window

my Surface USB 3.0 Network Adapter is out of fuctioning.... including a captured window

my Surface USB 3.0 Network Adapter is out of fuctioning.... including a captured window

my Surface USB 3.0 Network Adapter is out of fuctioning.... including a captured window - Similar Threads - Surface USB Network

Surface Laptop 3 and Qualcomm Atheros QCA61x4A Wireless Network Adapter issues

Surface Laptop 3 and Qualcomm Atheros QCA61x4A Wireless Network Adapter issues

Surface Laptop 3 and Qualcomm Atheros QCA61x4A Wireless Network Adapter issues

Microsoft surface 3 usb?

Microsoft surface 3 usb?

USB Network adapter

USB 3 not working on my Surface 4 Pro

eSATA to USB 3 adapter?

Surface Pro 3 - no network in 10158
