Windows 10: My wired smart tv does not appear on my win 10 pc. It apperas on my router and I can ping...

My wired smart tv does not appear on my win 10 pc. It appears on my router and I can ping it from my pc but it won't show as a network device

:)



Connect a desktop pc to a Samsung smart tv

I'm trying to connect a older Desktop pc with Window 10 to my Samsung f8000 smart tv via wifi or LAN. My desktop pc is ethernet cabled to the Sky home hub and the smart tv ethernet cabled to the hub as well. My smart tv appears in the connected devices
list but it doesn't seem to connecting, is it because I need a wireless dongle??



Connect Windows 10 PC to Smart TV

Multimedia files can be projected/played on a Smart TV from a Windows 10 PC by the following methods:

1. Casting (Media Streaming): Send media from a device to play on another device in real time.

2. Mirroring (Screen Projection): The media displayed on the screen of a device is replicated on the display screen of another device in real time. In essence, the video-out port of the sender device is connected
to the video-in port of the receiver device.

3. DLNA (Media Sharing): Media is streamed from a server device on request from a client device which plays the streamed media in real time.

1. Casting: This is the easiest method to play a multimedia from a PC on to a Smart TV called Smart as they have an Operating System. However file formats supported for casting are limited to MP4, WMV, AVI, MOV
for video and MP3, WMA, WAV for audio. The audio system of the TV can either be built-in or externally connected to a Hi-fi system.

The Cast setup requires that (i) the PC and the Smart TV are connected to the same Home WiFi network (ii) Network discovery And File sharing are enabled on your currently active network profile (Private / Public) through Control
Panel > Networking and Sharing Centre > Change advanced sharing settings (on left panel).

Just as networking needs to be configured on the PC, similarly networking has to be configured on the Smart TV through the Settings menu, to either establish a peer-to-peer dedicated communication path Or inter-connect by hooking
up to a common access point. As with any operating system, a network once created on a Smart TV, persists as the default network until a new network is created.

To play a video, Open File Explorer on the PC, right click on the video file and from the shortcut menu choose Cast to Device > Smart TV (name). It may take some time for the PC to search for the TV on the network before displaying
its name on the shortcut menu.

Select the TV name on the shortcut menu and the media will automatically start playing on the TV, with the Cast Window for media control appearing on the PC. You can use the PC for other work by minimising the Cast Window while
the media continue to play on the TV.

Once a TV is successfully linked to a PC, the TV-name gets registered in the Devices list under Windows Settings and the TV-name will be readily available thereafter in the Cast to Device menu.

On Windows 10, Casting is the simplest and most formidable choice for playing multimedia files from PC to any TV where a simple WiFi networking is the only requirement.

2. Mirroring / Screen Projection:
Screen Mirroring allows the PC to project its Screen to a Smart TV just like using an overhead projector. Miracast must be available on the PC for wireless screen projection. Windows installs Miracast only on a capable hardware. To determine Miracast support,
press Windows Key + P on the PC keyboard to open the Project action bar (Charms Menu) which must contain the link "Connect to a wireless display" at the bottom. Miracast is not available on the PC if the link is not seen on the action bar.

The Screen Projection setup requires that (i) Miracast is available on the PC and supported on the TV (ii) the PC and the Smart TV are connected to the same Home WiFi network (iii) Mirroring is enabled on the Smart TV (iv) the Signal source for the TV is set
to the Mirroring port. Even then a wireless connection to the TV may not be possible as it depends on the TV's Mirror function to support Windows Wireless Display protocol over Miracast.

There are two definite ways to establish Screen Mirroring if Miracast in not available on the PC Or not supported by the TV. One is the Wired method of connection by a HDMI cable between the HDMI port of PC and the HDMI port of
TV, provided the TV and the PC are in close proximity. Set the Signal source for the TV to the HDMI port where the cable is attached. Press Windows Key + P on the PC keyboard to invoke the Project action bar / Charms menu and choose the Duplicate option to
simultaneously display the PC screen on to the TV.

The second method is a proprietary WiFi Direct connection that requires a Microsoft Wireless Display Adapter to be connected to the HDMI port of the TV. The USB end of the adapter must connect to an USB port - preferably the one
on the TV set, to draw power. The adapter serves to establish a peer-to-peer WiFi Direct connection between the TV and PC without the need of a Router as an access point. Set the Signal source for the TV to the HDMI port where the adapter is attached. Press
Windows Key + P on the PC keyboard to invoke the Project action bar / Charms menu and choose the adapter name to start mirroring the PC screen on to the TV. If the adapter name is not found on the Project action bar, ensure that you add the adapter within
Devices of Windows Settings.

Unlike Casting, Screen Mirroring allows any type of file that displays on the PC screen to be projected on to the TV, be it a text document or a movie played from the DVD drive.

Mirroring requires dedicated utilisation of the network resources for data transmission between the PC and the TV and therefore the network cannot be used for any other purpose like accessing the internet.

3. DLNA: DLNA (Digital Living Networking Alliance) is the older standard for interoperability of digital multimedia devices. All participating devices must be DLNA certified to establish a network connection. Windows
10 is DLNA certified and you have to ensure that DLNA is available on the Smart TV.

The DLNA network between a PC and a Smart TV can be set up through a wired Ethernet connection or a wireless WiFi connection. The DLNA framework for communication is constituted by the Windows 10 Library Folders of the user which
is configured by design to be the Digital Media Server (DMS) for sourcing the media files. The TV acts a Digital Media Controller (DMC) for being able to access the media files from the DMS (PC), And as a Digital Media Player (DMP) capable of decoding the
content for playing, And also as a Digital Media Renderer (DMR) to display the decoded contents on its screen.

DLNA services has to be explicitly enabled on a Windows 10 PC by opening the Control Panel > Networking and Sharing Centre > Media streaming options (on the left panel) > Turn on media streaming (button).

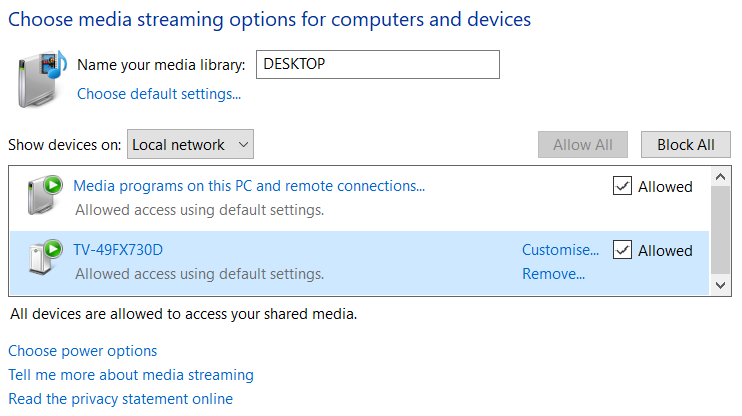

On the media steaming options window (screenshot above), enter a name for the user's library folders on the PC and allow access to the TV-name appearing under the devices list on the Local network.

If the TV-name does not appear, first ensure that both the TV and PC are connected to the same local network. Then use the Cast to Device menu on any MP4 file to register the TV-name within the Devices list of Windows Settings and also to show up on the Media
streaming options window.

Once enabled, DLNA services will automatically start everytime the PC is powered ON. To disable DLNA you need to open the Services applet by calling Run dialog (WinKey+R) and then entering services.msc in the dialog > scroll down
on the Services applet and double click on "Windows Media Player Network Sharing Service" to open its Properties window > Stop the Service by clicking on the Stop button > change the Startup type to "Manual" from the drop-down > click OK and close the Services
applet.

The DLNA network can be implemented in one of the following ways:

(i) Wired: A direct connection by an Ethernet Cross-Cable between the LAN (RJ-45) port of PC and the LAN (RJ-45) port of TV.

(ii) Wired: The PC and the TV connects to a Router by a normal Ethernet cable.

(iii) Wireless: The PC and the TV connects to a Router through WiFi.

(iv) Wireless: The PC connects to the TV via WiFi Direct Display dongle attached to the TV.

The direct Ethernet cross-cable connection is the most reliable and simplest method. The WiFi connection although simple can cause latency issues during DLNA operation.

Once the PC and TV establish a network path for mutual communication, the TV will automatically identify the PC as a DLNA server. If everything goes right, the PC-name will appear on the Device / Port list of the TV, generally
accessible from its Home Screen.

Finally, the PC has to be chosen as the signal source for the TV from the input port list or the connected device list of the TV. The Windows 10 Library folders will display on the TV screen from which a media file can be selected for playing on the TV.

The Digital Media Player (DMP) module within the TV must provide native support to the media file format for playing on the TV, and this DMP which is built specific to every TV model defines all the types of media it can support.

Regards,



Windows 10 Issue Connecting to Samsung Smart TV

My Samsung TV (UA37D5000PR) bought in Dubai (2012) is wired to the Wi-Fi router and I can successfully play media from my laptop (Samsung All Share or via Smart View) but am unable to project my laptop screen from My Lenovo Flex14 (WIndows10)
laptop. Pls suggest

My TV firmware is also upto date as per the prompt on TV
