Windows 10: New era of spatial computing brings challenges and solutions to VR VR-Holo

Brink · Oct 21, 2019

Virtual reality (VR) has continually pushed the boundaries of how we perceive, from its early days of Ivan Sutherland’s Sword of Damocles to today. With the technology emerging from its early stages of bulky equipment tethered to one place out of necessity, researchers now are working with increased possibilities derived from hardware and new input sensors. The result is a unique set of challenges requiring innovative approaches to answering some of the most prevalent questions as far as what VR is capable of, where VR can happen, and how humans are able to experience it.

There have been major advances recently in creating new, immersive environments that enable anything from exploring new places outside the limitations of a single room to increasing accessibility for all, and Microsoft researchers continue to make technologies that expand and enhance the world of spatial computing. This week, they’re presenting their latest and fanciest in New Orleans at the ACM Symposium on User Interface Software and Technology (UIST) 2019.

Researchers will be showing off a method for allowing people to safely navigate a given route in real-world environments, such as a daily walk to work, while seeing themselves strolling a different VR world, such as a city of their choosing. They’ve also developed a technology that leverages newly introduced eye-tracking of users so that visual details in VR can be changed in real time without those changes being detected. Finally, researchers have invented a new haptic feedback controller that uniquely emulates the human sense of touch by meshing centuries-old and cutting-edge technologies.

DreamWalker is a VR system that allows users to walk from one place to another in the real world (A) while experiencing a completely different place, such as a crowded city, in VR (B). The technology uses path planning (C) to identify a VR path that best aligns with the real-world path, accounting for any known obstacles in the real-world with corrections in the VR world. Obstacles discovered en route are managed by real-time sensing technologies.

DreamWalker: From your door to workplace by way of Manhattan

What if you could explore the streets of a faraway place you’ve always wanted to go while walking to work? What if stepping into a place you’ve always wanted to see was as simple as stepping out your front door? In “DreamWalker: Substituting Real-World Walking Experiences with a Virtual Reality,” Stanford University PhD student Jackie Yang, a Microsoft Research intern at the time of the work, and Microsoft researchers Eyal Ofek, Andy Wilson, and Christian Holz, who is now an ETH Zürich professor, have created a VR system that allows you to walk from one place to another in the real world while experiencing a completely different place in VR. The system adapts to a chosen route, making it possible to transform a walk to the grocery store or to a bus stop, say, into a walk through Times Square in VR.

A precursor project, VRoamer, enabled playing a VR game inside an uncontrolled indoor environment. DreamWalker takes the technology another step, merging the constraints of the virtual city tour and the actual path the user will travel in the real world, which may differ, while handling the complex difficulties of an uncontrolled outdoor environment. To accomplish this task, the technology first plans users’ paths in the virtual world and then uses real-time environment detection, walking redirection, and virtual world updates once users have embarked on their journeys.

Prior to the start of the walk, path planning finds a path in the virtual world that will minimize differences with the real-world path. It will also identify any potential corrections needed in the virtual world so that the user doesn’t collide with any known objects in the real world. Differences between the real path and the chosen virtual tour will be corrected by gradual redirection while users walk and also by introducing virtual scenarios that will force users to correct their own paths, such as road blocks.

During the walk, DreamWalker monitors users’ environments using a variety of sensing technology— inside-out tracking via a Windows Mixed Reality-provided relative position trace, a dual band GPS sensor, and two RGB depth cameras—to detect obstacles discovered along the way.

Discovered obstacles that may move or appear in users’ paths are managed by introducing moving virtual obstacles, or characters, such as pedestrians walking near users, to block them from any potential danger. Other options for controlling users’ paths may include pets and dynamic events such as vehicles being parked, moving carts and more, limited only by the imagination of the experience creator. The real-time environment detection technology provides guidance for the creation of this additional virtual content with great care taken to generate these virtual obstacles outside users’ field of view to avoid any unnatural “popping up” of objects in the virtual world. Thanks to recent advances, the technology can actually do so with the help of users’ gaze. Enter Mise-Unseen.

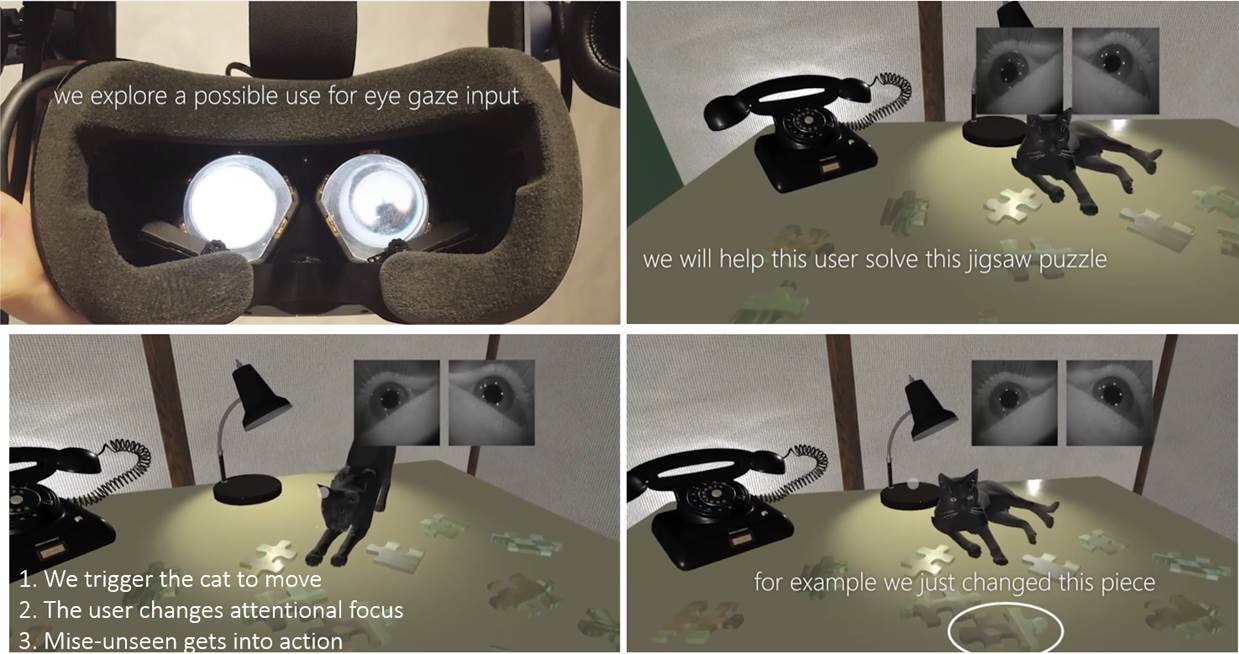

Mise-Unseen uses eye-tracking in VR headsets to hide changes that occur inside the user’s field of view by applying them when the user’s attention is diverted elsewhere. In this example, it unnoticeably changes the scene as the user is focusing on a movement from the cat, facing pieces together to help the user solve this puzzle.

Mise-Unseen: Taking advantage of users’ gaze and attention to enhance the VR experience

In “Mise-Unseen: Using Eye-Tracking to Hide Virtual Reality Scene Changes in Plain Sight,” University of Potsdam PhD student Sebastian Marwecki, a Microsoft Research intern at the time of the work, and researchers Andy Wilson, Eyal Ofek, Mar Gonzalez Franco, and Christian Holz introduce technology that allows covert changes to be made to a VR environment while a user’s gaze and attention are fixed on something else. They call this technology Mise-Unseen in homage to the French term mise en scène, which is used in film and theater to describe the scenery and staging of what an audience sees. In film and theater, the field of view is controlled by a director, so the audience sees what the director wants them to see. The audience cannot see the camera or lighting riggings, for instance, and that is by design.

In VR, however, users are controlling their own field of view, so some changes to the scene need to be done discreetly within their peripheral vision. Mise-Unseen uses eye-tracking to identify where users are focusing their attention and then employs a perception model to recommend where changes to the environment can be made without users noticing those changes. For example, a painting in a virtual art gallery can be changed to better reflect users’ tastes while they’re looking elsewhere in the room. “This [technology] is all based on the idea that gaze and attention are linked; wherever you are gazing goes your attention, and that means you are not paying attention to other parts,” says Senior Researcher Mar Gonzalez Franco.

Another application is the ability to assess user understanding. While playing a game, a person might need to solve a puzzle to obtain a code that allows them to move forward. However, there is a chance that the person could guess the code without having solved, or even having looked at, the puzzle. With this technology, if a player hasn’t looked at certain areas of the puzzle before entering the code, the code and puzzle could be visually changed in real time so that the player needs to go back and attempt to solve the puzzle.

Other applications of Mise-Unseen include support for passive haptics, individualized content (like the painting example above), and adaptive difficulty. Another exciting aspect of this technology is its ability to reduce the field of view in VR in a way that alleviates motion sickness for those who experience it. Lastly, this technology allows valuable computing resources to be conserved when rendering visual objects—knowing where a user is looking allows the system to better disperse its resources.

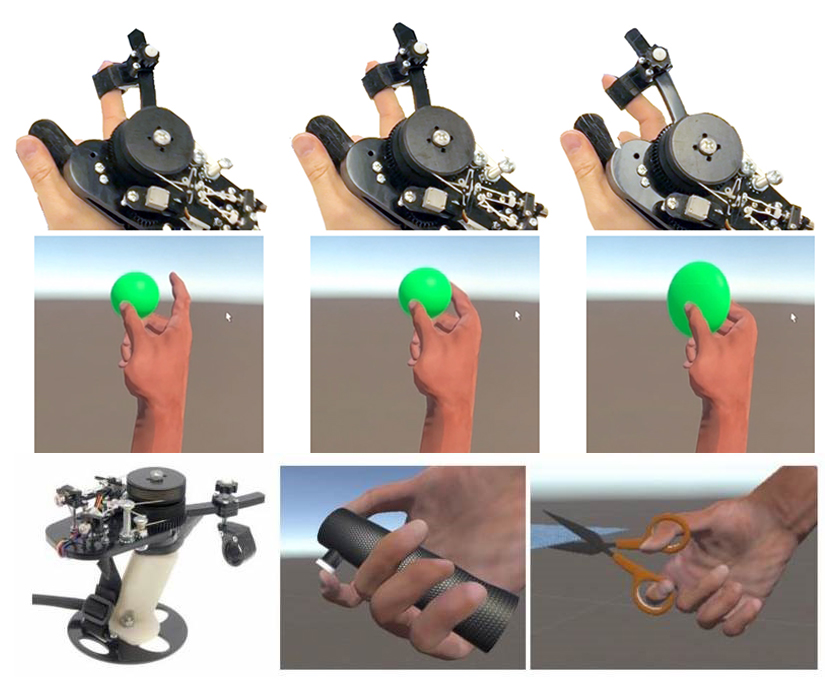

The haptic controller CapstanCrunch supports human-scale forces during touch and grasp and can resist the user’s grasp force up to 20 newtons. The friction-based capstan brake mechanism magnifies the force of the controller’s small motor, resulting in an integrated, palm-grounded controller design for interaction. The controller can replicate complex haptic events exhibiting variable stiffness and compliance.

CapstanCrunch: A palm-grounded haptic controller that, much like judo, enlists user-supplied force

Imagine grasping for a virtual ball. You reach out to grab the ball in the VR system, but how do you know you’ve got it if you can’t feel it against your hand? That’s where haptic controllers come into play—they provide the sensation associated with touching an object in real life when you come into contact with it in a virtual world. A major challenge for such controllers, though, has been producing realistic feelings consistent with the strong forces applied by the human hand while keeping the handheld devices small and light.

In their paper “CapstanCrunch: A Haptic VR Controller with User-supplied Force Feedback,” researchers Mike Sinclair, Eyal Ofek, Mar Gonzalez Franco, and Christian Holz introduce a new haptic controller called CapstanCrunch. While CapstanCrunch may appear outwardly similar to past prototypes such as the CLAW, the magic of the new technology lies inside the controller: a linear and directional brake that can sustain human-scale forces and is light, energy efficient, and robust.

A key component of the brake—and the inspiration behind the controller’s name—is the capstan, a centuries-old mechanical device originally used to control ropes on sailing ships. “It’s an old technology that people used to tie boats, but we use it in a different way that right now enables us to multiply the force of a small internal motor,” says Eyal Ofek, a Senior Researcher.

Past efforts to design haptic controllers used large motors to resist the strong forces applied by the human hand, yet these expensive, heavy, and energy-hungry motors can break when too great a force is applied, making the device too expensive and not robust enough to be used in consumer scenarios. The capstan magnifies an input force by around a factor of 40, which allows the use of small, cheap, and energy-efficient motors while insulating them from external world forces.

CapstanCrunch leverages this technology to give fine-grain haptic feedback. Similar to an important tenet in the martial arts practice judo, the CapstanCrunch mechanism uniquely feeds off users’ own human force and friction to maximize efficiency and minimize effort needed from the motor to provide feedback. In addition to consuming low amounts of energy, CapstanCrunch is low cost, robust, safe, quiet, and fast when compared with its predecessors.

Check out the work

If you’re attending UIST 2019, Mise-Unseen will be presented on Tuesday, Oct. 22, at 2 p.m. Eastern time as will CapstanCrunch. DreamWalker will be presented at 2 p.m. the next day. The papers are among several from Microsoft researchers. For information on those works, visit Microsoft at UIST 2019.
Click to expand...

Source: https://www.microsoft.com/en-us/rese...lutions-to-vr/

Tweet

— Twitter API (@user) View on Twiiter
Click to expand...

:)

Andrei Maraklov · Oct 21, 2019

Windows 10 and Oculus / VR Headsets

Will Windows 10 have proper support for VR Devices, so that you can look at your desktop or a 2D Non-Stereo Application without going cross-eyed ?

I can imagine that Microsoft is passing that buck to Oculus, and Quite Possibly Occulus to Microsoft. But the bottom line exists that dealing with a VR Headset is a Headache in Windows 7, and even so in Windows 8.1, with Holo-Lens on the horizon, and Oculus
Streaming from XBoxOne it's time for Microsoft to step up and bring their OS into the future.

Brink · Oct 21, 2019

New VirtualLink Standard for Connecting Next-Generation VR Headsets VR-Holo

A new industry consortium led by NVIDIA, Oculus, Valve, AMD, and Microsoft today introduced the VirtualLink™ specification -- an open industry standard that enables next-generation VR headsets to connect with PCs and other devices using a single, high-bandwidth USB Type-C™ connector, instead of a range of cords and connectors.

This new connection, an Alternate Mode of USB-C, simplifies and speeds up VR setup time, avoiding key obstacles to VR adoption. It also brings immersive VR experiences to smaller devices with fewer ports, such as thin and light notebooks.

To fulfill the promise of next-generation VR, headsets will need to deliver increased display resolution and incorporate high-bandwidth cameras for tracking and augmented reality. VirtualLink connects with VR headsets to simultaneously deliver four high-speed HBR3 DisplayPort lanes, which are scalable for future needs; a USB3.1 data channel for supporting high-resolution cameras and sensors; and up to 27 watts of power.

Unlike other connectivity alternatives, VirtualLink is purpose-built for VR. It optimizes for the latency and bandwidth demands that will enable headset and PC makers to deliver the next generation of VR experiences.

The consortium also announced the publication of an advance overview of the VirtualLink specification, available to companies that wish to receive details ahead of the upcoming VirtualLink 1.0 specification. Details are available at www.VirtualLink.org.
Click to expand...

Read more: New Open Industry Standard Introduced for Connecting Next-Generation VR Headsets to PCs, Other Devices | NVIDIA Newsroom

Brink · Oct 21, 2019

Mozilla Bringing Firefox Reality to HoloLens 2 VR-Holo

We are excited to announce that we’re working together with Microsoft to bring the immersive web to one of the most-anticipated mixed reality headsets in the market: HoloLens 2. Building on Microsoft’s years of experience with the current HoloLens, we will work together to learn from developers and users about bringing AR content to the web.

Our Mixed Reality program at Mozilla is focused on bringing the best browsers, services, and tools for developers to ensure that users have a safe, private experience with open, accessible technology. Alongside our desktop and standalone VR browser efforts, this prototype of Firefox Reality for HoloLens 2 will ensure that the immersive web works for all users, regardless of device they are on.

In the coming months, we will be working with the Rust community to bring the language and runtime that enable us to deliver a more secure experience to the HoloLens platforms. And we will then build on our previous work on AR headsets to bring our next generation web platform, Servo, to the HoloLens 2 when it is available this summer.

Please watch this space for new builds of the browser or get involved in our projects if you’re eager to help move the needle today.
Click to expand...

Source: Bringing Firefox Reality to HoloLens 2

See also: Microsoft announces HoloLens 2 at MWC19 VR/Holo - Windows 10 Forums
